                                                                              • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • GE IC660BSM021 Bus Switching Module







                                                                                                                                                              Product Overview

                                                                                                                                                              The GE IC660BSM021 is a Genius I/O Bus Switching Module (BSM) used in the GE Fanuc Genius I/O system. It is designed to connect field I/O blocks to dual redundant communication buses (Bus A and Bus B), ensuring continuous operation even if one bus fails.

                                                                                                                                                              It is a key component in redundant industrial control networks, widely used in manufacturing, power plants, and process automation systems.

                                                                                                                                                              ---

                                                                                                                                                              Key Specifications

                                                                                                                                                              • Brand: GE Fanuc (GE Industrial / Emerson legacy)
                                                                                                                                                              • Model: IC660BSM021
                                                                                                                                                              • Series: Genius I/O System
                                                                                                                                                              • Type: Bus Switching Module (BSM)
                                                                                                                                                              • Power Supply: 24 / 48 VDC
                                                                                                                                                              • Voltage Range: approx. 18–56 VDC
                                                                                                                                                              • Function: Switches between Bus A and Bus B communication lines
                                                                                                                                                              • I/O Capacity: Supports up to 8 Genius I/O blocks per module
                                                                                                                                                              • System Expansion: Multiple BSMs can support up to ~30 I/O blocks
                                                                                                                                                              • Switching Time: < 20 ms typical
                                                                                                                                                              • Control Method: CPU or handheld monitor controlled switching
                                                                                                                                                              • Redundancy: Dual-bus failover support (automatic switching on communication loss)

                                                                                                                                                              ---

                                                                                                                                                              Working Principle

                                                                                                                                                              The IC660BSM021 acts like a traffic switch for industrial communication buses:

                                                                                                                                                              • Normally connects I/O blocks to Bus A
                                                                                                                                                              • If Bus A fails → automatically switches to Bus B
                                                                                                                                                              • Controlled by CPU logic or manual command
                                                                                                                                                              • LED indicator shows active bus status

                                                                                                                                                              This ensures zero-downtime communication redundancy in critical systems.

                                                                                                                                                              ---

                                                                                                                                                              Advantages & Features

                                                                                                                                                              • High reliability dual-bus redundancy system
                                                                                                                                                              • Fast switching (<20 ms) to avoid process interruption
                                                                                                                                                              • Supports CPU redundancy when paired with dual controllers
                                                                                                                                                              • Simple installation on Genius I/O block system
                                                                                                                                                              • Stable operation in harsh industrial environments
                                                                                                                                                              • Proven GE industrial automation design

                                                                                                                                                              ---

                                                                                                                                                              Applications

                                                                                                                                                              • Power generation systems
                                                                                                                                                              • Oil & gas processing plants
                                                                                                                                                              • Manufacturing automation lines
                                                                                                                                                              • Chemical and process industries
                                                                                                                                                              • Large-scale distributed I/O control systems
                                                                                                                                                              • Redundant PLC/industrial network architectures

                                                                                                                                                              ---

                                                                                                                                                              Precautions

                                                                                                                                                              • Must be installed in GE Genius I/O system only
                                                                                                                                                              • Requires correct Bus A / Bus B wiring configuration
                                                                                                                                                              • Incorrect grounding may cause communication instability
                                                                                                                                                              • Do not mix incompatible Genius I/O generations
                                                                                                                                                              • Ensure correct voltage (24/48 VDC system type)
                                                                                                                                                              • System configuration should be done via PLC/CPU engineering tools

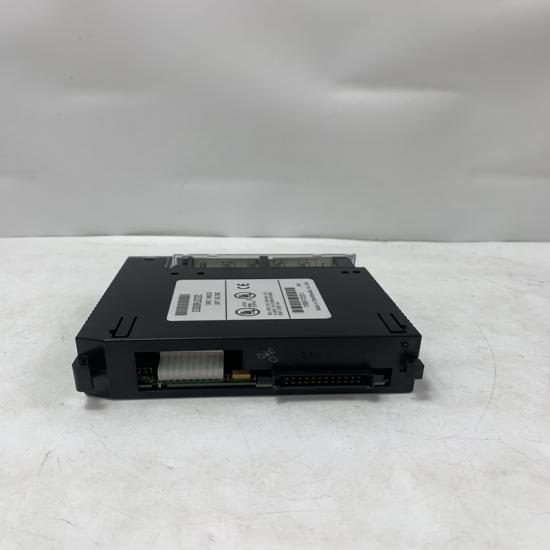

The structure and details of the product：
