GE IC660BBA024 I O Module

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

                                                                              • • • • • • • • • • • • • • • • • • • • • • • • • • • GE IC660BBA024 I/O Module (Genius Analog Current Source I/O Block)





                                                                                                                                    The GE IC660BBA024 is a Genius Analog Current Source I/O Block designed for the GE Fanuc Genius I/O system. It provides four 4–20 mA analog inputs and two 4–20 mA analog outputs, enabling reliable communication between PLC controllers and field instruments such as transmitters, control valves, and other analog process devices.

                                                                                                                                    ---

                                                                                                                                    Basic Information

                                                                                                                                    • Part Number: IC660BBA024
                                                                                                                                    • Brand: GE Fanuc / GE
                                                                                                                                    • Series: Genius I/O
                                                                                                                                    • Type: Analog I/O Module (Current Source I/O Block)
                                                                                                                                    • Function: Interfaces analog field devices with PLC and distributed control systems

                                                                                                                                    ---

                                                                                                                                    Technical Specifications

                                                                                                                                    • Power Supply: 24/48 VDC (operating range: 18–56 VDC)
                                                                                                                                    • Analog Inputs: 4 channels (4–20 mA)
                                                                                                                                    • Analog Outputs: 2 channels (4–20 mA)
                                                                                                                                    • Input Accuracy: ±0.1% of full scale
                                                                                                                                    • Output Accuracy: ±0.15% of full scale
                                                                                                                                    • Input Resolution: 1 μA
                                                                                                                                    • Output Resolution: 6 μA
                                                                                                                                    • Block-to-Block Isolation: 1500 V
                                                                                                                                    • Heat Dissipation: 12 W
                                                                                                                                    • Operating Temperature: 0°C to +60°C
                                                                                                                                    • Configuration: Software configurable
                                                                                                                                    • Diagnostics: Built-in self-diagnostics and status LEDs

                                                                                                                                    ---

                                                                                                                                    Key Features

                                                                                                                                    • Four isolated 4–20 mA analog input channels
                                                                                                                                    • Two precision 4–20 mA analog output channels
                                                                                                                                    • Built-in 24V loop power for input circuits
                                                                                                                                    • High-accuracy analog signal conversion
                                                                                                                                    • Excellent electrical isolation and noise immunity
                                                                                                                                    • Software-configurable scaling and diagnostics
                                                                                                                                    • Reliable operation in demanding industrial environments

                                                                                                                                    ---

                                                                                                                                    Application Areas

                                                                                                                                    • Industrial automation systems
                                                                                                                                    • PLC and distributed I/O systems
                                                                                                                                    • Process control applications
                                                                                                                                    • Oil and gas facilities
                                                                                                                                    • Petrochemical plants
                                                                                                                                    • Power generation
                                                                                                                                    • Water and wastewater treatment
                                                                                                                                    • Manufacturing automation

                                                                                                                                    ---

                                                                                                                                    Advantages

                                                                                                                                    • High-precision analog signal acquisition and output
                                                                                                                                    • Independent isolated channels improve system reliability
                                                                                                                                    • Built-in diagnostics simplify troubleshooting
                                                                                                                                    • Supports direct connection to standard 4–20 mA field instruments
                                                                                                                                    • Rugged industrial design for continuous operation
                                                                                                                                    • Easy integration with GE Genius I/O networks

                                                                                                                                    ---

                                                                                                                                    Precautions

                                                                                                                                    • Verify the supply voltage is within the specified operating range before installation.
                                                                                                                                    • Use shielded cables for analog signals to minimize electrical noise.
                                                                                                                                    • Ensure proper grounding to maintain measurement accuracy.
                                                                                                                                    • Avoid exceeding the rated current range of the input and output channels.
                                                                                                                                    • Install and configure the module according to GE Genius I/O system guidelines.

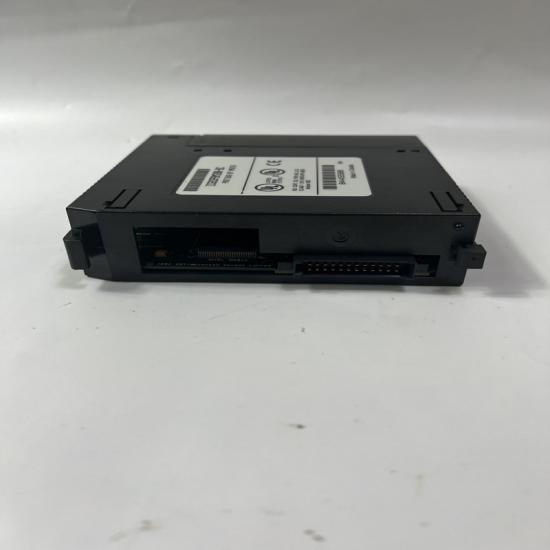

The structure and details of the product：
