GE IC210DAR020 Analog Output Module

•

  • GE IC210DAR020

    Correction: It’s a Durus 20 Controller (not an analog output module)

    Manufacturer: GE Fanuc (Emerson)



    Model: IC210DAR020 (Durus 20 Series)



    Type: Integrated PLC Controller (12×AC Input / 8×Relay Output)

    Specifications

    • Power Supply: 85–265 VAC / 85–265 VDC, 50/60 Hz
    • I/O Points: 20 total (12×AC inputs, 8×relay outputs)
    • Relay Rating: 240 VAC, 8 A per channel
    • Processor: Integrated 8-bit CPU
    • Memory: 8 KB program, 2 KB data
    • Display & Keypad: Built-in LCD + 6-key keypad for local programming
    • Expansion: Up to 7 I/O expansion modules + 1 communication module
    • Communication: RS-485 (Modbus RTU slave)
    • Mounting: DIN rail (horizontal)
    • Operating Temp: 0 °C to +55 °C
    • Certifications: CE, RoHS
    • Dimensions: 120 × 80 × 45 mm
    • Weight: ~350 g

    Key Features

    • All-in-One Controller: Combines PLC, power supply, and operator interface
    • Wide-Range Power: Accepts 85–265 VAC/VDC for global use
    • Relay Outputs: 8 A relays for direct control of motors, valves, and heaters
    • Local Operation: LCD/keypad for programming and monitoring without a PC
    • Expandable: Add I/O and comms modules for system growth
    • Cost-Effective: Ideal for small machines, panels, and OEM applications

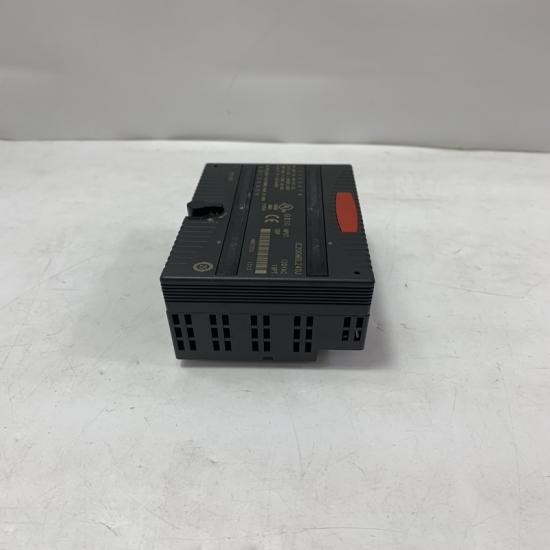

The structure and details of the product：
