GE IC200ALG620 Analog Input Module

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

                                                                              • • • • GE IC200ALG620 Analog Input Module (VersaMax RTD Input Module)

                                                                                      The GE IC200ALG620 is a VersaMax Analog Input Module designed for RTD (Resistance Temperature Detector) temperature measurement in GE VersaMax PLC systems. It provides high-accuracy temperature and resistance signal acquisition for industrial process monitoring and control.

                                                                                      ---

                                                                                      Key Specifications

                                                                                      • Model: IC200ALG620
                                                                                      • Brand: GE Fanuc / Emerson
                                                                                      • Series: VersaMax
                                                                                      • Product Type: Analog Input Module
                                                                                      • Input Channels: 4 RTD/Resistance Inputs
                                                                                      • Resolution: 16-bit
                                                                                      • Supported RTD Types:
                                                                                        • Platinum: 25Ω, 100Ω, 1000Ω
                                                                                        • Copper: 10Ω, 50Ω, 100Ω
                                                                                        • Nickel: 100Ω, 120Ω
                                                                                        • Nickel/Iron: 604Ω
                                                                                      • Wiring Support:
                                                                                        • 3-wire RTD
                                                                                        • 4-wire RTD
                                                                                      • Resistance Measurement Ranges:
                                                                                        • 0–500 Ω
                                                                                        • 0–3000 Ω
                                                                                      • Update Rate:
                                                                                        • Approx. 210 ms/channel @ 60 Hz
                                                                                        • Approx. 230 ms/channel @ 50 Hz
                                                                                      • Backplane Current Consumption:
                                                                                        • 125 mA @ 5 VDC
                                                                                        • 125 mA @ 3.3 VDC

                                                                                      ---

                                                                                      Features & Advantages

                                                                                      • High-precision 16-bit temperature acquisition
                                                                                      • Supports multiple RTD sensor types
                                                                                      • Compatible with both 3-wire and 4-wire RTDs
                                                                                      • Built-in fault diagnostics:
                                                                                        • Open circuit detection
                                                                                        • Short circuit detection
                                                                                        • Over-range / under-range alarms
                                                                                      • Automatic calibration capability
                                                                                      • Excellent noise immunity for industrial environments
                                                                                      • Seamless integration with VersaMax PLC systems

                                                                                      ---

                                                                                      Applications

                                                                                      • Industrial temperature monitoring
                                                                                      • Process control systems
                                                                                      • Chemical plants
                                                                                      • Water treatment facilities
                                                                                      • Food and beverage processing
                                                                                      • HVAC systems
                                                                                      • Power generation plants
                                                                                      • Manufacturing automation

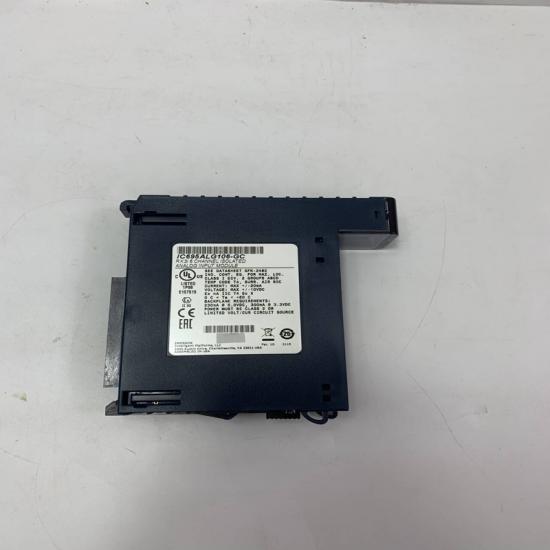

The structure and details of the product：
