                                                                                                                                                                                                                                                                                                  • GE IC200ALG264J Analog Input Module

                                                                                                                                                                                                                                                                                                    Product Description

                                                                                                                                                                                                                                                                                                    GE IC200ALG264J is a VersaMax Analog Input Module manufactured by GE Fanuc / GE Intelligent Platforms (now Emerson Automation). It is designed to collect analog current signals from industrial field devices and convert them into digital values for PLC processing.

                                                                                                                                                                                                                                                                                                    The module provides 15 single-ended analog input channels and supports 0–20 mA / 4–20 mA current signals with 15-bit resolution, making it suitable for industrial measurement and process control applications.

                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                    Specifications

                                                                                                                                                                                                                                                                                                    • Brand: GE Fanuc / Emerson
                                                                                                                                                                                                                                                                                                    • Model: IC200ALG264J
                                                                                                                                                                                                                                                                                                    • Product Type: Analog Input Module
                                                                                                                                                                                                                                                                                                    • Series: VersaMax I/O
                                                                                                                                                                                                                                                                                                    • Input Type: Analog Current Input
                                                                                                                                                                                                                                                                                                    • Input Channels: 15 channels (single-ended)
                                                                                                                                                                                                                                                                                                    • Signal Range:
                                                                                                                                                                                                                                                                                                      • 0–20 mA
                                                                                                                                                                                                                                                                                                      • 4–20 mA
                                                                                                                                                                                                                                                                                                    • Resolution: 15 bit
                                                                                                                                                                                                                                                                                                    • Conversion Resolution:
                                                                                                                                                                                                                                                                                                      • 4–20 mA: 0.5 μA / count
                                                                                                                                                                                                                                                                                                      • 0–20 mA: 0.625 μA / count
                                                                                                                                                                                                                                                                                                    • Update Rate: 7.5 ms maximum
                                                                                                                                                                                                                                                                                                    • Accuracy:
                                                                                                                                                                                                                                                                                                      • ±0.3% typical full scale
                                                                                                                                                                                                                                                                                                      • ±0.5% maximum at 25°C
                                                                                                                                                                                                                                                                                                    • Input Impedance: Approx. 100 Ω
                                                                                                                                                                                                                                                                                                    • Filter Response: 24 Hz ±20%
                                                                                                                                                                                                                                                                                                    • Power Supply: Internal backplane power
                                                                                                                                                                                                                                                                                                    • Backplane Current Consumption: 100 mA max @ 5VDC
                                                                                                                                                                                                                                                                                                    • Mounting: VersaMax carrier/base
                                                                                                                                                                                                                                                                                                    • LED Indicators: OK status indicator

                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                    Functions

                                                                                                                                                                                                                                                                                                    • Receives analog current signals from field instruments
                                                                                                                                                                                                                                                                                                    • Converts analog signals into PLC-readable digital data
                                                                                                                                                                                                                                                                                                    • Provides measurement feedback for automation control
                                                                                                                                                                                                                                                                                                    • Supports connection of transmitters, sensors, and process instruments
                                                                                                                                                                                                                                                                                                    • Transfers analog data through VersaMax backplane communication



                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                    Advantages & Features

                                                                                                                                                                                                                                                                                                    • High-resolution 15-bit analog conversion
                                                                                                                                                                                                                                                                                                    • Supports standard industrial 4–20mA signals
                                                                                                                                                                                                                                                                                                    • 15-channel high-density input design
                                                                                                                                                                                                                                                                                                    • Fast 7.5 ms update speed
                                                                                                                                                                                                                                                                                                    • Compact VersaMax modular structure
                                                                                                                                                                                                                                                                                                    • Suitable for distributed I/O applications
                                                                                                                                                                                                                                                                                                    • Reliable signal acquisition for industrial environments

                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                    Applications

                                                                                                                                                                                                                                                                                                    • Process control systems
                                                                                                                                                                                                                                                                                                    • Pressure and temperature monitoring
                                                                                                                                                                                                                                                                                                    • Flow and level measurement
                                                                                                                                                                                                                                                                                                    • Factory automation equipment
                                                                                                                                                                                                                                                                                                    • Chemical and power industry control systems
                                                                                                                                                                                                                                                                                                    • Industrial sensor data acquisition

                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                    Notes

                                                                                                                                                                                                                                                                                                    • IC200ALG264J is an analog input module, not a CPU or power supply module
                                                                                                                                                                                                                                                                                                    • Requires compatible GE VersaMax PLC / NIU system
                                                                                                                                                                                                                                                                                                    • Confirm current input range (0–20mA or 4–20mA) before configuration
                                                                                                                                                                                                                                                                                                    • Check field transmitter wiring method before installation
                                                                                                                                                                                                                                                                                                    • Use shielded cable for low-noise analog signal transmission

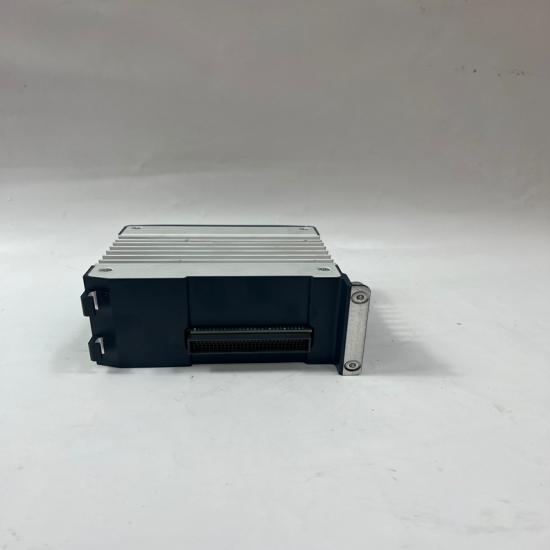

The structure and details of the product：
