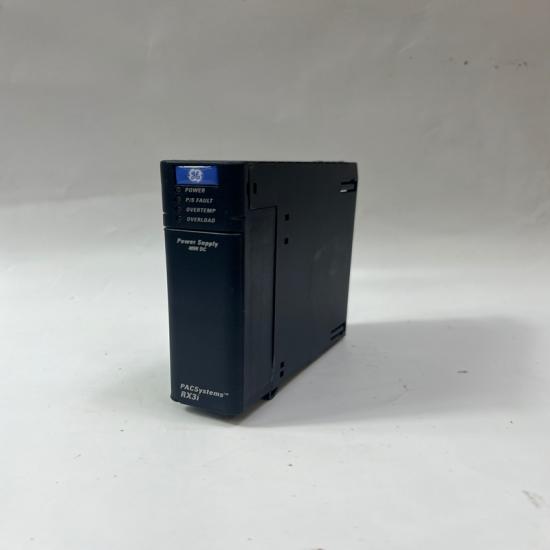

GE Fanuc IC695PSD140D Multi-Purpose Power Supply Module

• Voltage Output: It supports dual isolated outputs. One output is 24V DC with a rated output current of up to 5A, which can supply power to main control units, sensors, and other devices. The other output is 5V DC with a rated output current of 10A, suitable for I/O modules with high requirements for voltage stability, ensuring that different devices can obtain precisely matched power.​

• Voltage Regulation Performance: It has a high-precision voltage regulation function. When the input voltage fluctuates, the output voltage ripple is extremely small. The ripple of the 24V DC output is ≤150mV, and the ripple of the 5V DC output is ≤50mV, effectively reducing the impact of voltage fluctuations on devices and ensuring stable device operation.​

• Overcurrent Protection: It is equipped with an overcurrent protection circuit. When the output current exceeds the rated value, it can automatically cut off the power output in an extremely short time, preventing device damage caused by overcurrent and protecting the safety of the circuit and devices.​

• Overvoltage Protection: It monitors the output voltage in real-time. Once an overvoltage condition is detected, it immediately activates protective measures to limit the output voltage within a safe range, avoiding irreversible damage to devices caused by overvoltage.​

• Short-circuit Protection: It has a fast short-circuit response capability. When a short-circuit fault occurs, it can instantly cut off the power supply, preventing the short-circuit current from damaging the power supply module and connected devices, and enhancing system reliability.​

• Efficient Conversion: Using advanced switching power supply technology, the power conversion efficiency is over 88%, effectively reducing energy loss, minimizing heat generation, and improving the service life and stability of the power supply module.​

• Wide Input Range: It supports a wide voltage input range of AC 85 - 264V. Whether there are fluctuations in the grid voltage or voltage differences in different regions, it can operate stably, greatly enhancing the applicability and flexibility of the module.​

• EMC Performance: Passing strict Electromagnetic Compatibility (EMC) tests, it has excellent anti-electromagnetic interference capabilities. At the same time, it reduces its own electromagnetic radiation to surrounding devices, ensuring stable operation in complex electromagnetic environments without affecting the normal operation of other devices.​

• Installation Methods: It supports standard 35mm DIN rail installation and can also be installed by screw fixation. The installation process is simple and convenient, and it can be easily integrated into industrial control cabinets, saving installation space and facilitating system maintenance and upgrades.​

• Compatibility: It is highly compatible with GE Fanuc 90-70 series, VersaMax series controllers, and various I/O modules. It can also be adapted to other industrial automation devices that meet the power supply requirements, with strong versatility, and is suitable for a variety of industrial automation control systems.​

• Automated Production Lines: It provides stable power for devices such as PLC controllers, servo drives, and sensors on the production line, ensuring the efficient and continuous operation of the production line and reducing the risk of downtime caused by power supply problems.​

• Smart Grid Equipment: In power facilities such as substations and power distribution stations, it supplies power to relay protection devices, monitoring equipment, etc., ensuring the accuracy and stability of data collection, transmission, and control in the power system.​

• Traffic Signal Systems: It is used to supply power to devices such as traffic signal controllers and surveillance cameras. It can continuously and stably supply power in complex outdoor environments, ensuring the normal operation of traffic signal systems and maintaining traffic order.​
•
•

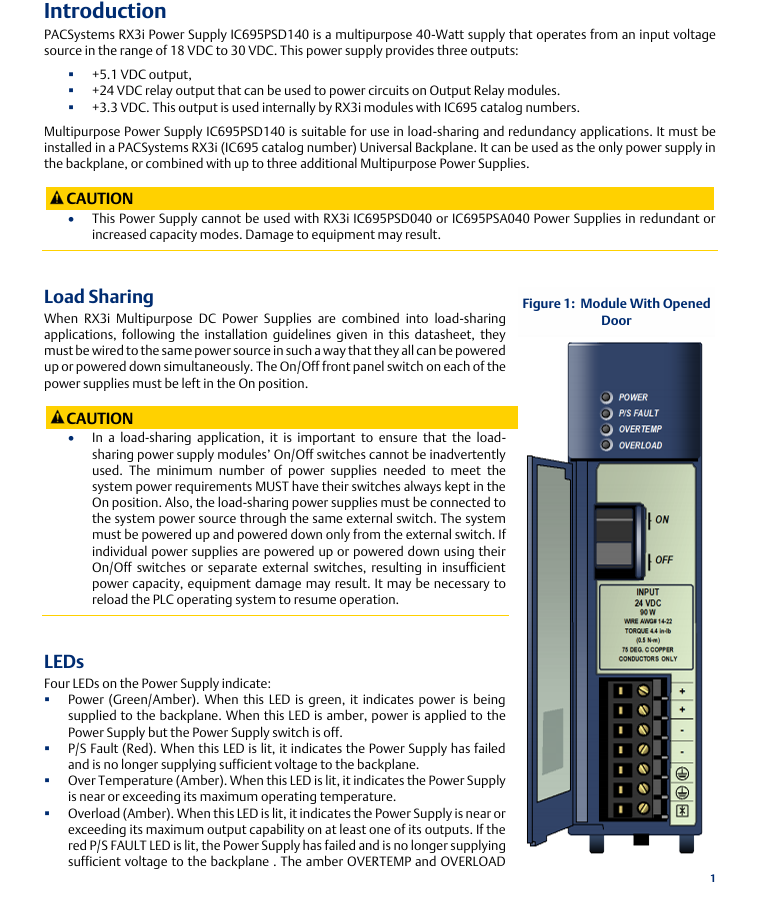

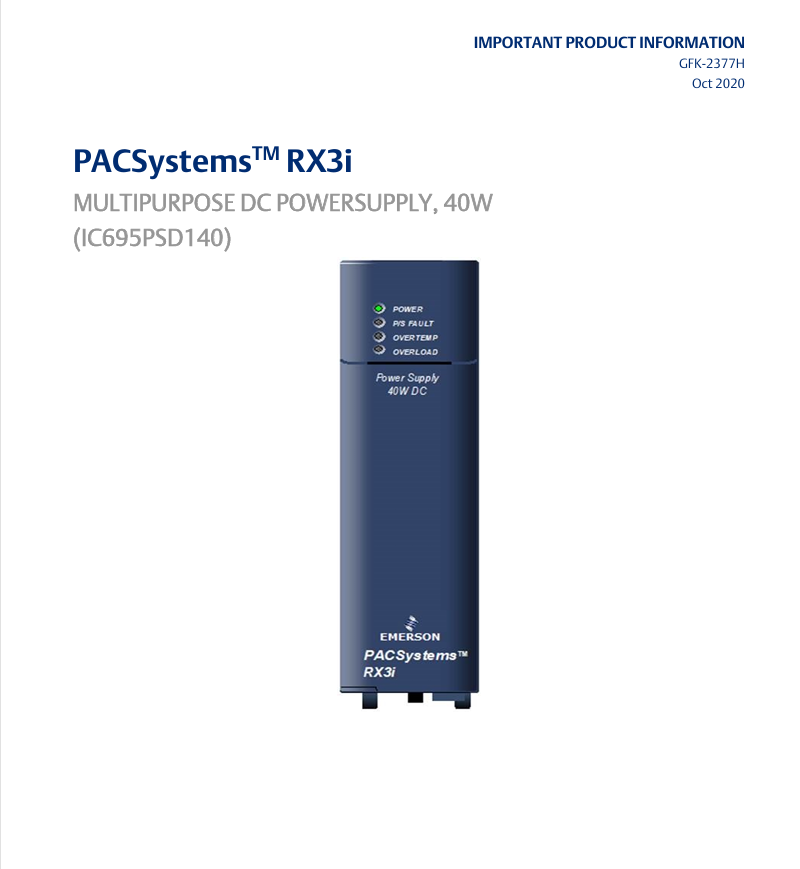

The structure and details of the product：
