GE EPM9650 Power Meter

• • • • • • • GE EPM9650

              Power Quality Meter (Revenue Grade)

              Manufacturer: GE Vernova (Multilin)



              Model: EPM9650



              Type: High‑Performance Power Quality & Energy Meter




              Specifications

              • Accuracy: ±0.2% (revenue grade), exceeds ANSI C‑12 / IEC 687
              • Parameters Measured: 15,000+ (V, A, kW, kWh, harmonics, flicker, transients)GE Vernova
              • Harmonics: Real‑time up to 128th order; THD up to 255th order
              • Sampling: 512 samples/cycle (EN50160 flicker compliant)
              • Voltage Input: 120/208V or 277/480V (selectable)
              • Current Input: 5A or 1A (CT selectable)
              • Frequency: 45–65 Hz
              • Control Power: 90–276V AC/DC or 18–60V DC
              • Communications: 10/100 BaseT Ethernet (Modbus/TCP), RS‑485 (Modbus/DNP3)
              • Data Logging: Up to 602 days; 64‑cycle waveform recording
              • I/O: Expandable up to 256 points (digital/analog)GE Vernova
              • Display: High‑resolution color LCD
              • Operating Temp: −10°C to +50°C
              • Dimensions (W×H×D): 165 × 85 × 320 mm
              • Weight: 2.5 kg

              Key Features

              • Revenue Grade Accuracy: Certified for utility billing and critical infrastructureGE Vernova.
              • Advanced Power Quality: Monitors harmonics, sags, swells, transients, and EN50160 flicker.
              • High‑Speed Recording: Captures waveform events for fault analysisGE Vernova.
              • GPS Synchronization: Precise time stamping for event correlation.
              • Expandable I/O: Flexible control and monitoring via modular I/OGE Vernova.
              • Long‑Term Logging: Stores months of data for trend analysis.

              Applications

              • Utility & Substation Metering: Billing, load profiling, and power quality compliance.
              • Data Centers & Critical Facilities: Ensure clean, reliable power for sensitive loads.
              • Industrial Plants: Monitor harmonics, optimize energy use, and diagnose equipment issues.
              • Renewable Energy: Grid‑tie monitoring for wind/solar installationsGE Vernova.

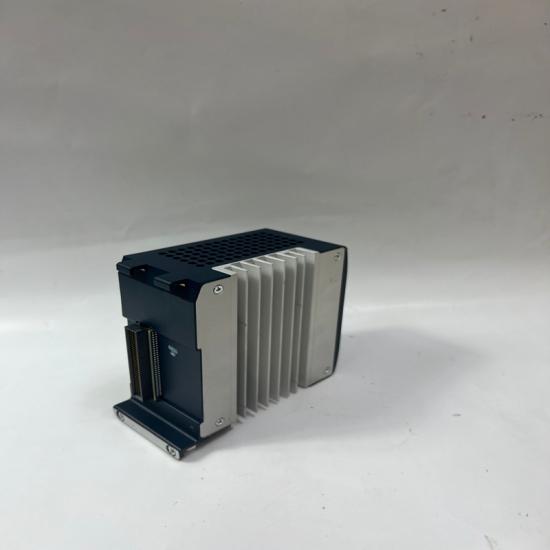

The structure and details of the product：
