                                                                                                                                                                                                                                                                                                                        • GE DCP050UR_HV DC Power Supply

                                                                                                                                                                                                                                                                                                                          Product Overview

                                                                                                                                                                                                                                                                                                                          Model: DCP050UR_HV
                                                                                                                                                                                                                                                                                                                          Series: GE Universal Relay (UR) Series
                                                                                                                                                                                                                                                                                                                          Manufacturer: GE Grid Solutions

                                                                                                                                                                                                                                                                                                                          The GE DCP050UR_HV is a high-voltage DC power supply module designed for GE Universal Relay (UR) protection and control systems. It provides stable DC power conversion for protective relays and industrial automation equipment, ensuring reliable operation in substations and critical power applications.

                                                                                                                                                                                                                                                                                                                          ---

                                                                                                                                                                                                                                                                                                                          Technical Specifications

                                                                                                                                                                                                                                                                                                                          • Product Type: DC Power Supply Module
                                                                                                                                                                                                                                                                                                                          • Model: DCP050UR_HV
                                                                                                                                                                                                                                                                                                                          • Series: GE Universal Relay (UR)
                                                                                                                                                                                                                                                                                                                          • Input Voltage Range:
                                                                                                                                                                                                                                                                                                                            • 88–300 VDC
                                                                                                                                                                                                                                                                                                                            • 85–265 VAC (typical range)
                                                                                                                                                                                                                                                                                                                          • Output: Regulated DC power supply for relay/control circuits
                                                                                                                                                                                                                                                                                                                          • Module Type: Plug-in power supply module
                                                                                                                                                                                                                                                                                                                          • Compatibility: GE Multilin Universal Relay Systems
                                                                                                                                                                                                                                                                                                                          • Installation: UR relay chassis
                                                                                                                                                                                                                                                                                                                          • Protection Functions:
                                                                                                                                                                                                                                                                                                                            • Overvoltage protection
                                                                                                                                                                                                                                                                                                                            • Overcurrent protection
                                                                                                                                                                                                                                                                                                                            • Short-circuit protection
                                                                                                                                                                                                                                                                                                                          • Cooling Method: Natural convection cooling
                                                                                                                                                                                                                                                                                                                          • Application Environment: Industrial power protection systems

                                                                                                                                                                                                                                                                                                                          ---

                                                                                                                                                                                                                                                                                                                          Advantages & Features

                                                                                                                                                                                                                                                                                                                          • Stable DC Power Output
                                                                                                                                                                                                                                                                                                                            Provides reliable and regulated power for GE protection relays and control systems.
                                                                                                                                                                                                                                                                                                                          • Wide Input Voltage Compatibility
                                                                                                                                                                                                                                                                                                                            Supports high-voltage AC/DC power sources for flexible installation.
                                                                                                                                                                                                                                                                                                                          • High Reliability Design
                                                                                                                                                                                                                                                                                                                            Designed for continuous operation in critical power and industrial environments.
                                                                                                                                                                                                                                                                                                                          • Protection Functions Built-In
                                                                                                                                                                                                                                                                                                                            Helps protect connected equipment from electrical faults.
                                                                                                                                                                                                                                                                                                                          • Modular Plug-In Design
                                                                                                                                                                                                                                                                                                                            Allows quick installation, replacement, and system maintenance.
                                                                                                                                                                                                                                                                                                                          • Industrial Grade Performance
                                                                                                                                                                                                                                                                                                                            Suitable for demanding substation and automation applications.

                                                                                                                                                                                                                                                                                                                          ---

                                                                                                                                                                                                                                                                                                                          Applications

                                                                                                                                                                                                                                                                                                                          • Electrical Substations
                                                                                                                                                                                                                                                                                                                          • Power Protection Systems
                                                                                                                                                                                                                                                                                                                          • Generator Protection Systems
                                                                                                                                                                                                                                                                                                                          • Transformer Protection Systems
                                                                                                                                                                                                                                                                                                                          • Industrial Automation Systems
                                                                                                                                                                                                                                                                                                                          • Energy Management Systems
                                                                                                                                                                                                                                                                                                                          • Utility Control Equipment

                                                                                                                                                                                                                                                                                                                          ---

                                                                                                                                                                                                                                                                                                                          Precautions

                                                                                                                                                                                                                                                                                                                          • Confirm input voltage range before installation.
                                                                                                                                                                                                                                                                                                                          • Verify compatibility with GE UR relay chassis.
                                                                                                                                                                                                                                                                                                                          • Ensure correct wiring and polarity for DC input.
                                                                                                                                                                                                                                                                                                                          • Avoid installation in environments with excessive dust, moisture, or vibration.
                                                                                                                                                                                                                                                                                                                          • Disconnect power before replacing the module.
                                                                                                                                                                                                                                                                                                                          • Professional installation is recommended for protection system equipment.

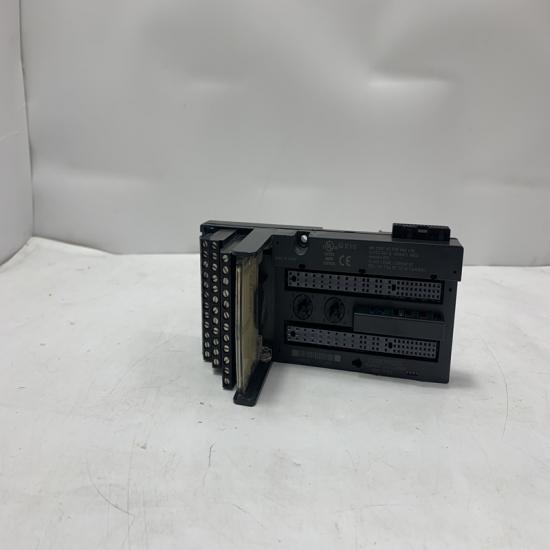

The structure and details of the product：
