Fluke 700P29 Pressure Module

Fluke 700P29 Pressure Module

Fluke 700P29 Pressure Module

  • Item NO.:

    700P29
  • Payment:

    T/T
  • Price:

    $750
  • Product Origin:

    USA
  • Color:

    NEW
  • Product weight:

    0.35kg
  • Lead Time:

    In stock

We will arrange delivery within 3-5 days after receiving the payment.

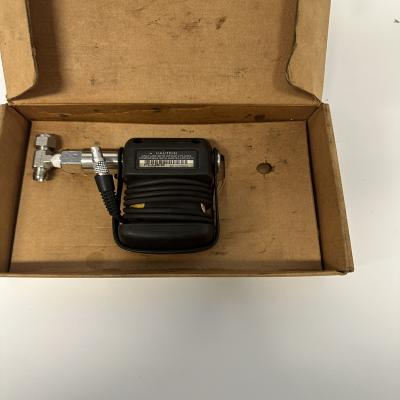

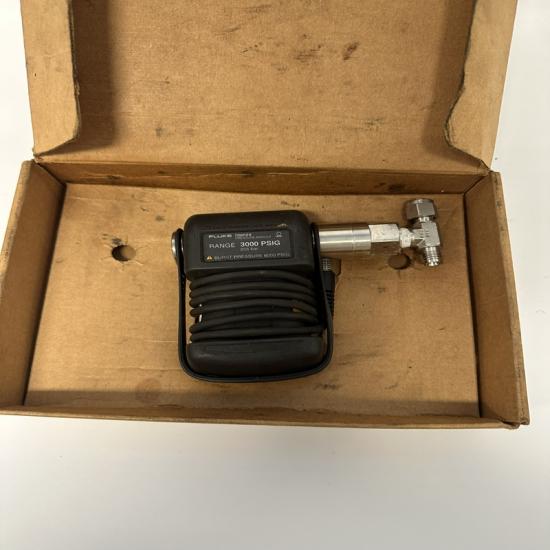

Fluke 700P29 | Pressure Module (Gauge)

Manufacturer: Fluke (Fluke Calibration)

Model: 700P29

Type: High‑Pressure Gauge Module (for 700 Series Calibrators)

Status: Discontinued (replaced by 750P series)


Specifications

  • Range: 0–3000 psi / 0–20.7 MPa / 0–207 bar
  • Accuracy (Total Uncertainty): 0.08% FS (1 year, 0–50 °C)
  • Reference Uncertainty: 0.05% FS (23 ±3 °C)
  • Stability (1 year): 0.01% FS
  • Temp Coefficient: 0.02% FS (0–50 °C)
  • Resolution: 0.1 psi / 0.001 MPa
  • Pressure Connection: 1/4" NPT female
  • Sensor Material: C276 (Hastelloy)
  • Media: Dry air / non‑corrosive gases/liquids
  • Overpressure: 2× rated; Burst: 5× rated
  • Operating Temp: −10 °C to +50 °C
  • Power: From Fluke 700 Series calibrator
  • Dimensions: 90 × 71 × 33 mm
  • Weight: ~0.28 kg
  • Certifications: EN61010‑1, EN61326; NIST‑traceable certificate

Key Features

  1. High‑Pressure Gauge: 3000 psi range for industrial/hydraulic pressure calibration
  2. High Accuracy: 0.08% total uncertainty, suitable for critical calibration tasks
  3. Wide Temp Compensation: Internal compensation ensures accuracy across −10 °C to +50 °C
  4. Multi‑Unit Display: Supports 10 units (psi, kPa, MPa, bar, etc.)
  5. Rugged Build: Urethane housing, C276 sensor for durability and media compatibility

Applications



  • Pressure calibration for transmitters, gauges, switches (up to 3000 psi)
  • Hydraulic/pneumatic system testing, oil & gas, process industries
  • With Fluke 701/702/703/704/705 documenting calibrators
