Bachmann FS211N FASTBUS Slave Module

1. Product Overview

2. Core Specifications

3. Key Functions

3.1 Deterministic FASTBUS Slave Communication

• IEC 61375 Compliance: Adheres strictly to FASTBUS standards, ensuring seamless interoperability with third-party FASTBUS masters (e.g., Siemens, Bombardier rail TCMS). This eliminates compatibility barriers in multi-vendor systems—critical for rail transit, where components from different suppliers must work in unison.
• High-Speed, Low-Jitter Data Transfer: 10 Mbps transmission rate with <10µs jitter guarantees real-time synchronization for time-sensitive tasks. For example, in a rail vehicle, the FS211N can receive "door open/close" commands from the TCMS (master) and send "door status" feedback within milliseconds, preventing safety hazards from delayed responses.

3.2 Flexible Data Object Configuration

• Scalable Input/Output Objects: Supports 256 input objects (for master-sent control data, e.g., "HVAC temperature setpoint") and 256 output objects (for slave-sent status data, e.g., "actual motor current"). Users map these objects to M1 controller variables via Bachmann’s M1 Configurator—no low-level programming required. For instance:
  • Map a 16-bit input object to an M1 variable for "conveyor speed command".
  • Map a 32-bit output object to an M1 variable for "battery voltage (rail vehicle)".
• Multi-Type Data Support: Natively handles integers (8/16/32-bit), floating-point (32-bit), and boolean data, avoiding software conversion overhead and simplifying integration with M1 control logic.

3.3 Harsh-Environment Robustness

• Rail-Grade Durability: The -40°C ~ +70°C operating range and 5g vibration resistance (per EN 50155) make the FS211N suitable for rail vehicle on-board systems (e.g., auxiliary power units, passenger door control), which endure extreme temperature fluctuations and constant mechanical vibration.
• EMI Immunity & Isolation: Differential RS-485 signaling resists electromagnetic interference from high-voltage rail systems (e.g., 25kV overhead lines), while 2.5kV AC isolation on the FASTBUS interface prevents ground loops and voltage spikes from damaging the M1 controller—critical for stable operation in noisy industrial/rail environments.

3.4 Comprehensive Diagnostics & Safety

• Real-Time Status Monitoring: Transmits FASTBUS-specific diagnostic data (e.g., "bus connection status", "data error count") to the M1 controller. LED indicators on the module provide at-a-glance alerts: green (bus active), red (fault), yellow (data transfer). This enables quick on-site troubleshooting.
• Watchdog Timer: Built-in watchdog monitors FASTBUS communication. If the master fails to send valid data for a configurable timeout (10ms–1s), the module triggers a "communication loss" alert and can set M1 variables to pre-defined "safe states" (e.g., stop rail vehicle auxiliary pumps), preventing unsafe operation.
• Error Detection & Recovery: Automatically detects and flags errors like CRC mismatches, frame corruption, or bus disconnections. The module retries failed transmissions (configurable retry count) and logs error events with timestamps for post-incident analysis.

3.5 Seamless M1 System Integration

• Backplane Synergy: Connects directly to the M1 backplane, enabling high-speed data exchange with the M1 CPU (<1ms latency). This ensures the M1 controller can act on FASTBUS commands (e.g., "start motor") and update status data (e.g., "motor temperature") in real time.
• Centralized Configuration: All FASTBUS parameters (slave address, data object mapping, timeout settings) are managed via M1 Configurator, with a graphical interface for defining data points. This streamlines commissioning—even for users with limited FASTBUS expertise.

4. Typical Applications

• Rail Vehicle Auxiliary Control: Integrates the M1 controller (managing HVAC, lighting, and door systems) with the train’s TCMS (FASTBUS master). The FS211N receives "HVAC setpoint" commands from the TCMS (input objects) and sends "door lock status" to the TCMS (output objects), ensuring passenger comfort and safety.
• Multi-Axis Motion Coordination: Connects the M1 controller (controlling 4 servo axes) to a FASTBUS master motion controller. The FS211N receives "axis target position" commands (input objects) and sends "actual axis speed" feedback (output objects), enabling synchronized motion for CNC machine tools or robotic assembly lines.
• Distributed Process Monitoring: Links remote M1-based sensor nodes (monitoring pressure, temperature in an oil pipeline) to a central FASTBUS master SCADA. The FS211N in each node acts as a slave, transmitting sensor data (output objects) to the master for centralized monitoring and alerting.

5. Usage Notes

1. FASTBUS Network Setup
   • Slave Address Assignment: Assign a unique slave address (1–127) via M1 Configurator—duplicate addresses cause bus conflicts. Use LSS (Layer Setting Services) for automatic address assignment in large networks (50+ slaves).
   • Bus Termination: Enable the module’s internal 120Ω termination resistor (via DIP switch) only if the FS211N is the first or last device in the FASTBUS chain. Multiple termination resistors cause signal reflection and communication failures.
   • Bit Rate Matching: Set the FASTBUS bit rate (10 Mbps recommended for real-time systems) to match the master’s rate. Mismatched rates result in garbled data or no communication.
2. Wiring Best Practices
   • Cable Selection: Use twisted-pair shielded cables (0.5mm², RS-485-rated) for FASTBUS connections. Limit cable length to 100m (10 Mbps) or 500m (1 Mbps) to maintain signal integrity.
   • Grounding: Ground the cable shield at one end only (preferably the master’s enclosure) to avoid ground loops. Keep FASTBUS cables at least 10cm away from high-voltage power cables (e.g., 380V AC) to reduce EMI.
   • Polarity Check: Ensure correct wiring of CAN_H/CAN_L signals—reversed polarity prevents communication. Use color-coded cables (e.g., red = CAN_H, black = CAN_L) to avoid errors.
3. Railway-Specific Installation
   • Enclosure Protection: Mount the FS211N in an EN 50155-compliant enclosure (IP54 or higher) to shield against dust, moisture, and vibration in rail vehicles. Use anti-vibration mounting brackets to secure the M1 rack.
   • Power Supply Filtering: Connect the module’s auxiliary power (24V DC) to a regulated, filtered supply (per EN 50155) to withstand voltage surges common in rail systems (e.g., 24V → 36V transient spikes).
4. Diagnostics & Troubleshooting
   • Bus Load Monitoring: Use M1 Configurator’s "FASTBUS Monitor" to track bus load—keep load <70% to avoid data collisions. If load is high, reduce the update frequency of non-critical data objects (e.g., "ambient temperature" vs. "emergency stop status").
   • Fault Isolation: If communication fails:
     1. Check the module’s LED status (red = fault).
     2. Verify wiring (polarity, termination, grounding).
     3. Test with a known-good FASTBUS master to isolate faults (module vs. master).
   • Watchdog Triggers: Frequent watchdog alerts indicate a faulty master or unstable bus. Increase the watchdog timeout (if allowed) or investigate master-side issues (e.g., software bugs, hardware failures).
5. Maintenance
   • Periodic Inspections: Check FASTBUS connectors quarterly for corrosion (common in rail environments) and clean with isopropyl alcohol if needed. Tighten terminal screws to 0.8–1.0N·m to prevent vibration-induced loosening

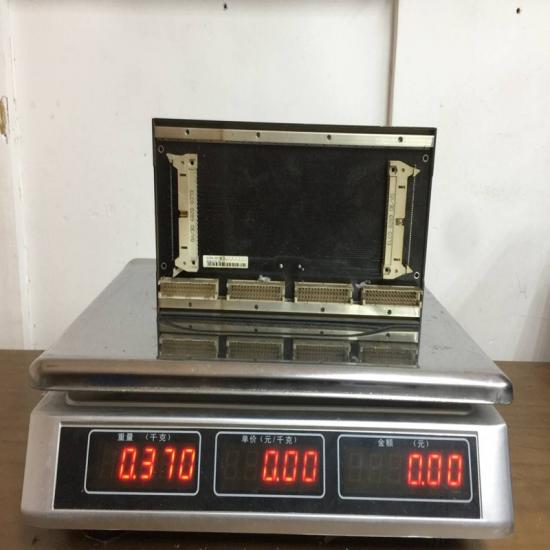

The structure and details of the product：
