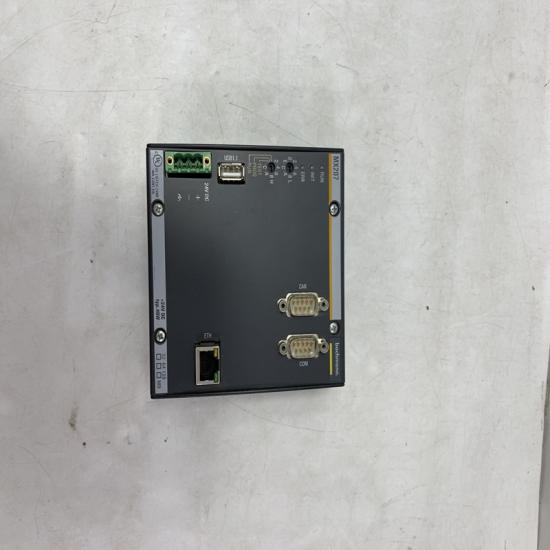

BACHMANN MX207 Processor Module

Product Overview

The BACHMANN MX207 is a high-performance industrial processor module from the MX200 series, designed for automation, motion control, and real-time monitoring in demanding environments. It integrates power supply, communication interfaces, and processing capabilities into a compact form factor, making it ideal for wind energy, power plants, and industrial machinery applications .

Key Features & Technical Specifications

1. Processing & Memory

• CPU: Industrial-grade processor (clock speed up to 433 MHz in MX213 variant) .

• Memory:

  • 256 MB RAM (expandable via CompactFlash card) .

  • 512 kB non-volatile memory (retains critical data during power loss) .

• Real-Time Performance: Supports multi-tasking for parallel program execution .

2. Communication & Interfaces

• Ethernet: 2× 10/100 Mbit/s ports for network integration .

• Serial Ports: 1× RS232, 1× RS232/RS422/RS485 .

• USB & CAN: 1× USB 2.0, CAN/CANopen for device connectivity .

3. Power & Environmental

• Power Supply: 24V DC (18–34V range) with integrated I/O power distribution .

• Operating Temperature: -30°C to +60°C (fanless design) .

• Protection Rating: IP20 (dust-resistant, for panel mounting) .

4. Modular Expansion

• Compatibility: Works with MX200 series I/O modules (e.g., digital, analog, motion control) .

• Compact Design: 2-module width for space-efficient installations .

Applications

1. Wind Energy: Turbine control and condition monitoring .

2. Industrial Automation: CNC machines, robotic cells, and conveyor systems .

3. Power Plants: Grid synchronization and safety-critical control .

Installation & Usage Notes

1. Programming: Configure via BACHMANN SolutionCenter (supports C/C++ and ladder logic) .

2. Maintenance: Regularly update firmware via CompactFlash card.

3. Redundancy: Compatible with dual-CPU setups for fail-safe operation .
