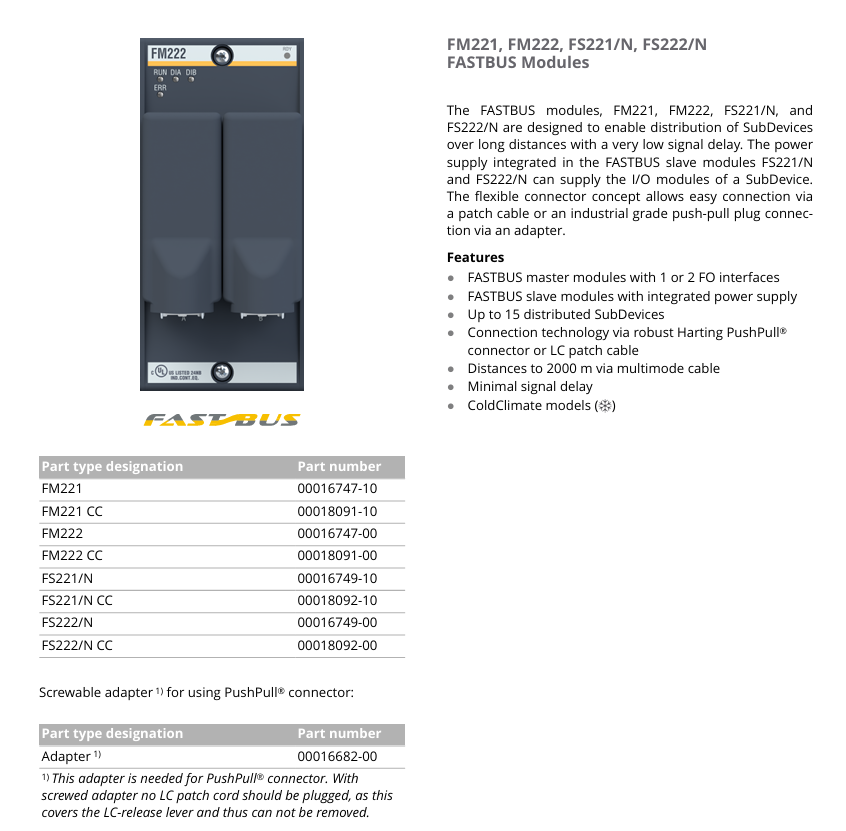

Bachmann FS221/N FASTBUS Slave Module

Functional Features

• Integrated Power Supply: The module has a built-in power supply that provides stable power for I/O modules in substations, simplifying system design.
• Communication Interfaces: Supports 1 or 2 FO (Fiber Optic) interfaces, suitable for high-speed data transmission. It is compatible with FASTBUS master modules, enabling distributed network connections. Its flexible connector design supports jumper connections or industrial-grade push-pull connectors (e.g., Harting PushPull connectors) and is also compatible with LC patch cable connection technology, ensuring stability in industrial environments.
• Signal Latency: Features extremely low signal latency, making it suitable for applications with high real-time requirements, such as motion control and process automation.
• Distribution Capability: Supports up to 15 distributed substations, with a transmission distance of up to 2000 meters via multi-mode cables.
• Environmental Adaptability: Some models are equipped with the ColdClimate feature, enabling adaptation to low-temperature or extreme environments.

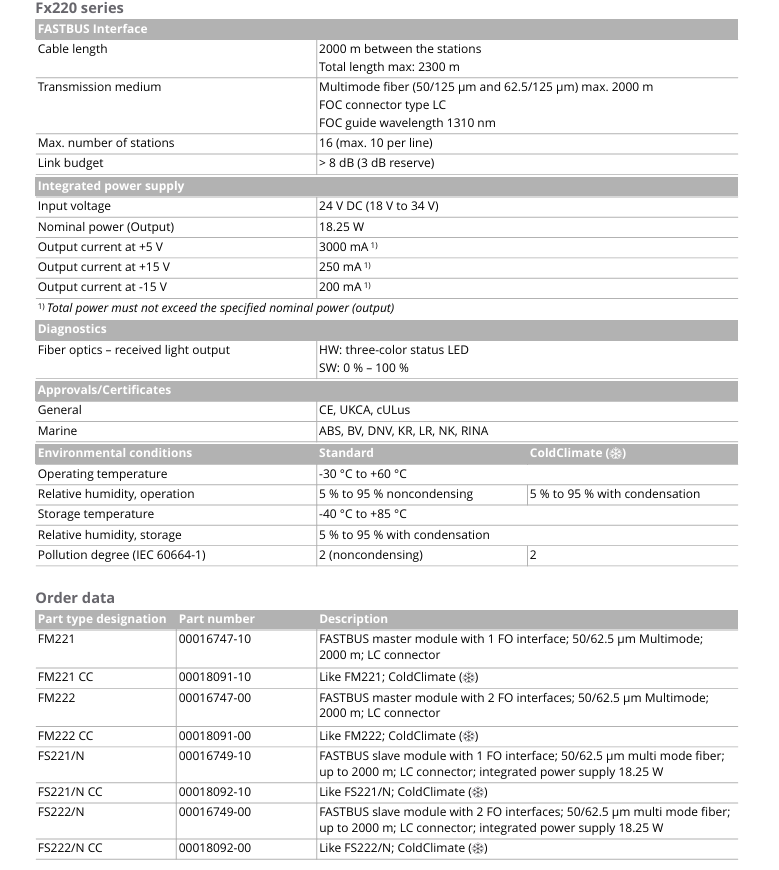

Technical Specifications

• Input Voltage: 24V DC (range: 18–34V)
• Output Power: 18.25W
• Output Current: 3000mA at +5V, 250mA at +15V, 200mA at -15V
• Transmission Medium: Multi-mode optical fiber (50/125μm and 62.5/125μm)
• Operating Temperature: -30°C to +60°C
• Storage Temperature: -40°C to +85°C

Application Fields

The structure and details of the product：
