Bachmann DO216 Digital Output Module

1. Product Overview

2. Core Specifications

3. Key Functions

3.1 High-Density Output Control

• 16 Channels in Compact Form: The DO216 packs 16 outputs into a 35mm-wide module—reducing rack space by 50% compared to using two 8-channel output modules. This is critical for large-scale applications (e.g., a food processing line with 16 solenoid valves for product diverters) where control cabinet space is limited.
• Sourcing (PNP) Outputs: Optimized for 24V DC industrial devices that require a "sourcing" signal (e.g., PNP-compatible relays, LED indicator panels). Directly connects to field devices without external signal converters, simplifying wiring and reducing points of failure.

3.2 Robust Load Protection

• Per-Channel Overcurrent/Short-Circuit Defense: Each output channel includes independent overcurrent protection to safeguard against faulty loads (e.g., a shorted solenoid valve). The module automatically resets once the fault is resolved (no manual intervention required), minimizing downtime.
• Reverse Polarity Protection: Prevents damage if power wiring is reversed (e.g., 24V DC positive connected to ground). This is especially valuable during installation or maintenance, where wiring errors are common.
• MOSFET Outputs for Longevity: Solid-state MOSFET switches (instead of mechanical relays) eliminate contact wear, ensuring a lifespan of >100 million cycles—ideal for high-duty-cycle applications (e.g., an indicator light that stays on 24/7).

3.3 Fast, Deterministic Integration with M1 System

• Low-Latency Response: <0.1ms output response time ensures immediate execution of M1 CPU commands—critical for time-sensitive tasks (e.g., stopping a conveyor within 10ms of a jam detection signal from a sensor).
• Backplane Communication: Exchanges status and control data with the M1 controller via the 100 Mbps M1 backplane bus. The module transmits real-time output status (e.g., "Channel 7: Active", "Channel 12: Overcurrent") to the CPU, enabling remote monitoring via HMI/SCADA.
• Software Configuration: All parameters (e.g., output current limits, fault reset behavior) are configured via Bachmann’s M1 Configurator software—no hardware jumpers required. This streamlines setup and allows for easy reconfiguration if load requirements change.

3.4 Industrial-Grade Noise Immunity

• Electrical Isolation: 500V AC channel-to-channel isolation prevents fault propagation (e.g., a shorted output on Channel 3 won’t affect Channel 4), while 1kV AC signal-to-ground isolation protects the M1 CPU from voltage spikes (e.g., 24V DC supply surges).
• EMC Compliance: Meets EN 61000-6-2 standards for immunity to electromagnetic interference (EMI) from nearby motors, inverters, or welders. This ensures stable output performance in noisy factory environments where unshielded modules might experience false triggers.

4. Typical Applications

• Food Processing Lines: Controls 16 solenoid valves (for product flow, cleaning sprayers, and gate diverters) in a packaging line. Overcurrent protection prevents damage from waterlogged valves, and fast response times ensure precise synchronization with product detection sensors.
• Building Automation: Manages a commercial office’s lighting and HVAC systems—16 outputs control ceiling light banks, HVAC dampers, and exhaust fans. MOSFET outputs handle the high duty cycle of lighting controls (24/7 operation) without wear.
• Material Handling Conveyors: Operates 16 conveyor zone motors (via contactor coils) in a warehouse. Peak current support (2A/channel) accommodates motor startup loads, and total current limiting (8A) prevents overload of the 24V DC power supply.
• Automotive Assembly: Controls 16 robotic gripper actuators in a sub-assembly workcell. Low-latency response (<0.1ms) ensures grippers open/close in sync with part positioning, while isolation protects the M1 CPU from EMI from nearby welding robots.

5. Usage Notes

1. Wiring Guidelines
   • Cable Sizing: Use 0.5–1.0mm² copper cables for outputs driving ≤0.5A (e.g., LEDs, small relays) and 1.0–1.5mm² cables for loads approaching 0.5A (e.g., solenoid valves). This prevents voltage drop and overheating.
   • Inductive Load Protection: For inductive loads (e.g., relay coils, motors), install flyback diodes (e.g., 1N4007) across the load terminals. This suppresses voltage spikes during output turn-off, which can damage the module’s MOSFETs.
   • Grounding: Connect the module’s ground terminal to the control cabinet’s earth bar (≤0.5Ω resistance) to maximize EMI immunity and prevent ground loops.
2. Load Management
   • Total Current Check: Ensure the sum of all connected load currents does not exceed 8A (e.g., 16 loads of 0.5A = 8A, which is safe; 10 loads of 1A = 10A, which exceeds the limit). Use a second DO216 for excess loads.
   • Peak Current Limitation: Avoid simultaneous startup of multiple high-peak loads (e.g., 4 motors with 2A peak each = 8A total). Stagger startup via M1 control logic to prevent tripping the total current limit.
3. Configuration Tips
   • Fault Reset Behavior: In M1 Configurator, set "auto-recovery" for non-critical loads (e.g., indicator lights) and "manual reset" for critical loads (e.g., safety valves). Manual reset ensures operators investigate faults before restarting.
   • Output Status Mapping: Map each output’s status (active/fault) to M1 controller variables (e.g., "DO216_Ch5_Active") for HMI visualization. This allows operators to quickly identify failed outputs.
4. Troubleshooting
   • Output Not Activating: Check if the M1 CPU is sending a valid command (via M1 Configurator’s "Output Monitor"). If the command is present but the output is inactive, test for a short circuit (use a multimeter to measure resistance between the output terminal and ground—<10Ω indicates a short).
   • Overcurrent Faults: Frequent overcurrent alerts indicate a faulty load (e.g., a solenoid valve with a damaged coil). Replace the load or reduce the load current (e.g., use a smaller relay) to resolve the issue.
5. Environmental Protection
   • Temperature Control: Mount the DO216 away from heat sources (e.g., power supplies, inverters) to maintain the -25°C ~ +60°C operating range. In high-temperature cabinets, use a cooling fan to prevent overheating.
   • Humidity & Dust: In humid environments (e.g., beverage plants), use a dehumidifier to keep relative humidity <85% (non-condensing). Clean the module’s terminals quarterly with a dry brush to remove dust buildup, which can cause poor electrical contact

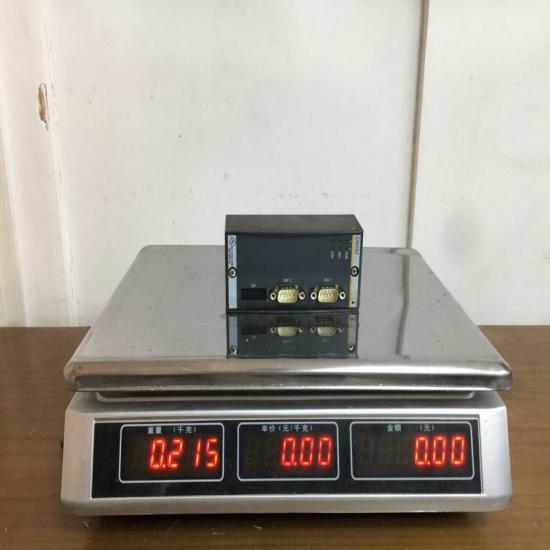

The structure and details of the product：
