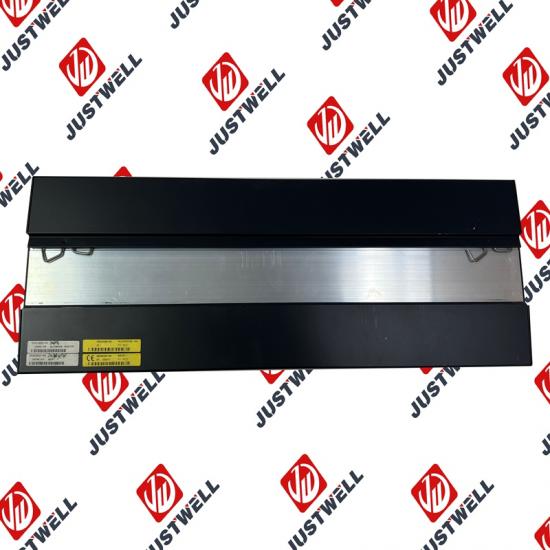

Bachmann BS206 Backplane Module

1. Product Overview

2. Core Specifications

3. Key Functions

3.1 High-Speed Inter-Module Data Communication

• Deterministic Backplane Bus: The BS206’s 100 Mbps differential bus ensures low-latency (<1ms) data transfer between M1 modules—critical for time-sensitive applications like motion control (e.g., ACR222/2 axis controller sending position data to ME203/N processor) or high-speed I/O (e.g., DIO248 sending sensor signals to the CPU). Unlike Ethernet, the backplane bus is deterministic (no packet collisions), guaranteeing consistent data delivery even under maximum load (6 modules transmitting simultaneously).
• Unified Data Interface: All M1 modules use a standardized connector to plug into the BS206, eliminating compatibility issues. For example, a PTAI216 temperature module and a CS200/N CANopen module can both communicate with the ME203/N processor via the same backplane bus, without requiring separate wiring or protocol translation.

3.2 Centralized Power Distribution

• 24V DC Power Routing: The BS206 accepts a single 24V DC input from an M1 power supply (e.g., NT255) and distributes regulated power to all 6 connected modules. This eliminates the need to wire power to each module individually, reducing cable clutter and simplifying installation—especially in large racks with 5+ modules.
• Overcurrent Protection: A 12A resettable fuse protects the backplane and connected modules from short circuits (e.g., a faulty DIO module causing a power short). If the total load exceeds 12A, the fuse trips to cut power, preventing damage to the backplane or power supply; it resets automatically once the fault is resolved.

3.3 Scalable System Expansion

• 6-Slot Base Configuration: The BS206’s 6 slots support small-to-medium M1 systems (e.g., 1x ME203/N processor + 1x NT255 power supply + 4x I/O/communication modules). For larger systems (e.g., 10+ modules), multiple BS206 backplanes can be daisy-chained via a dedicated expansion port (on the BS206’s side), creating a single extended backplane with shared data and power.
• Tool-Free Module Installation: M1 modules slide into the BS206’s slots and lock into place with a spring-loaded latch—no screws or tools required. This allows quick module replacement (e.g., swapping a faulty RS204 communication module) without disconnecting power or data wiring, minimizing downtime.

3.4 Industrial-Grade Reliability

• EMC Immunity: The backplane’s differential signaling and shielded internal wiring resist electromagnetic interference (EMI) from nearby motors, inverters, or power cables—ensuring stable data communication even in noisy factory environments. This is critical for applications like automotive manufacturing, where EMI from welding equipment can disrupt unshielded systems.
• Flame-Retardant & Robust Design: The BS206’s UL 94 V-0 flame-retardant plastic housing prevents fire spread in case of electrical faults, while the aluminum mounting bracket ensures stability on DIN rails (resisting vibration from machinery, per IEC 60068-2-6).

4. Typical Applications

• Compact Machine Control: A small M1 system for a 3D printer—BS206 hosts 1x ME203/N processor, 1x DIO16-C I/O module (for limit switches), 1x PTAI216 temperature module (for heater monitoring), and 1x NT255 power supply. The backplane simplifies wiring and ensures real-time communication between modules.
• Medium-Scale Process Automation: A chemical plant’s temperature monitoring system—BS206 connects 1x ME203/N processor, 3x PTAI216 modules (48 temperature points total), 1x RS204 communication module (for SCADA), and 1x NT255 power supply. The backplane’s 100 Mbps bus ensures fast data transfer from sensors to the processor.
• Large-Scale Motion Control: A CNC machine with 4 axes—two BS206 backplanes are daisy-chained to support 1x ME203/N processor, 2x ACR222/2 axis controllers (4 axes total), 1x DIO248 I/O module (for spindle control), 1x CS200/N CANopen module (for servo drives), and 2x NT255 power supplies. The extended backplane maintains deterministic communication across all modules.

5. Usage Notes

1. Module Installation & Compatibility:
   • Ensure all modules are M1-compatible (e.g., ME203/N, DIO248)—non-M1 modules may not fit the BS206’s slots or communicate with the backplane bus.
   • Insert modules firmly until the spring-loaded latch clicks into place—loose connections cause intermittent data loss or power failures. Avoid forcing modules (misaligned pins can damage the backplane or module connectors).
2. Power Supply Sizing:
   • Calculate total power demand before connecting modules: Sum the current draw of all modules (e.g., ME203/N = 0.5A, DIO248 = 0.3A, NT255 = 0.2A) and ensure the total does not exceed the BS206’s 10A limit. For loads >10A, use a second BS206 with a dedicated NT255 power supply.
   • Connect only M1-approved 24V DC power supplies (e.g., NT255) to the BS206—higher voltages (e.g., 48V DC) will damage the backplane and modules.
3. Daisy-Chaining for Expansion:
   • When daisy-chaining multiple BS206 backplanes, use Bachmann’s proprietary expansion cable (part no. M1-BP-CAB-01) to connect the "OUT" port of one BS206 to the "IN" port of the next. Do not exceed 3 daisy-chained BS206s (18 slots total)—longer chains increase signal latency beyond acceptable limits for real-time control.
   • Power each daisy-chained BS206 with a separate NT255 power supply—sharing a single power supply across multiple backplanes may cause voltage drops.
4. Wiring & Grounding:
   • Use 1.5mm² copper wires for the BS206’s power input (24V DC) and connect to a dedicated circuit breaker (15A recommended) to prevent overcurrent.
   • Ground the BS206’s mounting bracket to the control cabinet’s earth bar (≤0.5Ω resistance) to minimize EMI and prevent ground loops—critical for stable data communication.
5. Maintenance & Troubleshooting:
   • Inspect the BS206 quarterly for loose modules or damaged connectors—vibration can dislodge modules over time. Clean the backplane’s slot connectors with compressed air (low pressure, <2 bar) to remove dust (dust buildup causes poor electrical contact).
   • If modules fail to communicate: Check if the backplane’s power LED is lit (red = power on; off = no power). Use a multimeter to verify 24V DC at the power input terminal. If power is present but communication fails, test the backplane with a known-good module (e.g., a spare DIO16-C) to isolate the fault (backplane vs. module).
   • If the overcurrent fuse trips: Disconnect all modules, then reconnect them one by one to identify the shorted module. Replace the faulty module before resetting the fuse
