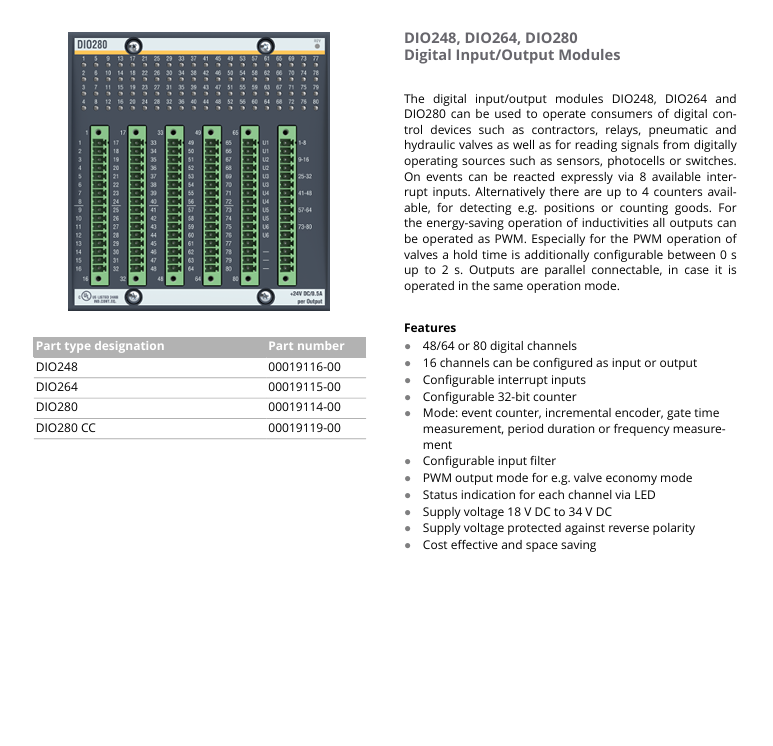

Bachmann DIO248 Digital Input/Output Module

1. Product Overview

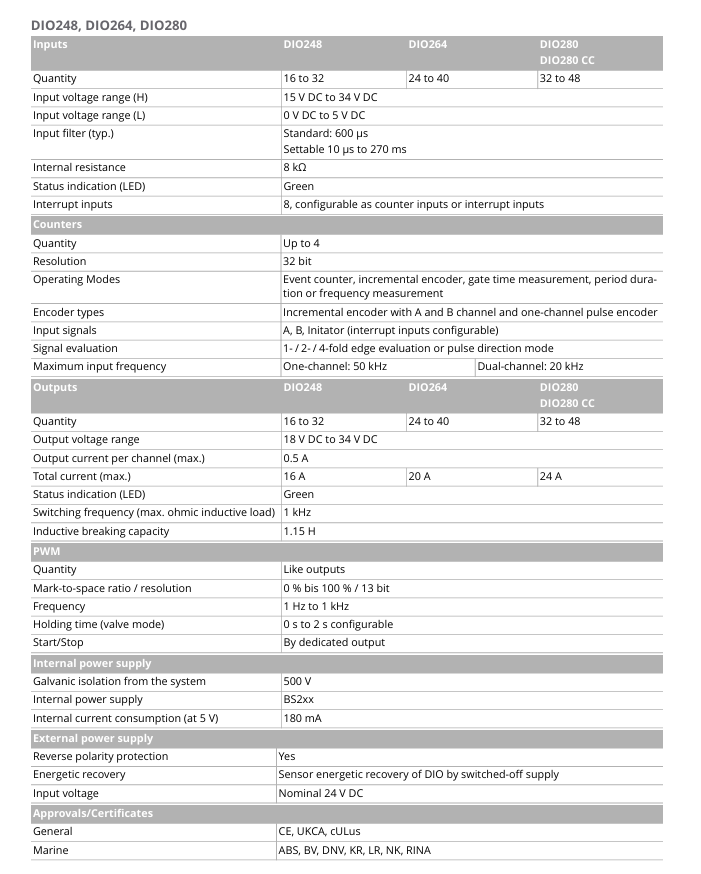

2. Core Specifications

3. Key Functions

3.1 High-Density I/O for Large-Scale Systems

• 16 Inputs + 8 Outputs: The module’s 24 total channels (16 inputs, 8 outputs) provide extensive coverage for large automation systems, reducing the number of modules needed in the M1 rack. This high density is particularly valuable for applications like automotive assembly lines, where monitoring 16 sensors (e.g., part presence, fixture status) and controlling 8 actuators (e.g., grippers, conveyors) in a single workcell is common.
• Mixed Signal Compatibility: Inputs support NPN sensors (proximity switches, photoelectric sensors), while outputs control medium-load devices such as solenoid valves, motor contactors, and indicator lights—eliminating the need for external signal converters or relays for most industrial components.

3.2 Reliable Signal Handling & Protection

• Configurable Input Filtering: 0.1ms–20ms adjustable digital filters on input channels suppress noise and contact bounce from mechanical switches (e.g., limit switches in material handling systems). This prevents false triggers caused by electrical interference from nearby motors or welders.
• Enhanced Output Protection: Each output channel includes overcurrent protection (trips at ~1.2A) to safeguard against short circuits (e.g., a damaged solenoid valve). The module automatically resets after the fault is resolved, minimizing downtime. Additionally, outputs feature reverse polarity protection to prevent damage from incorrect wiring.

3.3 Efficient Integration & Diagnostics

• Seamless M1 System Integration: The module connects directly to the M1 backplane, enabling high-speed data exchange with the controller (latency <1ms). Configuration (input filters, output behavior) is managed via Bachmann’s M1 Configurator software, with intuitive tools for mapping I/O points to controller variables.
• Comprehensive Status Monitoring: Individual LED indicators for each input (green, active) and output (red, active) provide at-a-glance status checks. Diagnostic data (e.g., "Output 3: Overcurrent", "Input 10: Open Circuit") is transmitted to the M1 CPU, enabling remote monitoring and rapid troubleshooting via HMI or SCADA systems.

3.4 Industrial-Grade Durability

• Robust Isolation: 500V AC channel-to-channel isolation prevents fault propagation (e.g., a shorted output won’t affect input signals), while 1kV AC signal-to-ground isolation protects the M1 controller from voltage spikes and ground loops—critical for stable operation in large industrial facilities with complex wiring.
• Wide Operating Range: The -25°C~+60°C temperature tolerance ensures reliable performance in harsh environments, from unheated factory floors to warm control cabinets near machinery.

4. Typical Applications

• Automotive Assembly Lines: Monitors 16 sensors (part detection, robot position, safety interlocks) and controls 8 actuators (conveyor motors, welding clamps, part ejectors) in a sub-assembly workcell—high density reduces rack space, and fast response times ensure precise synchronization.
• Warehouse Material Handling: Manages a large conveyor system with 16 photoelectric sensors (package detection, jam alerts) and 8 motor contactors (conveyor zones, diverters) — configurable filters suppress noise from conveyor motors.
• Building Management Systems: Controls HVAC, lighting, and security for a commercial complex—16 inputs read door contacts, motion sensors, and smoke detectors; 8 outputs activate fans, lights, and door locks.
• Water Treatment Plants: Monitors 16 float switches (tank levels) and valve position sensors, while controlling 8 solenoid valves and pump starters—output overcurrent protection prevents damage from waterlogged components.

5. Usage Notes

1. Wiring & Loading Guidelines:
   • Use 0.14–0.5mm² shielded cables for inputs to minimize EMI. For outputs, use 0.5–1.5mm² cables to handle currents up to 1A per channel, and ensure total combined output current does not exceed 8A.
   • For inductive loads (e.g., relays, solenoid valves), install flyback diodes across the load to suppress voltage spikes during switching, protecting the module’s output circuitry.
2. Input/Output Compatibility:
   • Inputs are sinking (NPN) only—ensure compatibility with field sensors. For PNP sensors, use an external converter or replace with NPN-compatible alternatives.
   • Outputs are sourcing (PNP) and designed for 24V DC devices. Do not connect AC loads or devices exceeding 1A per channel (use external contactors for higher currents).
3. Filter Configuration:
   • Set input filters based on sensor type: 0.1ms–1ms for solid-state sensors (photoelectric switches); 10ms–20ms for mechanical switches (limit switches) to suppress contact bounce. Validate settings with actual equipment to avoid delayed response.
4. Maintenance & Troubleshooting:
   • Regularly inspect output channels for frequent overcurrent faults, which indicate potential issues with connected devices (e.g., worn solenoids). Clean terminals quarterly with a dry brush to remove dust and debris.
   • Use M1 Configurator’s diagnostic tools to monitor channel status. If inputs show erratic behavior, check for loose connections or EMI sources (e.g., nearby high-voltage cables).
5. Environmental Protection:
   • Mount the module in a cabinet away from heat sources (power supplies, inverters) to maintain the -25°C~+60°C operating range. In humid environments (e.g., food processing), use a dehumidifier to keep relative humidity <85% (non-condensing) and prevent terminal corrosion
