Bachmann FS211/N FASTBUS Slave Module

1. Product Overview

2. Core Specifications

3. Key Functions

3.1 Deterministic FASTBUS Slave Communication

• IEC 61375 Compliance: Adheres strictly to FASTBUS standards, ensuring interoperability with third-party FASTBUS master devices (e.g., Siemens, Bombardier rail control units). This eliminates compatibility issues in multi-vendor automation systems (e.g., rail vehicle traction control).
• High-Speed Deterministic Transfer: 10 Mbps data rate with zero latency variation (jitter <10µs) ensures real-time data exchange—critical for time-sensitive tasks like rail vehicle door control (where delays could cause safety hazards) or multi-axis motion synchronization (where timing errors lead to process defects).

3.2 Flexible Data Object Configuration

• Configurable Input/Output Objects: Supports 256 input (master → slave) and 256 output (slave → master) data objects, each with 8–32 bit size. Users can map these objects to M1 controller variables via Bachmann M1 Configurator—for example:
  • Map a 16-bit input object to an M1 variable for "master command (start/stop)".
  • Map a 32-bit output object to an M1 variable for "slave status (temperature, current)".
• Data Type Support: Natively handles integers (8/16/32-bit), floating-point (32-bit), and boolean data—no need for software conversion, simplifying integration with M1 control logic.

3.3 Robustness for Harsh Environments

• Wide Temperature & Vibration Tolerance: -40°C ~ +70°C operating range and 5g vibration resistance meet EN 50155 railway standards, making it suitable for rail vehicle on-board systems (e.g., auxiliary power units, passenger door control) that endure extreme temperatures and constant vibration.
• Differential RS-485 & Isolation: Differential signaling resists electromagnetic interference (EMI) from nearby high-voltage rail systems (e.g., 25kV overhead lines), while 2.5kV isolation prevents ground loops and voltage spikes from damaging the M1 controller.

3.4 Diagnostic & Safety Features

• Comprehensive Status Monitoring: Transmits real-time FASTBUS communication status (e.g., "connection established", "data transfer error") to the M1 controller. Alerts trigger for faults like bus disconnection, parity errors, or invalid data frames—enabling quick troubleshooting via M1 HMI or SCADA.
• Watchdog Timer: Built-in watchdog monitors FASTBUS communication; if the master fails to send valid data for a configurable timeout (10ms–1s), the module triggers a "communication loss" alert and can set M1 variables to pre-defined "safe states" (e.g., stop auxiliary pumps in a rail vehicle).

4. Typical Applications

• Rail Vehicle Auxiliary Control: Acts as a FASTBUS slave to connect the M1 controller (managing HVAC, lighting, and door systems) to the rail vehicle’s main FASTBUS master (e.g., TCMS—Train Control and Management System). Transmits status data (e.g., HVAC temperature) to the master and receives control commands (e.g., "turn on passenger lights").
• Multi-Axis Motion Coordination: Integrates the M1 controller (controlling 4 servo axes) with a FASTBUS master motion controller. Receives position setpoints from the master (input objects) and sends actual axis positions to the master (output objects) for synchronized motion (e.g., robotic assembly lines).
• Distributed Process Monitoring: Connects remote M1-based sensor nodes (monitoring pressure, temperature) to a central FASTBUS master SCADA system. The FS211/N in each node acts as a slave, transmitting sensor data to the master for centralized monitoring (e.g., oil pipeline distributed pressure points).

5. Usage Notes

1. FASTBUS Configuration:
   • Use M1 Configurator to set critical FASTBUS parameters: slave address (unique per module, 0–255), data transfer rate (match the master’s rate, typically 10 Mbps), and data object mapping. Mismatched parameters (e.g., slave address conflict) cause communication failures.
   • Define "safe state" values for M1 variables in case of FASTBUS communication loss (e.g., set "HVAC fan speed" to 0 if the master stops sending commands).
2. Wiring Guidelines:
   • Use twisted-pair shielded cables (0.5mm², RS-485-rated) for FASTBUS connections. Terminate the bus with 120Ω resistors at both the first and last slave modules to prevent signal reflection.
   • Ground the cable shield at one end only (preferably at the master’s enclosure) to avoid ground loops. Keep FASTBUS cables at least 10cm away from high-voltage power cables (e.g., 380V AC) to reduce EMI.
3. Railway-Specific Installation:
   • For rail vehicle applications, mount the module in an EN 50155-compliant enclosure (IP54 or higher) to protect against dust and moisture. Use anti-vibration mounting brackets to reinforce the module in the M1 rack.
   • Ensure the module’s power supply (24V DC) is regulated and filtered (per EN 50155) to withstand voltage surges common in rail systems.
4. Diagnostics & Troubleshooting:
   • Use M1 Configurator’s "FASTBUS Monitor" tool to view real-time data object values and communication status. If data transfer is intermittent, check for loose connectors, damaged cables, or EMI sources.
   • If the watchdog triggers frequently, verify the master’s data transmission interval (must be shorter than the module’s watchdog timeout) and ensure the master is sending valid data frames.
5. Maintenance:
   • Inspect FASTBUS connectors quarterly for corrosion (common in rail environments) and clean with isopropyl alcohol if needed. Tighten terminal screws to 0.8–1.0N·m to prevent vibration-induced loosening.
   • Replace the module if electrical isolation tests fail (use a megohmmeter to verify 2.5kV AC isolation between FASTBUS signals and ground) — degraded isolation risks damage to the M1 controller

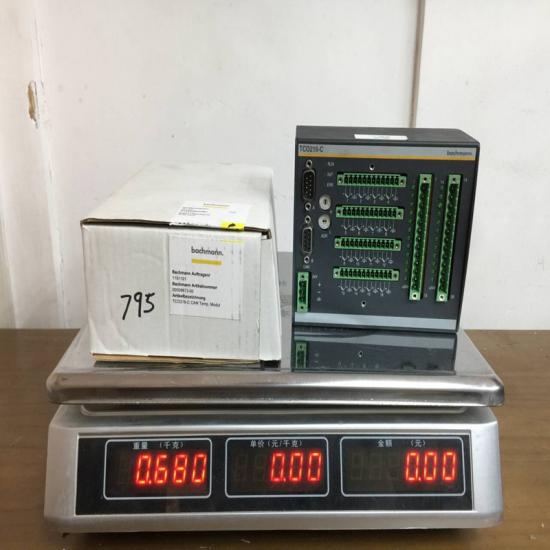

The structure and details of the product：
