Bachmann CS200/N CANopen Slave Module

1. Product Overview

2. Core Specifications

3. Key Functions

3.1 Real-Time CANopen Slave Communication

• PDO for Time-Critical Data: Supports 8 Receive PDOs (for master-sent control commands, e.g., "servo target position") and 8 Transmit PDOs (for slave-sent status data, e.g., "actual motor speed")—cyclic transfer with configurable update rates (1ms ~ 1s) ensures real-time synchronization. This is critical for motion control applications (e.g., 3-axis robotic arms) where millisecond-level timing accuracy is required.
• SDO for Configuration: Uses SDOs for non-real-time tasks such as module parameter setup (e.g., CAN bit rate, PDO mapping) or reading/writing M1 controller variables (e.g., "batch count", "error codes"). Segmented SDO transfer enables large data exchanges (e.g., firmware updates) without disrupting PDO communication.

3.2 Flexible Configuration via LSS & M1 Tools

• Layer Setting Services (LSS): Supports LSS (CiA 305) for easy bus configuration—automatically assigns a unique CANopen node ID (1–127) to the CS200/N, eliminating manual DIP switch setup and reducing commissioning time in large CANopen networks (e.g., 50+ slave devices).
• M1 Configurator Integration: All CANopen parameters (PDO mapping, bit rate, node ID) are managed via Bachmann’s M1 Configurator software. Users can graphically map M1 controller variables to PDOs/SDOs (e.g., map "M1_var_speed" to Transmit PDO 1) without low-level programming, simplifying integration.

3.3 Robustness for Industrial Environments

• EMI Immunity & Isolation: 2.5kV AC isolation on the CANopen interface prevents ground loops (common in distributed networks with multiple power supplies) and protects the M1 controller from voltage spikes. Differential CAN_H/CAN_L signaling resists electromagnetic interference from nearby motors, inverters, or power cables—ensuring stable communication in noisy factory environments.
• Bus Fault Tolerance: Includes built-in error detection (e.g., stuff errors, CRC errors) and automatic bus recovery. If the CAN bus is temporarily disrupted, the module buffers PDO data (configurable buffer size) and resumes transmission once the bus is restored, minimizing data loss.

3.4 Diagnostic & Safety Features

• Comprehensive Status Monitoring: Transmits CANopen-specific diagnostic data (e.g., "bus load percentage", "error count") to the M1 controller. LED indicators on the module provide at-a-glance status: green (CAN bus active), red (bus error/fault), and yellow (SDO/PDO activity).
• Emergency Messages: Supports CANopen emergency messages (CiA 301)—if a critical fault occurs (e.g., M1 controller communication loss, module overheating), the CS200/N sends a pre-configured emergency code to the master, triggering immediate alerts (e.g., HMI alarms, machine shutdowns) for safety.

4. Typical Applications

• Multi-Axis Motion Control: Connects the M1 controller (managing 4 servo axes) to a CANopen master motion controller. Receive PDOs carry target positions/speeds from the master, while Transmit PDOs send actual axis positions/torques—enabling synchronized motion for CNC machine tools or robotic assembly lines.
• Distributed Sensor Networks: Integrates 16 temperature/pressure sensors (connected to the M1 controller via I/O modules) into a CANopen network. Transmit PDOs send sensor data to a CANopen master SCADA system for centralized monitoring, while SDOs allow the master to reconfigure sensor thresholds remotely.
• Machine Automation: Acts as a CANopen slave for a packaging machine’s M1 controller—Receive PDOs accept line speed commands from the master, and Transmit PDOs send machine status (e.g., "film roll low", "sealing temperature") to the master HMI.
• Rail Auxiliary Systems: Connects the M1 controller (controlling HVAC/lighting in a rail car) to a train’s CANopen master TCMS (Train Control and Management System). Transmit PDOs send system status, while Receive PDOs receive control commands (e.g., "set HVAC temperature to 22°C").

5. Usage Notes

1. CANopen Network Setup:
   • Enable the 120Ω internal termination resistor (via DIP switch) only if the CS200/N is the first or last device in the CANopen bus. Multiple termination resistors cause signal reflection and communication errors.
   • Set the CAN bit rate to match all devices on the bus (e.g., 500 kbps for motion control, 250 kbps for long-distance networks). Use M1 Configurator or LSS to configure the rate—mismatched rates prevent bus communication.
2. PDO Mapping Best Practices:
   • Prioritize critical data in PDOs (e.g., emergency stop signals, axis target positions) and assign shorter update intervals (1ms–10ms). Non-critical data (e.g., historical error logs) should use SDOs or low-frequency PDOs (100ms–1s) to avoid bus saturation.
   • Ensure PDO data lengths match between the master and slave—for example, a 32-bit "target position" in the master’s Transmit PDO must map to a 32-bit variable in the CS200/N’s Receive PDO.
3. Wiring Guidelines:
   • Use twisted-pair shielded cables (0.2–0.5mm², CANopen-compliant) for the CAN bus. Keep cable length ≤100m for 1 Mbps bit rate (longer lengths require lower bit rates: e.g., ≤500m for 250 kbps).
   • Ground the cable shield at one end only (preferably at the master’s enclosure) to avoid ground loops. Do not route CAN bus cables alongside high-voltage power cables (e.g., 480V AC motor cables) to reduce EMI.
4. Troubleshooting:
   • If the red "bus error" LED is lit: Check for loose connectors, incorrect termination, or a mismatched bit rate. Use a CAN bus analyzer (e.g., Bachmann M1 CAN Monitor) to view error frames and identify faulty devices.
   • If PDO data is lost: Verify the PDO update rate (ensure it is faster than the master’s expected interval) and check the module’s data buffer size—increase the buffer if transient bus disruptions are common.
5. Maintenance:
   • Inspect CAN bus connectors quarterly for corrosion or loose pins (common in industrial environments). Clean connectors with isopropyl alcohol if needed.
   • Monitor bus load percentage via M1 Configurator—keep load <70% to ensure real-time performance. If load is too high, reduce PDO update rates or move non-critical data to SDOs.
   • Replace the module if electrical isolation tests fail (use a megohmmeter to verify 2.5kV AC isolation between CAN signals and ground)—degraded isolation risks damage to the M1 controller or other CANopen devices

The structure and details of the product：

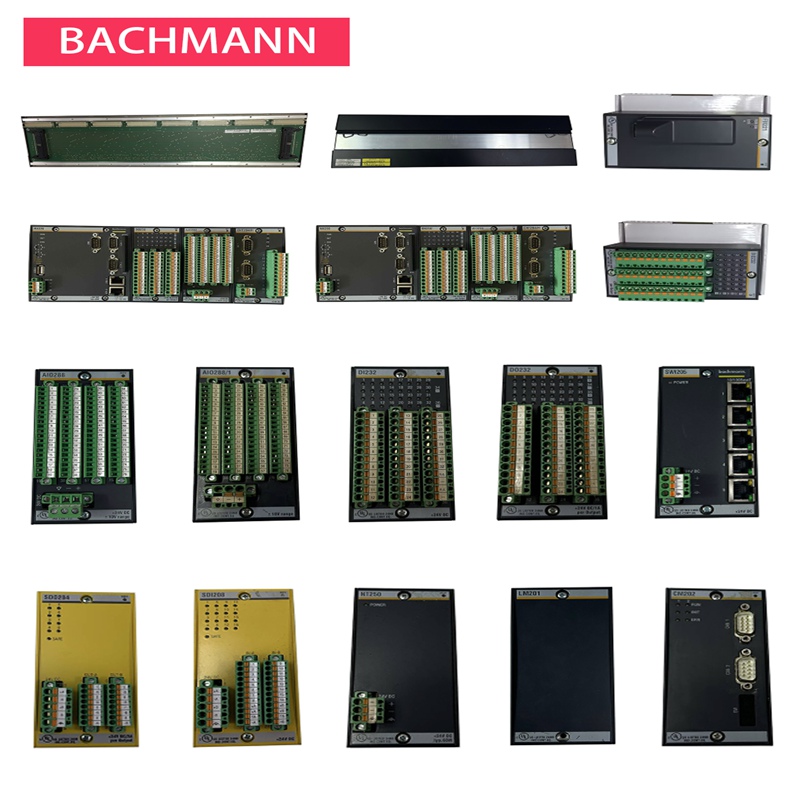

Please make an inquiry for more models
