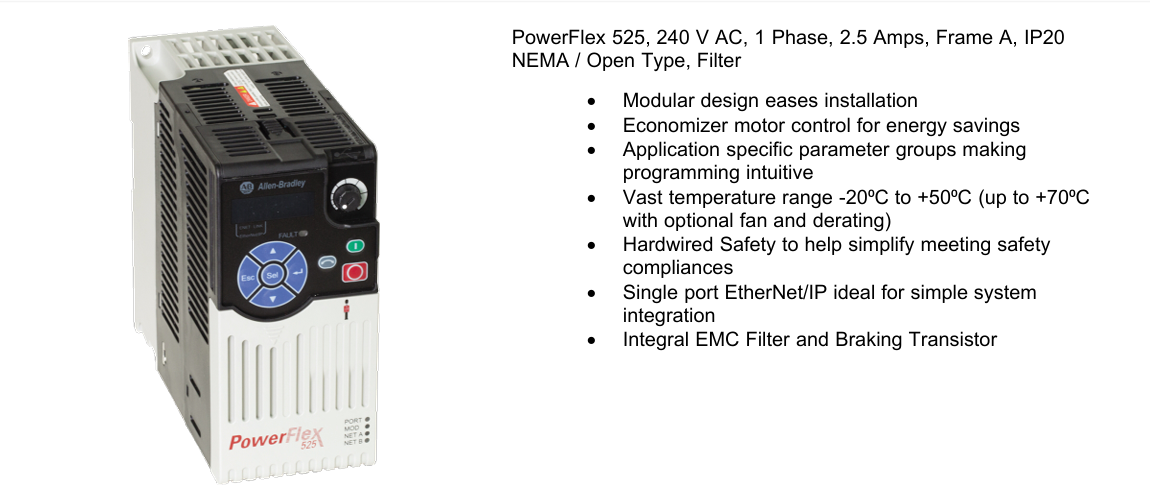

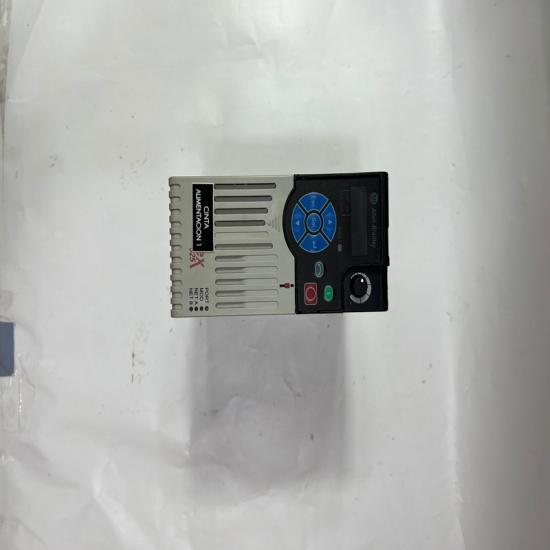

Allen-Bradley 25B-A2P5N114 PowerFlex 525 AC Drive

Product Description

The 25B-A2P5N114 is a PowerFlex 525 series AC variable frequency drive (VFD) designed for industrial motor control applications. This compact, modular drive features embedded EtherNet/IP communication and supports single-phase input (200-240V AC) with a 0.4 kW (0.5 HP) output rating. It is optimized for applications like pumps, fans, conveyors, and mixers, offering energy-efficient motor speed control .

Key Features

Motor Control & Performance
- Sensorless Vector Control (SVC) for improved low-speed torque
- Voltage/Frequency (V/F) control for basic applications
- 150% overload capacity for 3 seconds (110% for 60 seconds)
Communication & Integration
- Embedded EtherNet/IP with dual-port switch for daisy-chaining
- USB programming port for quick parameter adjustments
- Compatible with Studio 5000 Logix Designer for seamless integration with ControlLogix/CompactLogix systems
Safety Features
- Safe Torque Off (STO) function (SIL 3/PLe Cat. 3 certified)
- Hardwired and network-based safety options
Compact & Modular Design
- Removable control module for pre-configuration
- DIN rail or panel mounting options
- IP20 protection (requires enclosure for harsh environments)
Environmental Specifications
- Operating temperature: -20°C to +50°C (with derating above 40°C)
- Storage temperature: -40°C to +70°C
- Humidity: 5-95% non-condensing

Technical Specifications

Parameter	Specification
Model Number	25B-A2P5N114
Input Voltage	200-240V AC, 1-phase, 50/60 Hz
Output Power	0.4 kW (0.5 HP)
Output Current	2.5 A
Control Methods	V/F, Sensorless Vector
Communication	EtherNet/IP, USB
Protection Rating	IP20
Dimensions (W×H×D)	90 × 158 × 130 mm
Weight	1.13 kg

Applications

HVAC systems (fan speed control)
Water treatment (pump control)
Conveyor systems (speed regulation)
Packaging machinery (process synchronization)

Installation & Configuration

Wiring
- Use shielded cables for control signals to reduce EMI
- Ensure proper grounding per NEC/CE standards
Parameter Setup
- Configure motor nameplate data (voltage, current, RPM)
- Adjust acceleration/deceleration ramps for load requirements
Safety Compliance
- Implement STO circuit for emergency stop functionality
- Follow local electrical codes for isolation requirements
