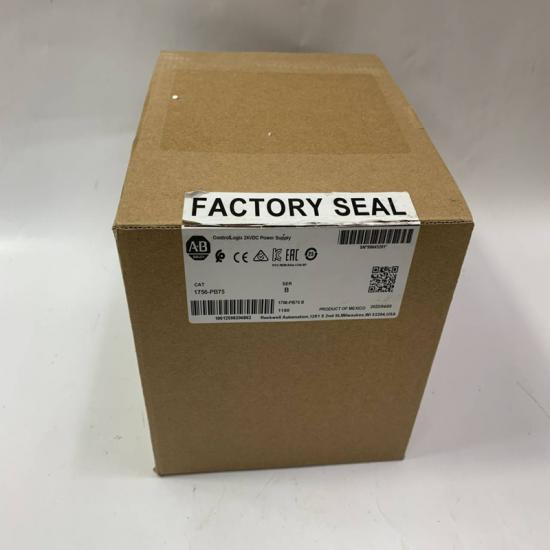

Allen-Bradley 1756-PB75 DC Power Module

The Allen-Bradley 1756-PB75 is a DC power module from Rockwell Automation's ControlLogix series, designed for industrial automation systems. It delivers regulated multi-voltage DC power to the 1756 chassis backplane, ensuring stable operation for controllers, I/O modules, and peripherals in high-reliability applications such as manufacturing, energy, and infrastructure .

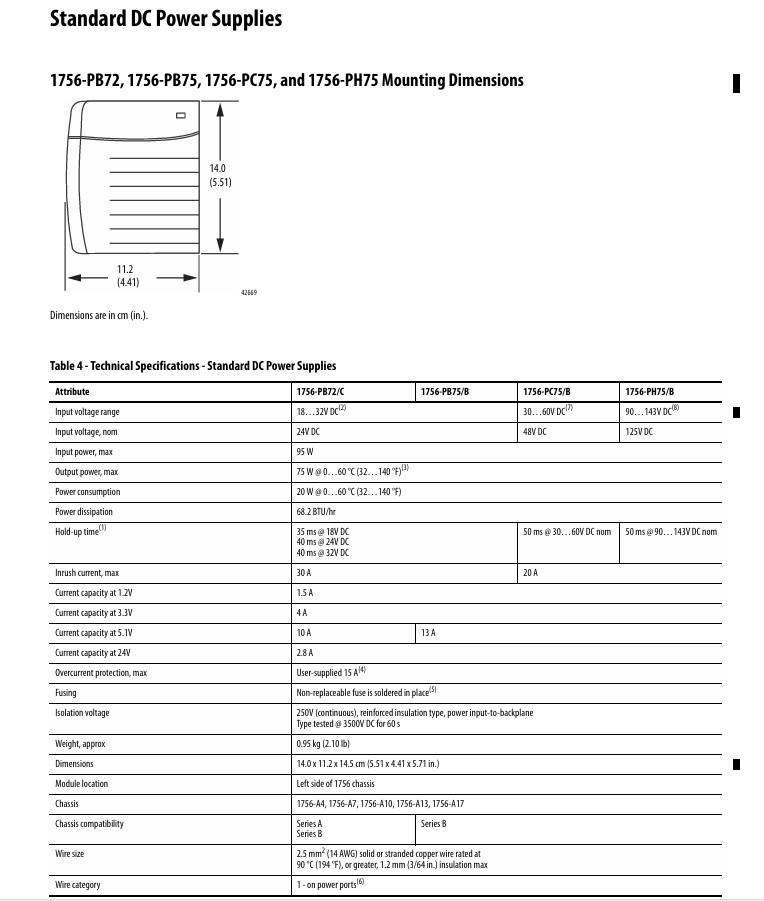

Product Specifications

1. Electrical Parameters

   • Input Voltage: 24V DC (Operating range: 18–32V DC) .

   • Output Capabilities:

     • 1.2V DC @ 1.5A

     • 3.3V DC @ 4.0A

     • 5V DC @ 13.0A

     • 24V DC @ 2.8A

   • Input Power: 95W, with high energy conversion efficiency .

   • Compatibility: B-series chassis, installed directly into the left slot of the backplane .

2. Physical Attributes

   • Weight: Approx. 1kg (estimated based on industry standards) .

   • Dimensions: Standard ControlLogix module size (refer to official datasheets for details).

3. Origin

   • Imported original equipment, manufactured by Rockwell Automation, USA  .

Key Features

• Multi-Voltage Output: Supplies 1.2V/3.3V/5V/24V DC to the backplane, supporting diverse components including controllers, sensors, and communication modules .

• Broad Voltage Adaptation: Input range of 18–32V DC ensures stability amid industrial power fluctuations .

• High Reliability: Integrated overload protection and hot-swappable design minimize system downtime .

• Seamless Integration: Compatible with ControlLogix controllers (e.g., 1756-L7x), I/O modules, and communication interfaces for modular automation solutions

The structure and details of the product：
