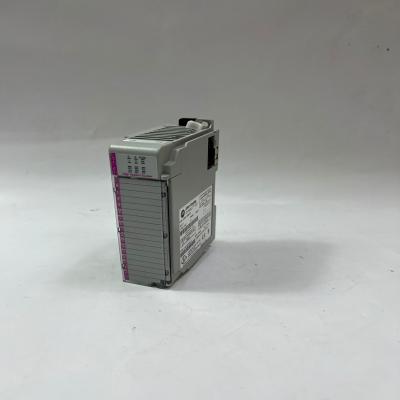

Allen-Bradley 1769-HSC High-Speed Counter Module

Product Description

The 1769-HSC is a high-speed counter module for CompactLogix and MicroLogix 1500 systems, designed for precision motion control and high-speed counting applications in industrial automation.

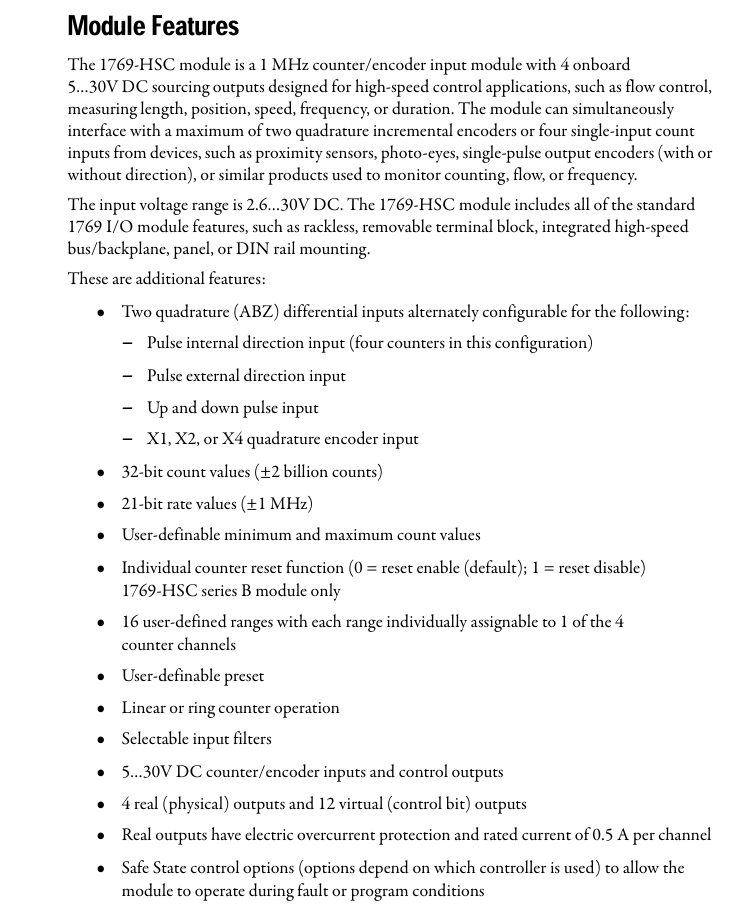

Key Features

High-Speed Counting
- 4 independent counters (32-bit)
- Counting speeds up to 500 kHz (differential) / 200 kHz (single-ended)
- Supports quadrature (A/B phase), pulse+direction, and up/down counting modes
Flexible Input Types
- 8 digital inputs (24V DC)
- Configurable for:
  - 4 differential inputs (500 kHz)
  - 8 single-ended inputs (200 kHz)
- Supports NPN/PNP, sinking/sourcing
Advanced Functionality
- Preset, capture, and gating functions
- Position measurement with linear scaling
- Programmable filters (0.5μs to 16ms)

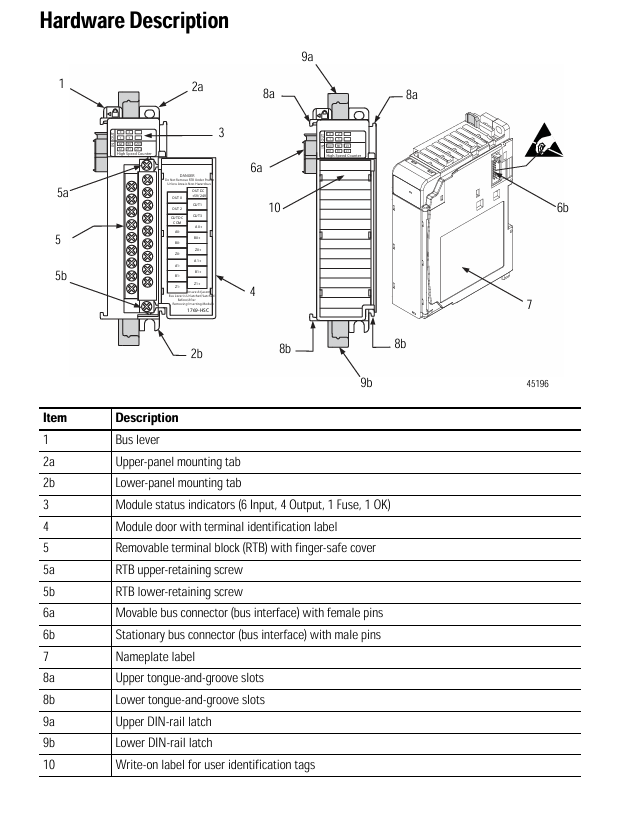

Compact Design
- Single-slot module (35mm wide)
- DIN rail or panel mountable
- Removable terminal block (RTB) for easy wiring

Technical Specifications

Parameter	Specification
Input Voltage	24V DC (10-30V DC)
Input Current	10mA per input (typical)
Count Frequency	500 kHz (differential), 200 kHz (single-ended)
Resolution	32-bit counters
Input Types	Quadrature (X1/X2/X4), pulse+direction, up/down
Isolation Voltage	50V continuous
Operating Temperature	0°C to +60°C
Dimensions (W×H×D)	35 × 118 × 87 mm
Weight	0.18 kg

Applications

Motion Control: Encoder feedback for servo/stepper systems
Production Counting: High-speed part counting
Web Processing: Length measurement
Packaging: Fill control, label positioning
Material Handling: Conveyor speed monitoring

Configuration & Programming

Software Support
- RSLogix 5000 (for CompactLogix)
- RSLogix 500 (for MicroLogix 1500)
- Connected Components Workbench (CCW)
Setup Parameters
- Counting mode selection
- Input filter configuration
- Scaling factors (counts to engineering units)
- Preset values and capture triggers
Wiring Considerations
- Use shielded twisted-pair cables for encoder connections
- Maintain proper grounding
- Follow Rockwell Automation's noise reduction guidelines
