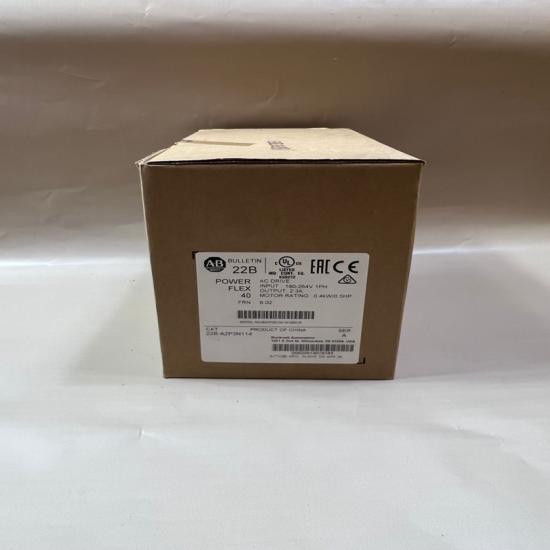

Allen-Bradley 22B-A2P3N114 AC Drive

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

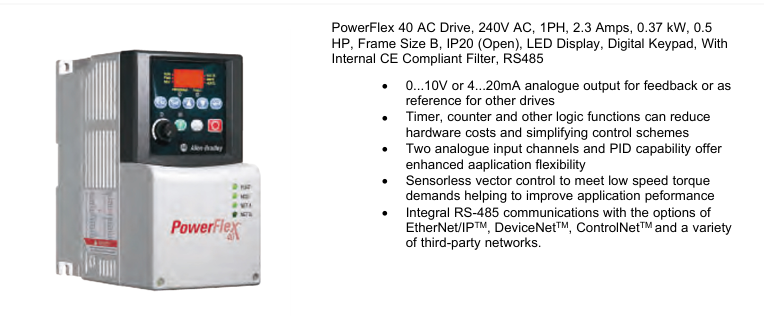

Allen-Bradley 22B-A2P3N114 PowerFlex 40 AC Drive

Product Description

The 22B-A2P3N114 is a PowerFlex 40 series AC drive designed for industrial motor control applications. This compact, cost-effective drive features 0.4 kW (0.5 HP) output with 240V AC input, making it suitable for small motor applications like pumps, fans, and conveyors.

Key Features

1. Motor Control & Performance

   • V/Hz control with slip compensation for smooth motor operation

   • 150% overload for 60 sec (200% for 3 sec) for heavy-start applications

   • PWM output for efficient motor speed regulation

2. Communication & Integration

   • Built-in RS-485 interface (supports Modbus RTU)

   • Compatible with ControlNet, DeviceNet, and EtherNet/IP via optional adapters

3. Compact & Modular Design

   • DIN rail or panel mounting

   • IP20 protection (open-type, requires enclosure for harsh environments)

   • Integrated keypad with potentiometer for quick adjustments

4. Safety & Protection

   • Dynamic braking (requires external resistor)

   • Overvoltage/undervoltage protection

   • Motor thermal overload protection

5. Environmental Specifications

   • Operating temperature: 0°C to 60°C

   • Storage temperature: -40°C to 85°C

   • Humidity: 5-95% non-condensing

Technical Specifications

Applications

• Pump & Fan Control (energy-saving speed regulation)

• Conveyor Systems (adjustable speed for material handling)

• Light Machinery (packaging, mixing, small CNC)

Installation & Usage Notes

1. Wiring

   • Use shielded cables for control signals to reduce EMI

   • Ensure proper grounding per NEC/CE standards

2. Parameter Setup

   • Configure motor nameplate data (voltage, current, RPM)

   • Adjust acceleration/deceleration ramps for load requirements

3. Maintenance

   • Regularly check cooling vents for dust accumulation

   • Monitor DC bus voltage for capacitor health

The structure and details of the product：
