Allen-Bradley 1769-PA2 CompactLogix Power Supply

Product Description

The 1769-PA2 is an AC-input power supply module designed for Allen-Bradley CompactLogix control systems, providing 5V DC (2.0A) and 24V DC (0.8A) outputs to power CompactLogix controllers, I/O modules, and communication interfaces. It is part of the 1769 Compact I/O series, known for its compact design and modular architecture in industrial automation applications .

Key Features

Wide Input Voltage Range
- 85–265V AC input (47–63 Hz), compatible with global power standards .
- Low power consumption: 100VA @ 120V AC or 130VA @ 240V AC .
Dual Output Channels
- 5V DC @ 2.0A (for controller and backplane power) .
- 24V DC @ 0.8A (for I/O module power) .
Compact & Modular Design
- DIN rail or panel mounting (dimensions: ~120 × 75 × 45 mm) .
- Hot-swappable (RIUP compliant) for reduced downtime .
Safety & Protection
- Non-replaceable fuse for overcurrent protection .
- LED status indicators for power monitoring .
Compatibility
- Works with CompactLogix L3x, MicroLogix 1500, and Compact GuardLogix systems .
- Supports up to 16 I/O modules (requires proper power distribution) .

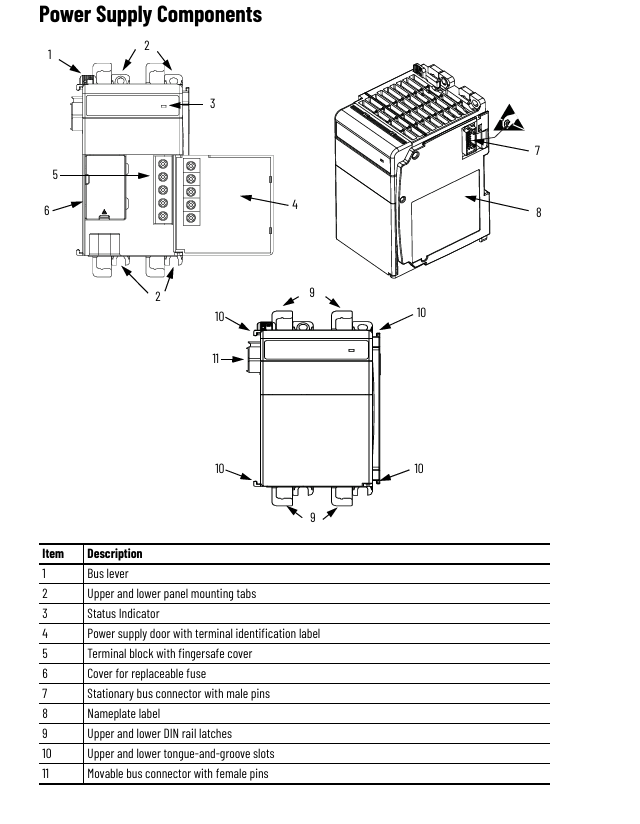

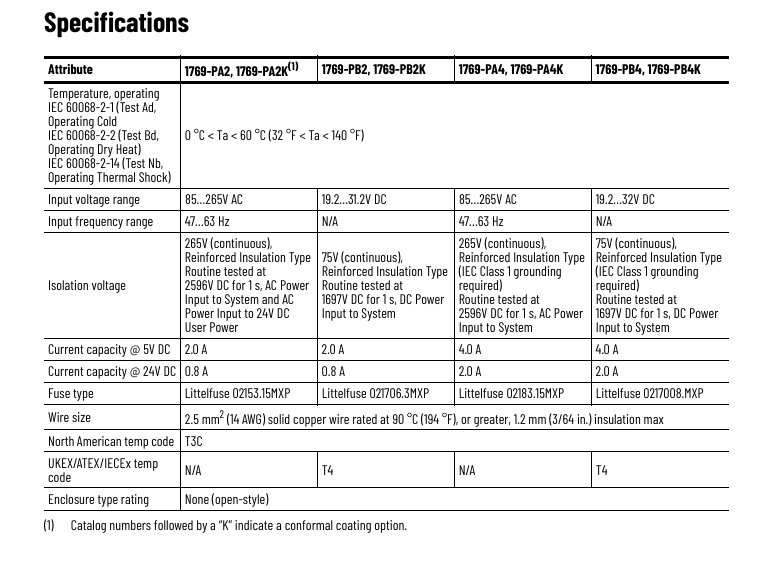

Technical Specifications

Parameter	Value
Model	1769-PA2
Input Voltage	85–265V AC (47–63 Hz)
Output Voltages	5V DC (2.0A), 24V DC (0.8A)
Power Consumption	100VA @ 120V AC, 130VA @ 240V AC
Operating Temp.	-20°C to +60°C
Protection Rating	IP20 (requires enclosure)
Dimensions	~120 × 75 × 45 mm
Weight	~0.5 kg

Applications

CompactLogix L3x Controllers (e.g., 1769-L31, 1769-L32E) .
Distributed I/O Systems (for sensors, actuators, and communication modules) .
Machine Control (packaging, conveyor systems) .

Installation & Usage Notes

Wiring
- Use shielded cables for noise immunity .
- Ensure proper grounding to avoid EMI interference .
Power Distribution
- Avoid overloading (max 2.0A @ 5V DC, 0.8A @ 24V DC) .
Maintenance
- Regularly check terminal connections for corrosion .
