Allen-Bradley 5069-OB16 Compact 5000 Digital Output Module

Product Description

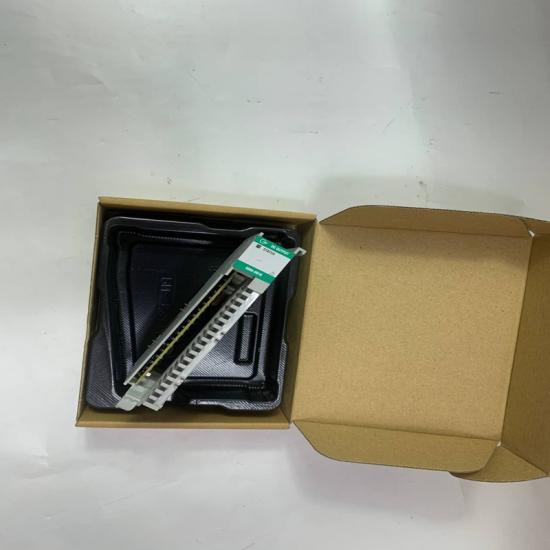

The 5069-OB16 is a 16-channel sourcing (PNP) digital output module from Allen-Bradley’s Compact 5000 I/O series, designed for CompactLogix 5380 and Compact GuardLogix 5380 control systems. It provides high-speed switching (10–32V DC) for industrial automation applications, supporting local or distributed I/O configurations with removable terminal blocks (RTB) for easy wiring .

Key Features

High-Density Outputs
- 16 sourcing (PNP) outputs, each capable of 0.5A @ 10–32V DC (8A max per module) .
- 1A surge current per channel (10 ms duration, repeatable every 2 sec) .
Fast Response & Precision
- Output delay: 100 µs (±10 µs @ 25°C) for ON/OFF transitions .
- Minimum pulse width: 200 µs @ 0.5A .
Robust Protection & Diagnostics
- Per-channel diagnostics for short-circuit, overload, and overheating .
- Overvoltage protection (up to 36V DC) and reverse polarity detection .
Flexible Integration
- Compatible with 5069-RTB18-SPRING (spring clamp) and 5069-RTB18-SCREW (screw terminal) RTBs .
- Supports Studio 5000 programming for seamless configuration .
Industrial Durability
- Vibration resistance: 5g @ 10–500 Hz .
- ESD immunity: 6 kV (contact), 8 kV (air) .

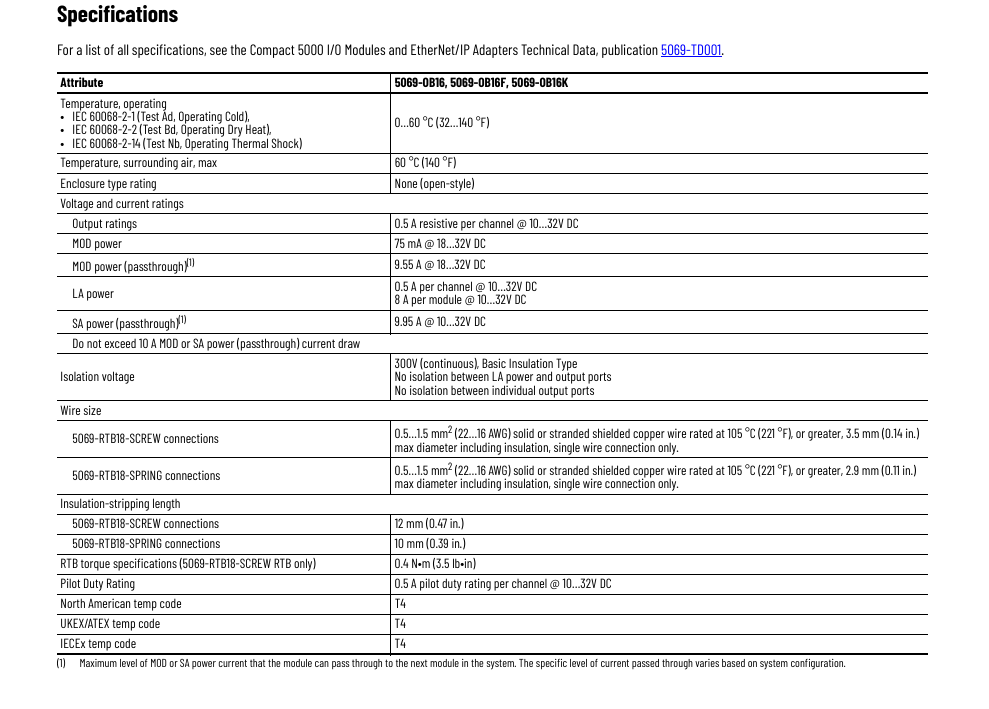

Technical Specifications

Parameter	Value
Model	5069-OB16
Output Type	16 sourcing (PNP)
Voltage Range	10–32V DC
Current per Channel	0.5A (resistive), 1A (surge)
Power Dissipation	3.25W (max)
Isolation	Channel-to-ground: 1,500V AC
Operating Temp.	0°C to +60°C

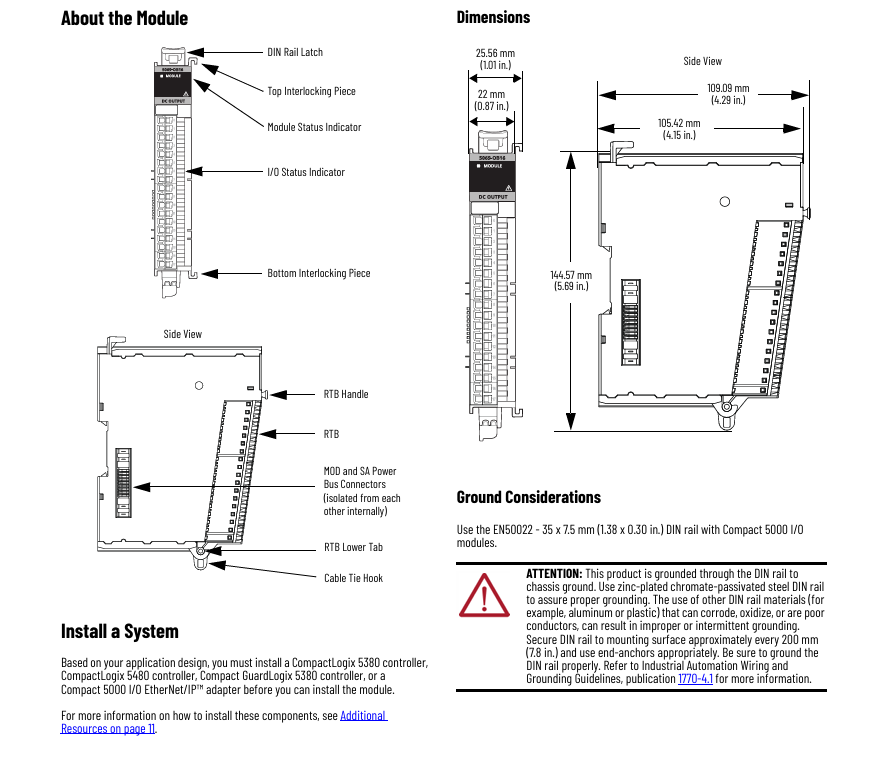

Dimensions	90 × 128 × 46 mm
Weight	175 g (0.39 lb)

Applications

Motor Control: Activating contactors and solenoids .
Packaging Machines: Conveyor belt and actuator control .
Process Automation: Valve and relay switching .

Installation & Usage Notes

Wiring
- Use shielded cables for noise immunity .
- Ensure proper grounding to avoid signal interference .
Configuration
- Program via Studio 5000 with 5069-AENTR communication module for distributed I/O .
Maintenance
- Monitor LED indicators (1 module status + 16 I/O status LEDs) .
- Avoid ESD exposure—handle with anti-static precautions .
