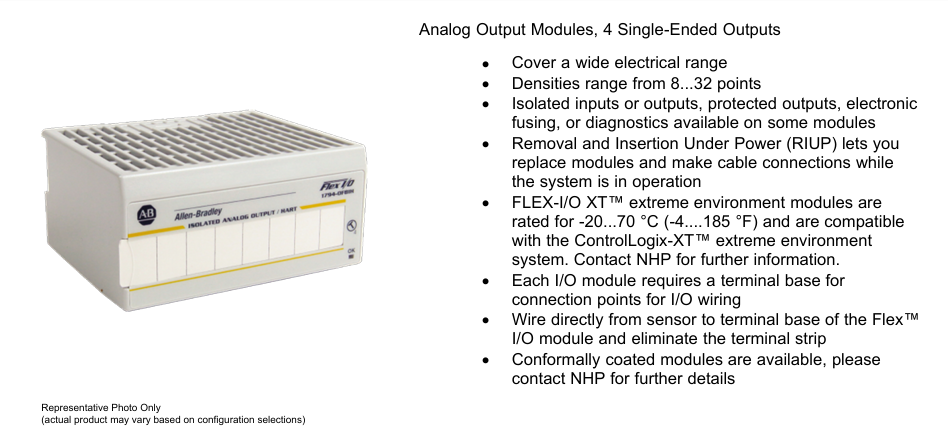

Allen-Bradley 1794-OE4 is a high-performance analog output module in Rockwell Automation's FLEX I/O system, designed for precise process control in industrial automation environments. This module provides 4 independent analog output channels, supporting voltage or current signal output. It can connect to actuators such as control valves, frequency converters, and servo drives, converting digital control signals into precise analog outputs. It is suitable for precise control of continuous process variables such as temperature, pressure, and flow, and is widely used in automation systems in industries such as chemical, power, and food processing.

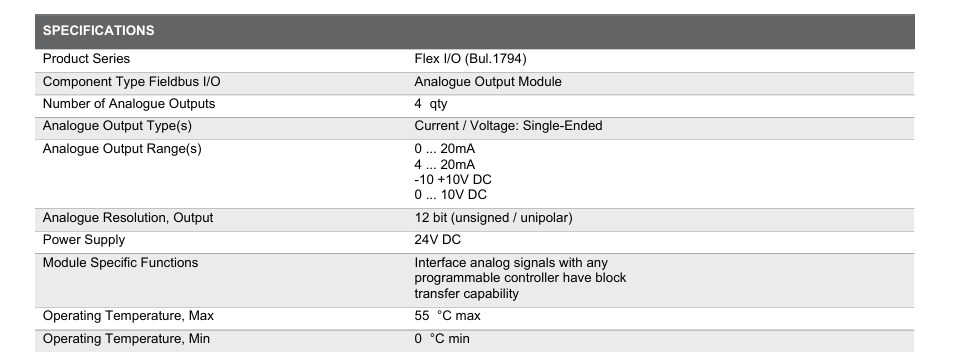

- Channel Configuration: 4 isolated analog output channels, each configurable independently, supporting both voltage and current output modes simultaneously.
- Output Specifications:
- Voltage Output: Selectable 0~10V, ±10V, resolution 12 bits, output impedance ≤10Ω, accuracy ±0.5% full scale.
- Current Output: Selectable 0~20mA, 4~20mA, resolution 12 bits, load impedance ≤500Ω, accuracy ±0.5% full scale.
- Response Time: Output update time ≤5ms (typical), settling time ≤10ms (to ±0.1% of final value).
- Isolation Characteristics: Inter-channel isolation voltage ≥500V AC, channel-to-backplane isolation voltage ≥500V AC, effectively suppressing common-mode interference.
- Operating Environment: Operating temperature -20℃~60℃, storage temperature -40℃~85℃, relative humidity 5%~95% (non-condensing), protection class IP20 (suitable for control cabinet installation).
- Power and Communication: Powered via FLEX I/O backplane bus, no external power required, power consumption ≤5W; supports multiple communication protocols such as DeviceNet, ControlNet, Ethernet/IP, data update rate ≤5ms.
- Status Indication: Each channel is equipped with an LED status indicator (green flashing for normal operation, red steady for fault); the module has overall power and communication status indicators.
- Dimensions: Width×height×depth approximately 45mm×115mm×110mm, DIN rail mounted, supporting FLEX I/O standard racks.
- Certification Standards: UL 508, CSA C22.2 No.14, CE certified, compliant with IEC 61131-2 industrial control equipment standards.
- High-Precision Output Control: 12-bit resolution and ±0.5% accuracy ensure the output signal accurately reflects control commands, meeting the requirements of precise process control (e.g., flow regulation in the pharmaceutical industry).
- Flexible Signal Configuration: Each channel can be independently configured as voltage or current output mode, supporting multiple signal ranges, adapting to different types of actuators without module replacement.
- Strong Anti-Interference Capability: Electrical isolation design between channels and backplane effectively resists electromagnetic interference in industrial environments (e.g., interference from frequency converters and motors), ensuring stable output signals.
- Fast Response Performance: ≤5ms output update time supports high-speed closed-loop control (e.g., temperature PID regulation), responding promptly to system changes and improving control quality.
- Convenient Diagnostic Maintenance: LED indicators and communication status feedback enable quick location of faulty channels or communication anomalies, reducing system downtime.
- Chemical Process Control: Adjusts the opening of the feed control valve of the reactor, precisely controlling the flow through a 4~20mA signal to ensure the stability and safety of chemical reactions.
- Power Systems: Controls the speed regulation system of the steam turbine, outputting a ±10V signal to drive the servo valve, achieving precise regulation of the steam turbine speed to meet grid frequency stability requirements.
- Food and Beverage Processing: In pasteurization equipment, outputs an analog signal to control the steam control valve, precisely maintaining the sterilization temperature (e.g., 85℃±0.5℃) to ensure product quality.
- Water Treatment Systems: Adjusts the stroke frequency of the dosing pump, controlling the frequency converter through a 0~10V signal to achieve precise dosing and ensure water quality compliance.
- Material Testing Equipment: In universal material testing machines, outputs an analog signal to control the hydraulic system pressure, enabling mechanical performance tests such as tensile and compression of materials.
- Analog signal cables must use shielded twisted-pair cables with the shield grounded at one end (control cabinet side), routed separately from digital signal cables (distance ≥150mm) to avoid signal crosstalk.
- In current output mode, ensure the load impedance does not exceed 500Ω to prevent output signal distortion; in voltage output mode, the load impedance must be ≥10kΩ.
- Module installation must ensure firm connection with the FLEX I/O rack and proper insertion of backplane connectors to avoid communication interruptions or output fluctuations due to poor contact.
- During system commissioning, calibrate the output zero point and range via programming software, using a high-precision multimeter to measure the deviation between the actual output value and the set value.
- Regularly (every 6 months recommended) check the signal quality of the output channels, using an oscilloscope to observe the output waveform to ensure no clutter or distortion.
