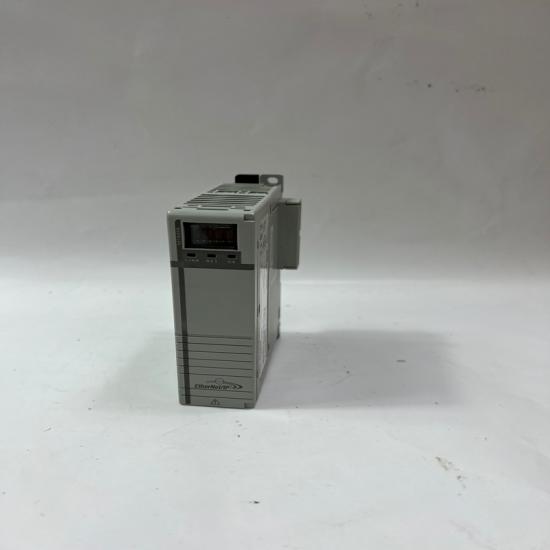

Allen-Bradley 1768-ENBT CompactLogix Ethernet/IP Communication Module

Product Description

The 1768-ENBT is an EtherNet/IP communication module designed for Allen-Bradley CompactLogix control systems, enabling seamless integration of Ethernet/IP networks with CompactLogix L4x controllers. It serves as a bridge for real-time I/O control and data exchange, supporting industrial automation applications such as motion control, distributed I/O, and networked device communication .

Key Features

EtherNet/IP Communication
- 10/100 Mbps RJ45 port for high-speed industrial networking .
- Supports 64 TCP/IP connections and 128 CIP (Logix) connections .
Compatibility & Integration
- Works with CompactLogix L4x (e.g., 1768-L43, 1768-L45) and Compact GuardLogix L4xS controllers .
- Hot-swappable (RIUP compliant) for reduced downtime .
Motion & I/O Support
- Enables SERCOS-based motion control when paired with 1768-M04SE modules .
- Facilitates distributed I/O control via 1769 Compact I/O modules .
Diagnostics & Status Monitoring
- LED indicators for power, network activity, and fault detection .
Robust Industrial Design
- IP20 enclosure (requires protective cabinet for harsh environments) .
- Operating temperature: 0°C to +60°C .

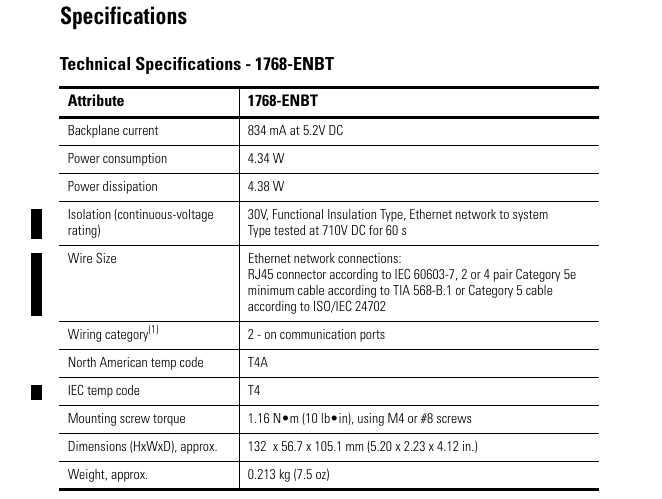

Technical Specifications

Parameter	Value
Model	1768-ENBT
Communication Protocol	EtherNet/IP
Port Speed	10/100 Mbps (auto-negotiating)
Connections	64 TCP/IP, 128 CIP
Power Consumption	5.1V DC @ 834 mA, 4.38W max
Isolation Voltage	30V continuous (707V DC tested for 60 sec)
Dimensions (W×H×D)	132 × 56.7 × 105.1 mm
Weight	0.21 kg

Applications

Factory Automation (real-time control of networked I/O) .
Motion Control (integration with Kinetix 6000 servo drives via SERCOS) .
Process Control (data logging, remote monitoring) .

Installation & Usage Notes

Wiring
- Use shielded Ethernet cables (Cat 5e or higher) for noise immunity .
Configuration
- Program via RSLogix 5000 or Studio 5000 .
Redundancy
- Not natively redundant (requires additional modules for failover) .
