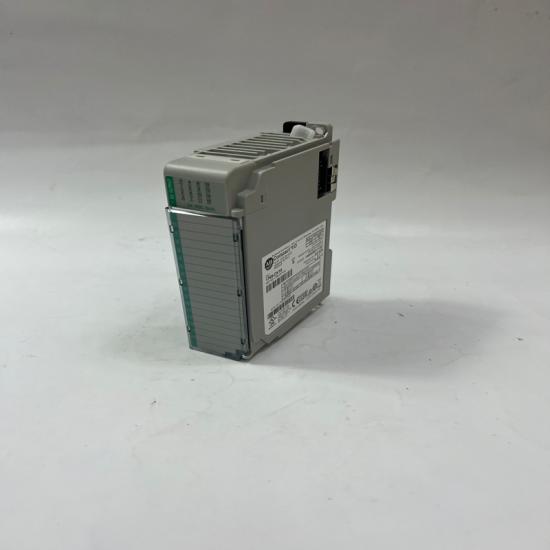

Allen-Bradley 1769-OV16 CompactLogix Digital Output Module

Product Description

The 1769-OV16 is a 16-point sinking (NPN) digital output module designed for Allen-Bradley CompactLogix and MicroLogix 1500 control systems. It provides solid-state (transistor-based) outputs for switching 24V DC loads, making it ideal for high-speed industrial automation applications such as motor control, solenoid activation, and indicator lighting .

Key Features

High-Speed Switching
- ON-state delay: 0.1 ms / OFF-state delay: 1 ms.
- Supports high-frequency switching (≤1 Hz for inductive loads) .
Robust Industrial Design
- Removable terminal block (RTB) for easy wiring .
- DIN rail or panel mounting (compact 35mm width) .
Diagnostics & Protection
- Per-point LED status indicators for troubleshooting .
- Short-circuit and overcurrent protection .
Compatibility
- Works with CompactLogix L3x, Compact GuardLogix, and MicroLogix 1500 .
Environmental Adaptability
- Operating temperature: 0°C to +60°C .
- IP20 protection (requires enclosure for harsh environments) .

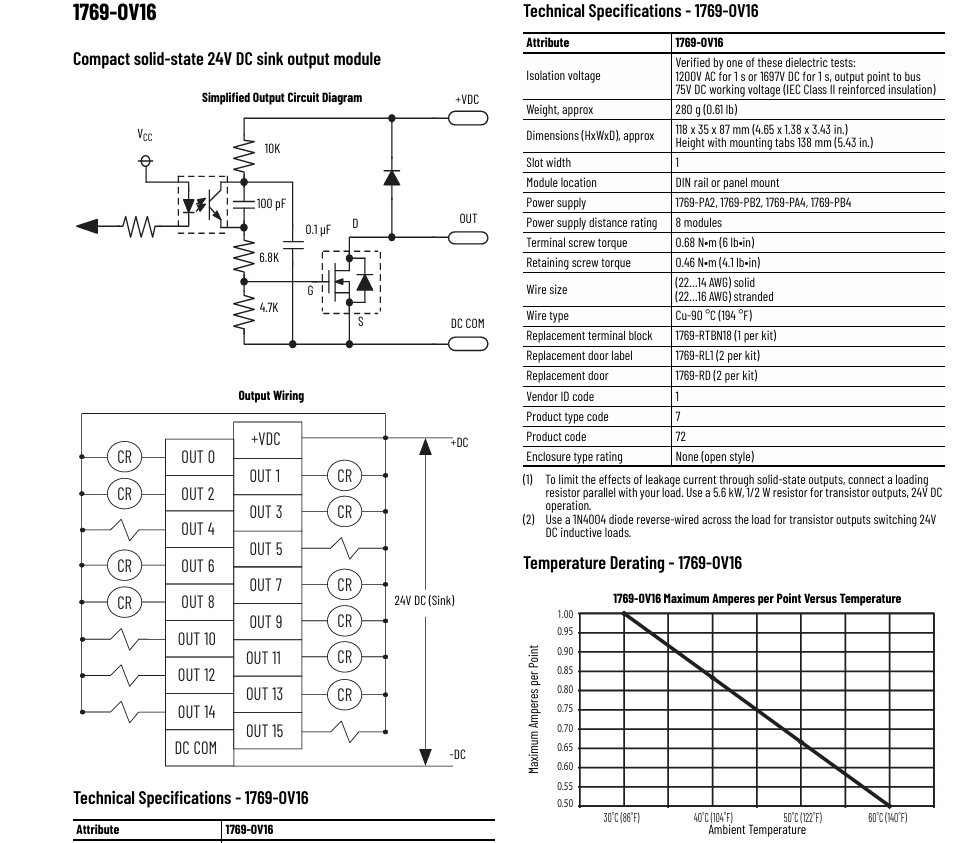

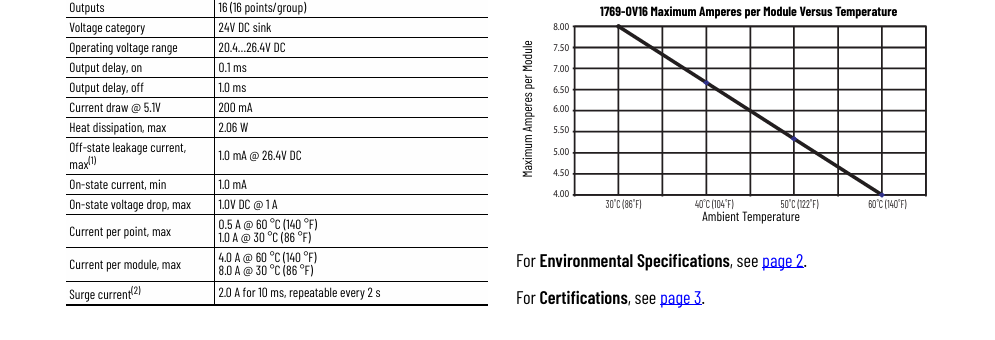

Technical Specifications

Parameter	Value
Model	1769-OV16
Output Type	16 sinking (NPN)
Voltage Range	20.4–26.4V DC
Max Current	0.5A @ 60°C, 1A @ 30°C per point
Leakage Current	≤1 mA (OFF state)
Power Consumption	5.1V @ 200 mA, 2.06W max dissipation
Isolation Voltage	1,500V AC (channel-to-ground)
Dimensions	118 × 35 × 87 mm
Weight	~0.61 kg

Applications

Motor Starters (contactor control) .
Packaging Machines (actuator control) .
Process Automation (valve/solenoid control) .

Installation & Usage Notes

Wiring
- Use shielded cables for noise immunity .
- Terminal torque: 0.68 Nm (6 lb-in) .
Maintenance
- Monitor heat dissipation (max 2.06W) .
Configuration
- Program via RSLogix 5000 or Studio 5000 .
