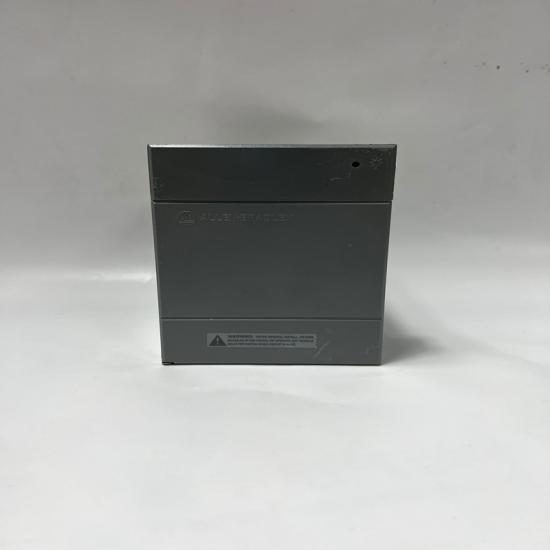

Allen-Bradley 1746-P4 SLC 500 Series Power Modules

Product Description

Detailed Parameters

• Input Specifications：Supports 100-240V AC wide voltage input, frequency 47-63Hz, input current 0.8A (120V AC)/0.4A (240V AC), inrush current ≤40A (20ms).
• Output Specifications：24V DC output, rated current 4A, output voltage accuracy ±5%, ripple voltage ≤100mV peak-to-peak, output power 96W.
• Protection Functions：Overcurrent protection (current limit 5.5A), short-circuit protection (automatic recovery), overvoltage protection (triggered when output voltage ≥28V).
• Operating Environment：Operating temperature 0℃-60℃, storage temperature -40℃-85℃, relative humidity 5%-95% (non-condensing), protection class IP20 (must be installed in control cabinet).
• Mechanical Specifications：Width×height×depth approximately 130mm×80mm×160mm, weight approximately 1.2kg, standard DIN rail mounting, compatible with 1746 series racks.
• Efficiency and Power Consumption：Typical efficiency ≥85%, no-load power consumption ≤5W, compliant with energy efficiency standards.
• Certification Standards：UL 508, CSA C22.2 No.14, CE certified, compliant with IEC 61131-2 industrial control equipment standards.

Advantages and Features

• Wide Voltage Input Compatibility：100-240V AC global universal input range, no adjustment required to adapt to grid voltages in different regions, simplifying equipment selection for multinational projects.
• Stable Output Performance：±5% voltage accuracy and low ripple design provide clean power for SLC 500 controllers and I/O modules, ensuring accuracy of digital and analog signal processing.
• Multiple Protection Mechanisms：Overcurrent, short-circuit, and overvoltage protection comprehensively safeguard the module and load, reducing system downtime caused by power supply failures.
• Compact Integrated Design：Matches the dimensions of SLC 500 series modules, seamlessly embedding into standard racks, saving control cabinet space and simplifying system wiring.
• Industrial-Grade Reliability：Wide temperature operating range and anti-vibration design (5g acceleration, 10-500Hz) adapt to harsh industrial environments with dust and humidity fluctuations.

Application Fields

• Small and Medium Automation Production Lines：Powers SLC 500 controllers and I/O modules in packaging machinery and food processing equipment, supporting logical control and action execution of the equipment.
• Municipal Equipment Control：Used for pump control in urban water supply systems and liquid level monitoring in wastewater treatment plants, ensuring stable operation of equipment under different grid environments.
• Material Handling Systems：Powers control systems for conveyors and elevators, supporting automated material handling and sorting.
• Machine Tool Auxiliary Control：As an auxiliary power supply for CNC machine tools, powers peripheral devices such as cooling systems and tool magazine controls, ensuring overall machine tool stability.
• OEM Equipment Integration：Integrated into small control systems of automation equipment manufacturers, providing standardized power solutions for equipment.

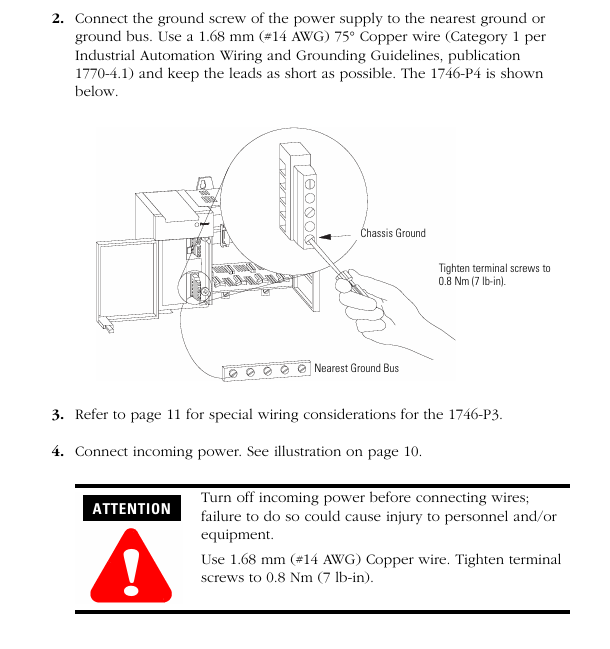

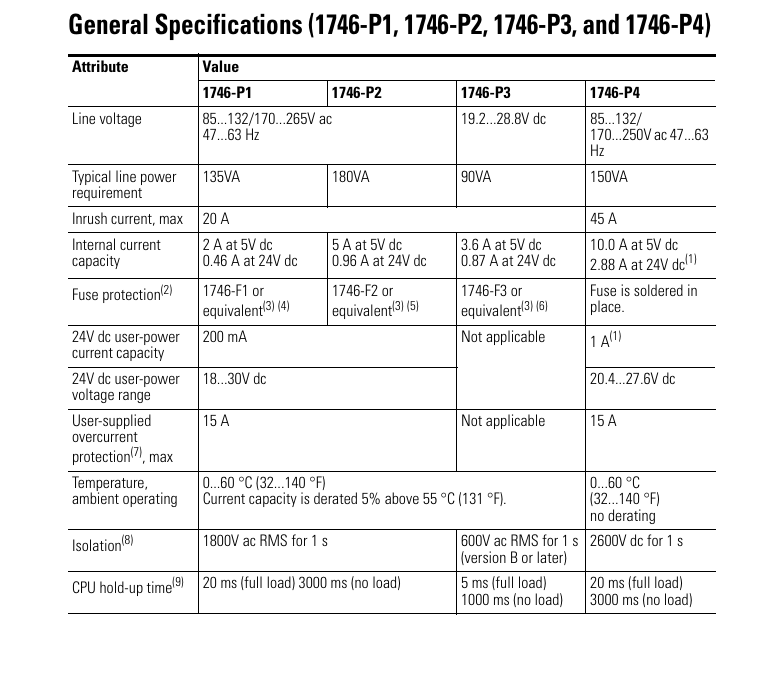

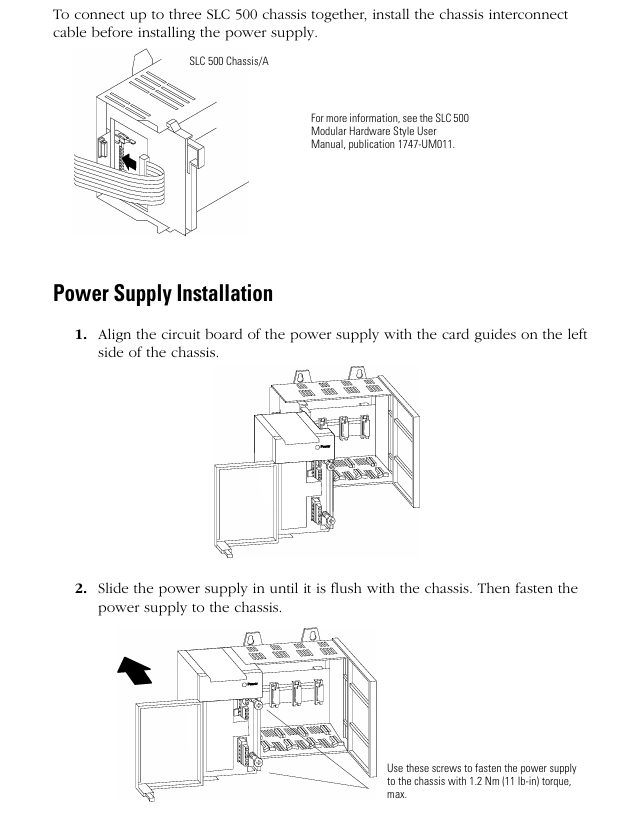

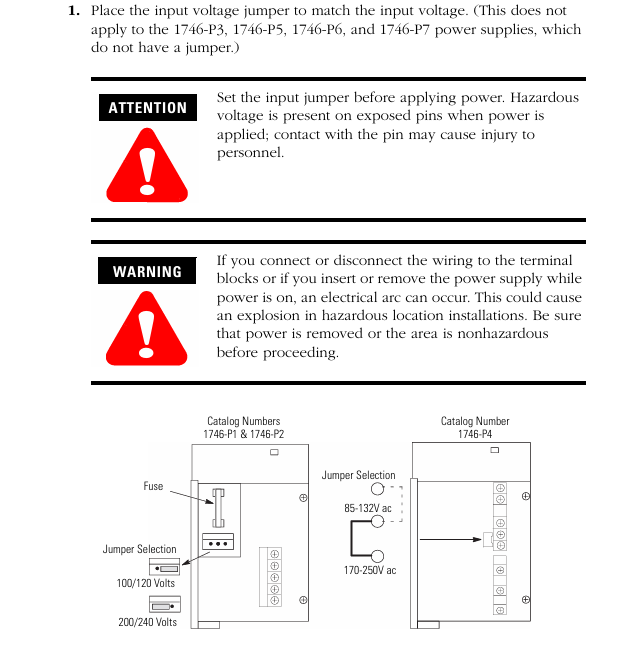

The structure and details of the product：
