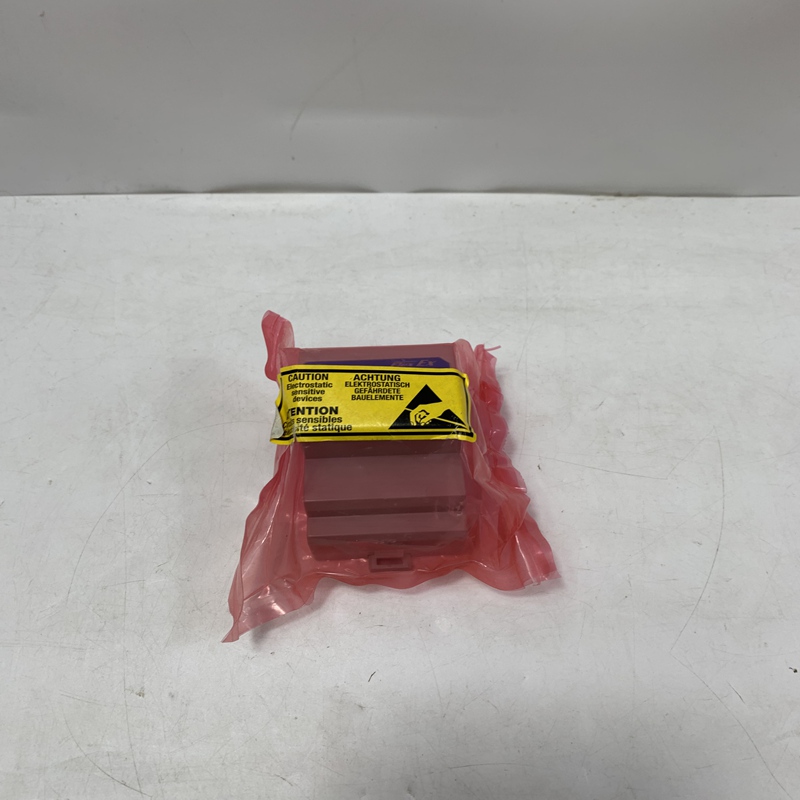

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

Allen-Bradley 1753-IB16 Digital Input Module

Product Description

The 1753-IB16 is a 16-channel digital input module designed for Allen-Bradley MicroLogix PLC systems, providing reliable signal acquisition for industrial automation applications. It is part of the MicroLogix series, known for its compact design, cost-effectiveness, and ease of integration with small to medium-sized control systems .

Key Features

High-Density Inputs
- 16 sinking (NPN) digital inputs (24V DC) .
- Compact design, ideal for space-constrained installations.
Wide Voltage Compatibility
- 10–31.2V DC input range (compatible with industrial sensors and switches).
- Low power consumption (typically 2–12 mA per input).
Robust Industrial Design
- DIN rail or panel mounting (standard for MicroLogix systems).
- LED status indicators for per-channel diagnostics.
Easy Integration
- Compatible with MicroLogix 1100, 1200, and 1400 controllers .
- Supports RSLogix 500 programming software for configuration.
Reliability & Protection
- Short-circuit and overvoltage protection.
- Isolation voltage: 50V (continuous) .

Technical Specifications

Parameter	Value
Model	1753-IB16
Input Type	16 sinking (NPN)
Input Voltage	10–31.2V DC
Current Consumption	2–12 mA per input
Isolation Voltage	50V (continuous)
Operating Temp.	0°C to +60°C
Mounting	DIN rail or panel
Dimensions	~90 × 87 × 40 mm (varies by system)

Applications

Machine Control (sensor interfacing, limit switches).
Packaging Systems (conveyor belt monitoring).
HVAC & Building Automation (status monitoring).

Installation & Usage Notes

Wiring
- Use shielded cables for noise immunity.
- Ensure proper grounding to prevent signal interference.
Configuration
- Program via RSLogix 500 for MicroLogix integration.
Maintenance
- Regularly check terminal connections for corrosion.
