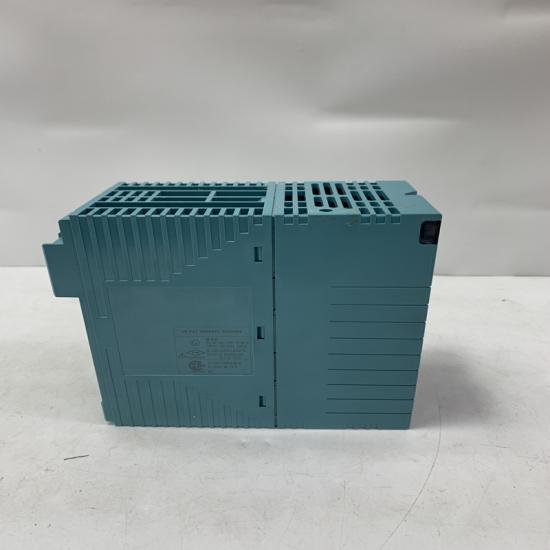

YOKOGAWA AIP504-13 Analog Input Module

Product Overview

Brand: YOKOGAWA
Model: AIP504-13
Series: CENTUM CS 3000 / CENTUM VP FIO
Product Type: Analog Input Module
Function: High-density analog input module used in Yokogawa distributed control systems (DCS). It acquires analog signals from field transmitters and converts them into digital data for process monitoring and control.

Technical Specifications

• Module Type: Analog Input Module
• Compatible Systems:
  • Yokogawa CENTUM CS 3000
  • Yokogawa CENTUM VP
• Input Channels: 16 channels
• Input Signal Types:
  • 4–20 mA DC
  • 1–5 V DC
  • Thermocouple signals
  • RTD signals
  • DC voltage signals
• Input Configuration: Channel configurable
• A/D Conversion: High-resolution analog-to-digital conversion
• Isolation: Field signal and system isolation
• Diagnostics:
  • Input abnormal detection
  • Over-range / under-range monitoring
  • Module self-diagnostics
• Installation: Yokogawa FIO I/O station
• Power Supply: Supplied through I/O station bus
• Operating Temperature: 0°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)

Advantages & Features

High-Density Signal Acquisition

Supports multiple analog input channels in one compact module, reducing cabinet space and improving system efficiency.

Flexible Input Compatibility

Supports various industrial measurement signals, allowing connection with different types of field instruments.

High Measurement Accuracy

Provides stable and accurate analog signal conversion for reliable process monitoring.

Strong Signal Isolation

Isolation design helps reduce electrical interference and improves signal reliability in industrial environments.

Advanced Diagnostics

Built-in monitoring functions help identify wiring faults, signal abnormalities, and module status issues.

Easy DCS Integration

Designed for Yokogawa CENTUM systems, enabling convenient configuration and maintenance.

Typical Applications

• Oil & gas processing plants
• Petrochemical facilities
• Chemical production systems
• Power generation plants
• Water treatment systems
• Pharmaceutical manufacturing
• Industrial process automation
• Factory monitoring systems

Precautions

• Confirm compatibility with Yokogawa CENTUM CS 3000 / CENTUM VP systems before installation.
• Verify input signal type before wiring.
• Check terminal connections carefully to avoid incorrect polarity.
• Use proper grounding and shielding methods to reduce noise interference.
• Disconnect power before removing or installing the module.
• Verify configuration parameters after replacement.
• Avoid installation in areas with excessive vibration, moisture, or corrosive gases.
