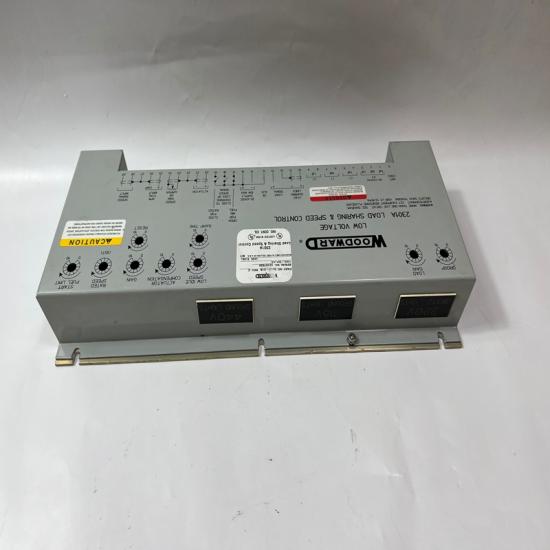

WOODWARD 9907-018 Electronic Speed and Load Sharing Control

Product Overview

The Woodward 9907-018 is a 2301A Series Electronic Load Sharing and Speed Control unit designed to regulate engine or turbine speed and coordinate load sharing between generators operating in parallel. It receives a speed-sensor signal and adjusts the actuator output to maintain the desired speed and load.

Axcontrol

+1

Key Technical Specifications

Axcontrol

+1

Features & Advantages

• Precise speed regulation: Maintains engine or turbine speed in generator applications.

• Load sharing: Helps balance electrical loads among parallel-running generator sets.

• Flexible control modes: Supports isochronous and droop operation.

• Adjustable speed ranges: Multiple ranges can be selected to suit the speed-sensing system.

• Actuator compatibility: Designed for compatible Woodward actuator systems.

Typical Applications

• Diesel and gas generator sets

• Parallel generator systems

• Industrial power-generation plants

• Steam and gas turbine control

• Engine speed and load regulation

Important Notes

• The 9907-018 is a low-voltage 2301A speed and load sharing controller, not a 220 VAC power module.



  Axcontrol

  +1



• Confirm the speed sensor, actuator compatibility, wiring, and control mode before installation.

• Check the unit's nameplate and applicable manual for the exact supply and configuration requirements.
