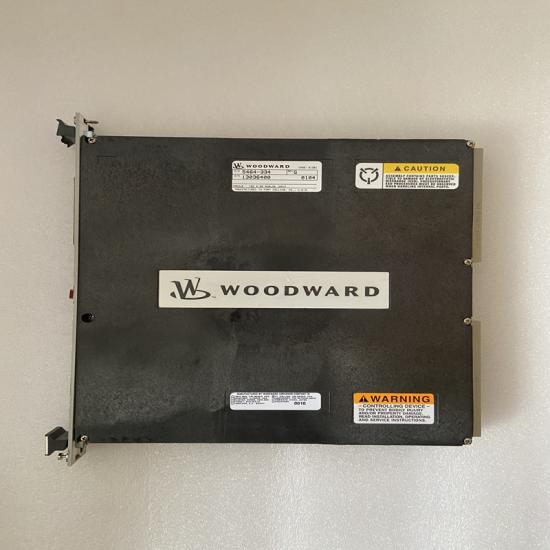

WOODWARD 5464-334 Isolated 8-channel analog input module

• Core Functions​

• Multi-channel Precise Acquisition: It has 8 independent analog input channels, which can simultaneously collect various types of analog signals such as voltage and current. It supports multiple input ranges with a measurement accuracy of up to ±[X]%, capable of precisely capturing subtle signal changes and meeting the multi-parameter monitoring requirements in complex industrial scenarios.​

• Efficient Signal Isolation: Using advanced optoelectronic isolation technology, it achieves electrical isolation between channels and between input and output. The isolation voltage is as high as [X]V, effectively suppressing common-mode interference and electromagnetic interference, ensuring the stability and accuracy of signal transmission, and enhancing the system's anti-interference ability.​

• Flexible Data Conversion: Equipped with a high-performance A/D converter, it can quickly and accurately convert the collected analog signals into digital signals and output them through standard communication interfaces. It supports multiple data formats and communication protocols, facilitating seamless integration with control systems such as PLCs and DCSs, enabling real-time data transmission and processing.​

• Intelligent Diagnosis and Protection: With a built-in fault diagnosis function, it can monitor the working status of each channel in real-time, quickly detect and alarm for faults such as signal abnormalities, disconnections, and out-of-range conditions. It has overvoltage and overcurrent protection functions, effectively protecting the module and connected devices and extending the service life of the equipment.​

• Technical Parameters​

• Input Channels: 8 isolated analog input channels.​

• Input Signal Types: Voltage signals (such as 0 - 10V, ±10V, etc.), current signals (such as 4 - 20mA).​

• Measurement Accuracy: ±[X]% F.S., ensuring the accuracy of measurement results.​

• Isolation Voltage: The isolation voltage between channels and input/output is [X]V, enhancing anti-interference performance.​

• Sampling Rate: Up to [X]SPS, meeting the requirements of fast signal acquisition.​

• Communication Interfaces: Supports communication protocols such as Modbus RTU and CANopen, facilitating system integration.​

• Operating Temperature: -40°C - 70°C, adapting to harsh industrial environments.​

• Power Supply: Powered by DC 24V ±10% with low power consumption and stable operation.​

• Product Advantages​

• High Reliability: Using high-quality industrial-grade components, and through strict testing and verification, it has excellent stability and durability, and can operate stably for a long time in harsh industrial environments.​

• High Integration: The 8-channel integrated design features a compact structure, saving installation space, reducing cabling complexity, and lowering system costs.​

• Flexible Adaptability: It supports multiple types and ranges of analog signals and can be flexibly configured according to actual application requirements, adapting to different industrial devices and systems.​

• Easy Maintenance: The module's status indicator lights are clear and intuitive, facilitating quick judgment of the working status. It supports online hot-swapping, making replacement and maintenance convenient and reducing equipment downtime.​

• Application Scenarios​

• Energy Management Systems: In power plants, substations, and other places, it is used to collect analog signals such as voltage, current, and power, providing accurate data for energy monitoring and optimized scheduling.​

• Chemical Production Processes: It real-time collects analog parameters such as temperature, pressure, and flow in chemical production processes, ensuring the stability of the production process and helping to achieve automated control and safety monitoring.​

• Industrial Automation Production Lines: It collects and processes the signals of various sensors on the production line, providing data support for equipment operation status monitoring, quality control, etc., improving production efficiency and product quality.​
