WOODWARD 5466-315 High-density analog I/O module

• Core Functions​

• High-density Signal Integration: It integrates a large number of analog input/output channels, capable of processing multiple channels of analog signals such as voltage and current simultaneously. This significantly reduces equipment space occupation and cabling complexity, meeting the needs of complex industrial systems for multi-parameter synchronous monitoring and control.​

• High-precision Signal Processing: Using advanced A/D and D/A conversion technologies, it has excellent signal resolution and conversion accuracy. The analog input accuracy reaches ±[X]%, and the output accuracy reaches ±[X]%, ensuring the accuracy of signal collection and output and effectively improving the system control accuracy.​

• Flexible Configuration and Communication: It supports custom configuration of multiple signal ranges and input/output modes, which can be flexibly adjusted according to actual application requirements. Equipped with interfaces for various industrial communication protocols such as Modbus RTU and CANopen, it is convenient for quick integration with control systems such as PLCs and DCSs, enabling real-time data transmission and remote control.​

• Reliable Isolation and Protection: Each channel adopts an electrical isolation design with an isolation voltage of up to [X]V, effectively resisting electromagnetic interference, common-mode interference, etc., and ensuring stable signal transmission. Meanwhile, it has overvoltage, overcurrent, and short-circuit protection functions, which can effectively protect the module and connected devices, enhancing system reliability and service life.
• Key Features and Specifications High-Density I/O: The 5466-315 offers a high density of analog input and output channels. This feature allows efficient integration into control systems. Versatility: Users can configure this module to handle various analog signals, including voltage and current inputs and outputs. It supports different signal ranges and resolutions, accommodating diverse measurement requirements. Accuracy: The 5466-315 ensures reliable and repeatable measurements. Its high accuracy and precision set it apart from other modules. Reliability: Built with robust components, this module excels in industrial environments. Its design guarantees excellent reliability and durability. Compatibility: The 5466-315 integrates seamlessly with a wide range of Woodward controllers. This compatibility simplifies the integration into existing control systems. Diagnostics: Users benefit from built-in diagnostics features. These features help identify and troubleshoot potential issues effectively.

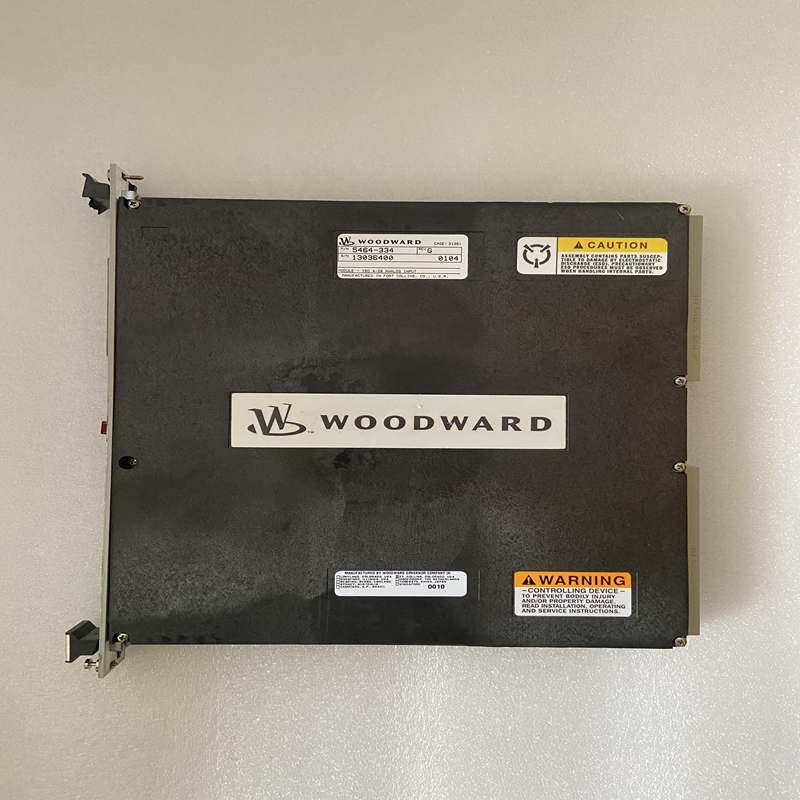

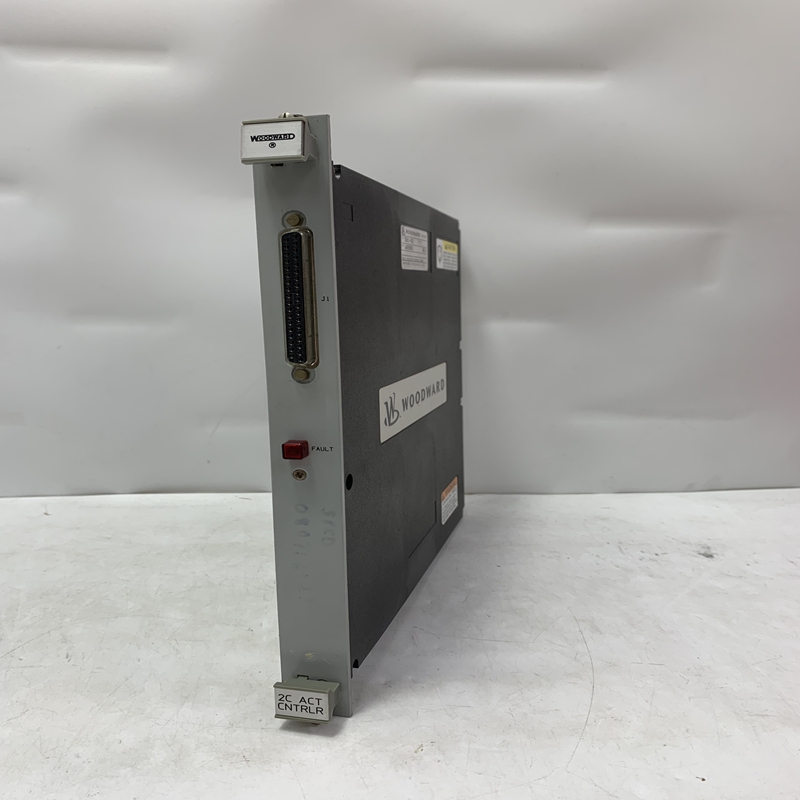

The structure and details of the product：
