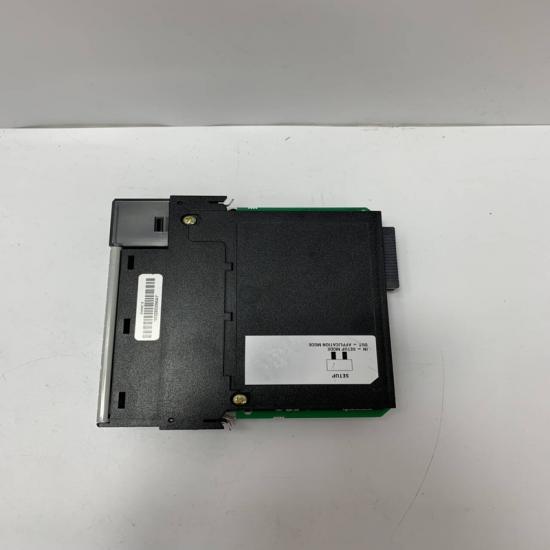

TRICONEX 3101S2 Control Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

• • • • • • • • • • • • • TRICONEX 3101S2 Tri-GP Main Processor Module

                          The TRICONEX 3101S2 is a Tri-GP Main Processor Module for Triconex high-integrity safety control systems. It uses a Triple Modular Redundancy (TMR) architecture to execute safety control logic, manage I/O data and perform continuous system diagnostics.

                          Key Technical Specifications

                          Parameter	Specification
                          Brand	Triconex
                          Model	3101S2
                          Series	Tri-GP
                          Product Type	Main Processor Module
                          Architecture	Triple Modular Redundancy (TMR)
                          Processor	Motorola MPC860
                          CPU Architecture	32-bit
                          Clock Speed	50 MHz
                          Flash PROM	6 MB
                          DRAM	16 MB
                          NVRAM	8 KB
                          System Bus	TriBus
                          Diagnostics	Continuous hardware/software diagnostics
                          Safety Architecture	Fault-tolerant / TMR
                          Mounting	Tricon chassis

                          The processor provides the central computing function for the Tricon system and communicates with I/O modules through the system backplane/TriBus architecture. Published technical data identifies the processor as an MPC860-based 32-bit design with 6 MB Flash, 16 MB DRAM and 8 KB NVRAM.

                          Advantages & Features

                          • Triple Modular Redundant (TMR) architecture
                          • High-integrity fault-tolerant processing
                          • Continuous hardware and software diagnostics
                          • Executes user-defined safety and control logic
                          • Manages system I/O data and communications
                          • Designed for high-availability safety applications
                          • Supports online maintenance in compatible Tricon configurations

                          Typical Applications

                          • Safety Instrumented Systems (SIS)
                          • Emergency Shutdown (ESD)
                          • Fire & Gas (F&G) systems
                          • Burner Management Systems (BMS)
                          • HIPPS applications
                          • Oil & gas
                          • Petrochemical plants
                          • Power generation
                          • Critical industrial process control

                          Important Precautions

                          • 3101S2 is a Main Processor Module, not an I/O module.
                          • Verify that the existing system uses the compatible Triconex Tri-GP architecture before replacement.
                          • Processor configuration and firmware compatibility should be checked before installation.
                          • Follow Triconex procedures for TMR processor replacement and system commissioning.
                          • Use appropriate ESD protection when handling the module.
