TB806 3BSE008536R1 Modular Bus Extension Cable Adapter

1. Product Title

TB806 3BSE008536R1 Modular Bus Extension Cable Adapter (Dedicated for Industrial Bus Interface Conversion & Signal Extension)

2. Product Data

The TB806 3BSE008536R1 is an industrial-grade modular bus extension cable adapter, engineered to realize two core functions: bus interface conversion and signal extension for industrial control systems. It supports mainstream industrial bus protocols (e.g., Profibus, Modbus, EtherNet/IP), enabling seamless connection between modules with different interface types (e.g., D-sub, RJ45) while extending bus signal transmission distance up to 15 meters. With a transmission rate of up to 100Mbps and low signal latency (<1ms), it ensures stable data interaction between PLC/DCS modules and peripheral devices, making it widely applicable in automation control cabinets, production line bus networks, and process control systems.

3. Product Description

This adapter features a compact, rugged housing made of flame-retardant ABS material (compliant with UL94 V-0), ensuring safety in industrial environments. It integrates a built-in signal amplification circuit to compensate for signal attenuation during long-distance transmission, maintaining signal integrity even at the maximum 15-meter extension. The dual-interface design (input: D-sub 9-pin; output: RJ45, customizable per protocol) supports plug-and-play installation, eliminating complex wiring and reducing on-site commissioning time. It is equipped with electromagnetic interference (EMI) shielding (tinned copper shell) to resist industrial noise interference, and operates stably within a temperature range of -25℃~+60℃. Additionally, LED status indicators (power, signal, fault) provide real-time feedback on working conditions, facilitating quick fault diagnosis.

4. Detailed Parameters

Parameter Category	English Parameters
Core Function	Bus interface conversion, signal extension & amplification
Compatible Protocols	Profibus, Modbus, EtherNet/IP
Interface Type	Input: D-sub 9-pin (male); Output: RJ45 (female) (customizable)
Maximum Extension Distance	15 Meters
Transmission Rate	Up to 100Mbps
Signal Latency	<1ms
Operating Voltage	24V DC (±10% tolerance)
Power Consumption	≤2W
Operating Temperature	-25℃~+60℃
Protection Class	IP20 (adapter body)
Housing Material	Flame-retardant ABS (UL94 V-0)
Shielding Performance	Tinned copper shell (EMI-resistant)
Status Indication	3 LEDs (Power: Green; Signal: Blue; Fault: Red)
Dimensions (L×W×H)	75mm×55mm×25mm (typical)

5. Advantages & Features

① Dual-Function Integration: Combines interface conversion and signal extension to simplify system topology; ② Signal Amplification: Built-in circuit compensates for attenuation, enabling 15-meter long-distance transmission; ③ Strong Anti-Interference: Tinned copper shielding resists industrial EMI, ensuring stable data transmission; ④ Flexible Compatibility: Supports multiple bus protocols and customizable interfaces; ⑤ Easy Maintenance: LED indicators enable real-time status monitoring and rapid troubleshooting.

6. Application Fields

① PLC/DCS Systems: Interface conversion and signal extension between different bus modules; ② Smart Manufacturing: Connection between production line control modules and remote sensors/actuators; ③ Energy Industry: Bus extension for wind farm/photovoltaic inverter control system modules; ④ Process Industry: Interface matching for chemical/metallurgical industrial instrument bus networks; ⑤ Infrastructure: Signal extension for water treatment/smart grid control system bus components.

7. Precautions

① Confirm the bus protocol and interface type match the system requirements before installation; ② Ensure the operating voltage (24V DC) aligns with the power supply to avoid adapter damage; ③ Do not exceed the maximum extension distance (15 meters) to prevent signal degradation; ④ Avoid installation near strong magnetic field sources (e.g., large motors, transformers) to prevent EMI-induced malfunctions; ⑤ Regularly check interface connections and LED status to ensure stable operation; ⑥ Do not expose to strong corrosive gases/liquids to prevent housing/material degradation

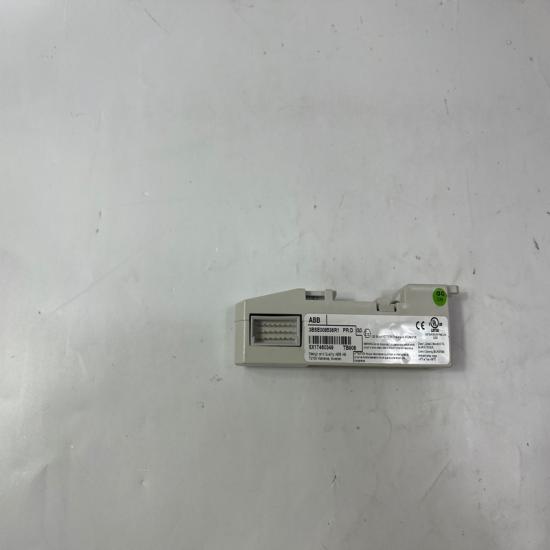

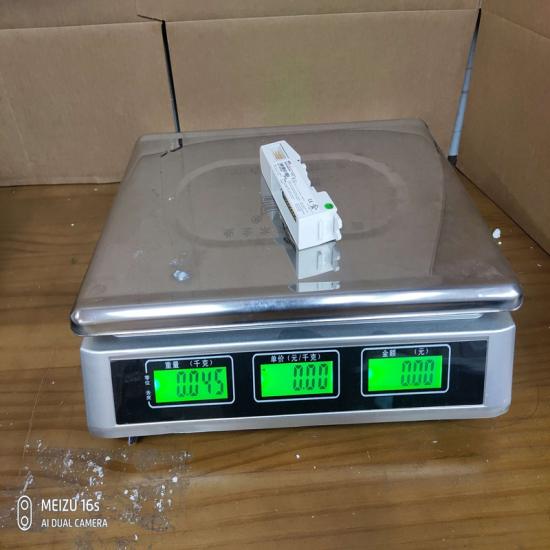

The structure and details of the product：
