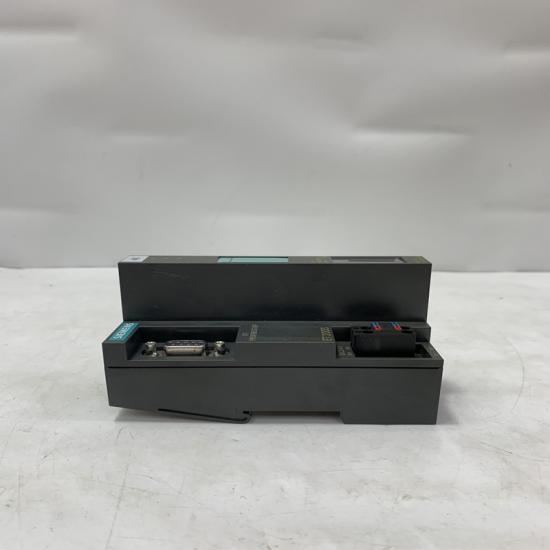

SIEMENS TXM1.16D Digital Input Module

Item NO.:
TXM1.16D
Market Price:
$500
Product Origin:
Germany
Color:
NEW
Product weight:
0.01KG
Lead Time:
In stock

- - - - SIEMENS TXM1.16D Digital Input Module

        Product Overview

        Brand: SIEMENS
        Model: TXM1.16D
        Product Type: Digital Input Module
        Series: TX-I/O™
        Application: Building Automation / HVAC Control / Room Automation Systems

        The SIEMENS TXM1.16D is a 16-channel digital input module designed for Siemens building automation systems. It is part of the TX-I/O™ modular I/O family and is mainly used with Desigo, Desigo Room Automation, UNIGYR and VISONIK systems to monitor dry contact signals from field devices.

        Technical Specifications

        General Data

        Brand: SIEMENS

        Model: TXM1.16D

        Series: TX-I/O™

        Type: Digital Input Module

        Input Points: 16 digital inputs

        Application: Building automation control

        Mounting: TX-I/O terminal base / DIN rail installation

        Protection Class: IP20

        Communication: TX-I/O bus interface

        Digital Input Specifications

        Input Channels

        Number of Digital Inputs: 16 points

        Input Type: Voltage-free / dry contact input

        Contact Type Support:

        Normally Open (NO)

        Normally Closed (NC)

        Latched contacts

        Contact Sensing Voltage: DC 21.5…25 V

        Contact Sensing Current: 1.6 mA

        Maximum Closed Contact Resistance: 200 Ω

        Minimum Open Contact Insulation Resistance: 50 kΩ

        Pulse Counter Function

        The TXM1.16D supports pulse counting functions:

        Counter Channels: Inputs 1–8

        Maximum Counting Frequency: 10 Hz

        Counter Memory: 32-bit

        Counting Range: 0…4.3 × 10⁹ pulses

        Suitable for:

        Energy meter pulses

        Flow meter pulses

        Consumption monitoring devices

        LED Indicators

        Each input channel includes:

        Green LED status indication

        Input signal monitoring

        Module status LED

        Used for:

        Field signal checking

        Maintenance troubleshooting

        Commissioning

        Electrical Specifications

        Power Supply

        Supply Voltage: DC 21.5…26 V

        Power Consumption: Approx. 1.4 W

        Protection:

        Terminal protection against short circuit

        Protection against incorrect AC/DC 24 V wiring

        Communication Interface

        TX-I/O Bus

        Supports connection with Siemens building automation controllers:

        Compatible systems:

        Siemens Desigo

        Desigo Room Automation

        UNIGYR

        VISONIK

        Functions:

        Digital signal transmission

        Module identification

        Input status monitoring

        System diagnostics

        Mechanical Specifications

        Installation: DIN rail mounting with TX-I/O base

        Terminal Type: Rising cage terminals

        Wire Connection:

        Solid conductor: 0.5…4 mm²

        Stranded conductor: 0.5…2.5 mm²

        Maximum Cable Length: 300 m

        Features & Advantages

        16-Channel High Density Input

        Provides 16 digital monitoring points in one compact module.

        Flexible Dry Contact Monitoring

        Supports switches, sensors, alarms and status contacts.

        Pulse Counting Capability

        Allows integration of utility meters and pulse-output devices.

        Easy System Integration

        Designed for Siemens TX-I/O building automation platforms.

        Efficient Maintenance

        Individual LED indicators simplify troubleshooting.

        Typical Applications

        Building management systems (BMS)

        HVAC monitoring

        Fan coil unit control

        Air handling systems

        Energy monitoring

        Lighting control systems

        Access control monitoring

        Alarm monitoring

        Compatible Equipment

        Commonly used with:

        Siemens Desigo automation stations

        Siemens TX-I/O controllers

        Siemens building automation systems

        HVAC field devices

        Dry contact sensors

        Installation Precautions

        Confirm compatibility with Siemens TX-I/O system before installation.

        Use only voltage-free/dry contact signals.

        Do not apply external voltage directly to digital inputs.

        Check bus connection and addressing settings.

        Verify input wiring before commissioning.

        Ensure cable length does not exceed recommended limits.

        Disconnect power before replacing the module.
