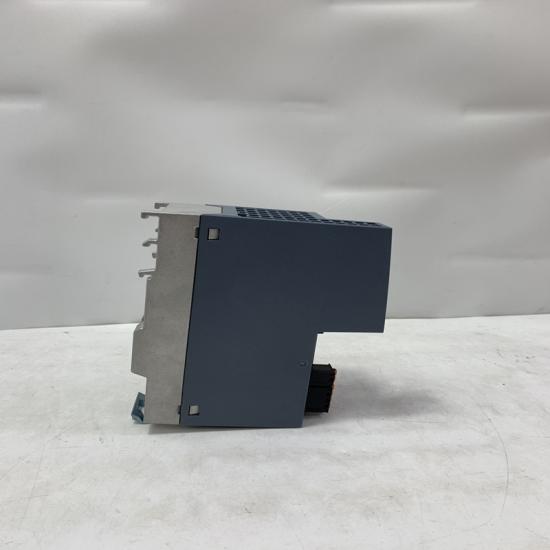

Siemens 6ES7531-7QD00-0AB0 Analog Input Module

Siemens 6ES7531-7QD00-0AB0 Analog Input Module

Product Description
Siemens 6ES7531-7QD00-0AB0 is a SIMATIC S7-1500 SM 531 Analog Input Module (AI 4xU/I/RTD/TC ST) designed for high-precision analog signal acquisition in industrial automation systems. It supports voltage, current, resistance temperature detector (RTD), and thermocouple measurement, providing flexible data acquisition for process control applications.

Technical Parameters

• Brand: Siemens
• Model: 6ES7531-7QD00-0AB0
• Product Type: Analog Input Module (AI)
• Series: SIMATIC S7-1500 / SM 531
• Analog Input Channels: 4 channels
• Resolution: 16 bit
• Accuracy: ±0.3%
• Input Types:
  • Voltage input
  • Current input
  • RTD temperature measurement
  • Thermocouple measurement
• Current Input Range:
  • 0…20 mA
  • 4…20 mA
  • ±20 mA
• Voltage Input Range:
  • ±80 mV
  • Configurable voltage measurement
• RTD Support: Pt100, Pt200, Pt500, Pt1000, Ni100/Ni1000 (depending on configuration)
• Thermocouple Support: Types B, E, J, K, N, R, S, etc.
• Diagnostics Function: Supported
• Hardware Interrupts: Supported
• Common Mode Voltage: 10 V
• Connection: Push-in front connector included
• Mounting: S7-1500 rack installation
• Protection Degree: IP20
• Weight: Approx. 0.384 kg

Advantages & Features

• Original Siemens SIMATIC S7-1500 analog input module
• Supports multiple signal types in one module
• High 16-bit resolution for accurate measurement
• Suitable for temperature, pressure, flow, and process monitoring
• Integrated diagnostics improve troubleshooting efficiency
• Hardware interrupt function enables fast response
• Flexible configuration through TIA Portal software
• Compact design saves control cabinet space

Applications

• Industrial automation systems
• Process control systems
• Temperature monitoring equipment
• Chemical and pharmaceutical industries
• Water treatment systems
• Energy management systems
• Factory production lines
• Siemens S7-1500 PLC control cabinets

Notes

• Confirm compatibility with the S7-1500 CPU before installation.
• Configure correct input signal type in TIA Portal.
• Use shielded cables for analog signal wiring.
• Check sensor type and measuring range before connection.
• Disconnect power before installation or maintenance.
