SIEMENS 6ES7214-1AD22-0XB0 CPU 224 Compact Unit

Product Description

The SIEMENS 6ES7214-1AD22-0XB0 is a compact, high-performance PLC from the SIMATIC S7-200 series, designed for industrial automation and control applications. This CPU 224 model features 14 digital inputs (DI), 10 transistor outputs (DO), and an integrated RS-485 interface for communication. It supports PROFIBUS DP expansion and is ideal for small to medium automation tasks, offering reliable processing and real-time control capabilities .

Key Features & Advantages

1. High-Speed Processing & Real-Time Control

   • 6 high-speed counters (up to 30 kHz) for precise motion control (e.g., encoders, servo drives) .

   • 2 pulse outputs (20 kHz) for stepper/servo motor control .

   • Interrupt-driven I/O for rapid response to process signals .

2. Integrated Communication & Expandability

   • RS-485 interface supports PPI, MPI, and FreePort protocols (for ASCII/Modbus communication) .

   • PROFIBUS DP expandable via EM 277 module .

   • Up to 7 expansion modules (I/O, analog, communication) .

3. Robust Memory & Data Retention

   • 8 KB program memory / 5 KB data memory (expandable) .

   • Super capacitor backup (retains data for ~5 days) or optional battery module (extends backup to 200 days) .

   • EEPROM storage for program and recipe retention .

4. User-Friendly Programming & Diagnostics

   • Programmable via STEP 7-Micro/WIN software .

   • Integrated real-time clock for time-stamped logging .

   • Two analog potentiometers for manual parameter adjustment .

5. Versatile Power & I/O Configuration

   • 24V DC power supply (20.4–28.8V DC) with 280 mA sensor supply .

   • 14 digital inputs (24V DC, configurable for pulse capture) .

   • 10 transistor outputs (0.75A, suitable for high-speed switching) .

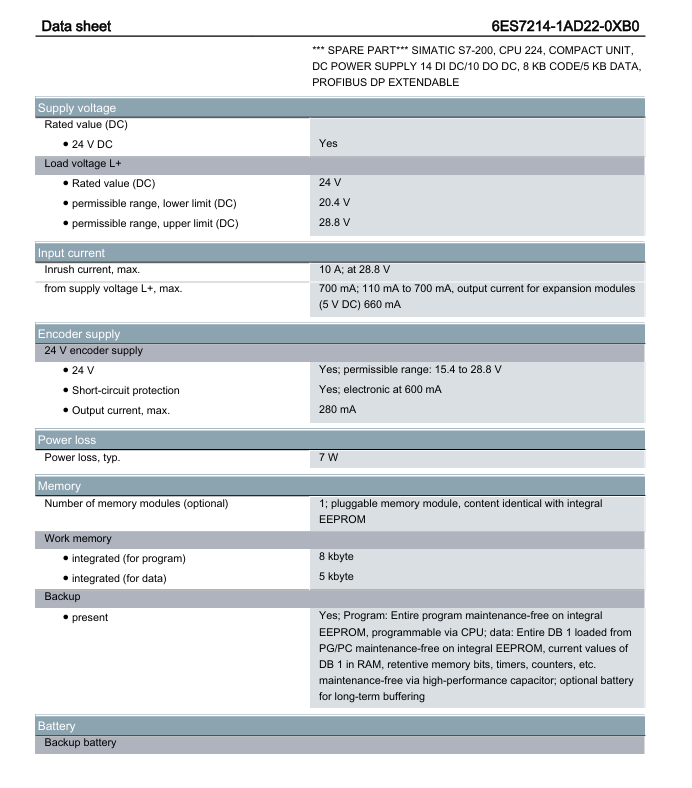

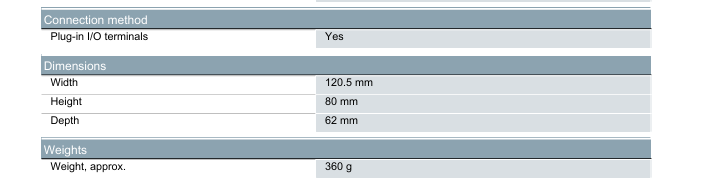

Technical Specifications

Application Fields

• Industrial Automation (conveyors, packaging machines) .

• Building Management (HVAC, lighting control) .

• Motor Control (pumps, fans, servo drives) .

• Process Monitoring (data logging, alarm systems) .

Installation & Safety Notes

• Power Supply: Ensure voltage stays within 20.4–28.8V DC to avoid damage .

• Environment: Operate at 0–55°C; avoid dust/moisture (IP20 rating) .

• Wiring: Use shielded cables for analog signals to reduce noise .

• Backup: For long-term data retention, install the battery module .

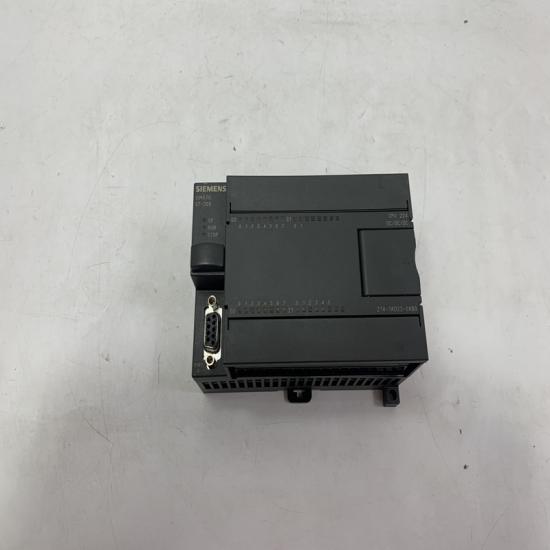

The structure and details of the product：
