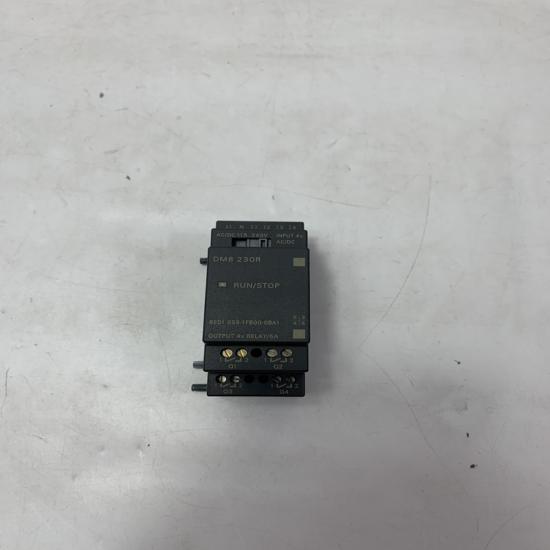

SIEMENS 6ED1055-1FB00-0BA1 DM8 230R Expansion Module

Product Description

The SIEMENS 6ED1055-1FB00-0BA1 is a digital I/O expansion module from the LOGO! series, designed to extend the input/output capabilities of LOGO! logic controllers. This module provides 4 digital inputs (DI) and 4 relay outputs (DO), supporting 230V AC/DC power supply, making it suitable for industrial automation and building control systems .

Key Features & Advantages

Flexible Power & I/O Configuration
- Power Supply: Supports 115V/230V AC/DC, with a wide input range (100–253V DC / 115–230V AC) .
- Digital Inputs (4x): Compatible with AC/DC signals, allowing connection to sensors and switches.
- Relay Outputs (4x): Each relay can handle 5A resistive loads and 3A inductive loads, suitable for motor starters, solenoids, and lighting controls .
Compact & Easy Installation
- DIN rail mounting (35mm), requiring 2 TE (36mm width) of space .
- Compact dimensions (90 x 36 x 55 mm), ideal for control cabinets with limited space .
Robust & Reliable Performance
- IP20 protection against dust and accidental contact .
- Wide operating temperature range (0°C to 55°C), ensuring stability in industrial environments .
- EMC compliance (EN 55011, Class B), reducing electromagnetic interference .
Certifications & Safety Standards
- Complies with UL, CSA, FM, and IEC 61131 standards .
- RoHS-compliant, meeting environmental regulations .

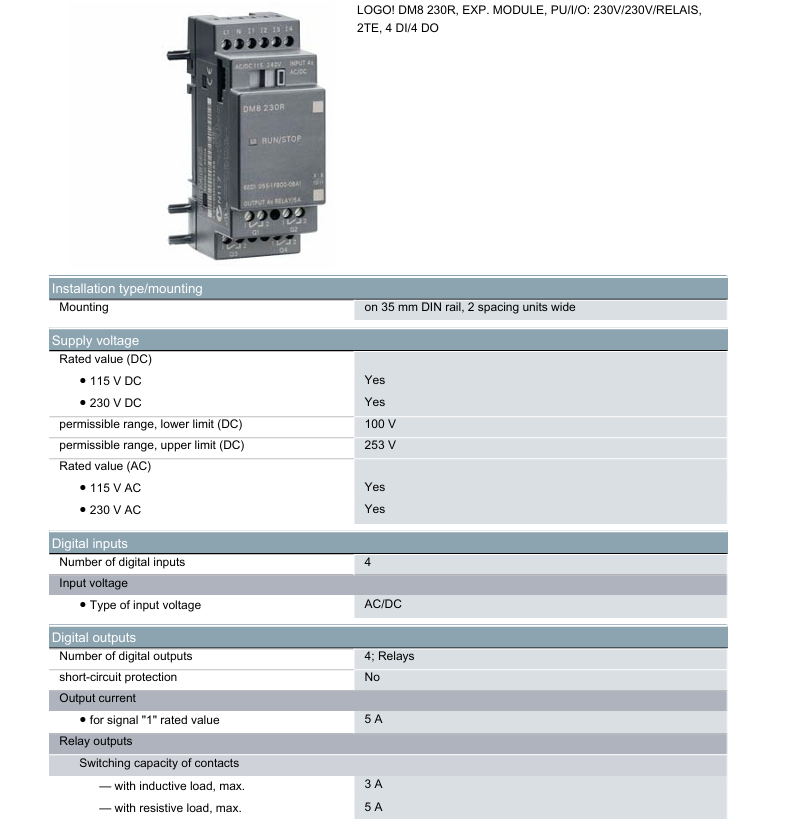

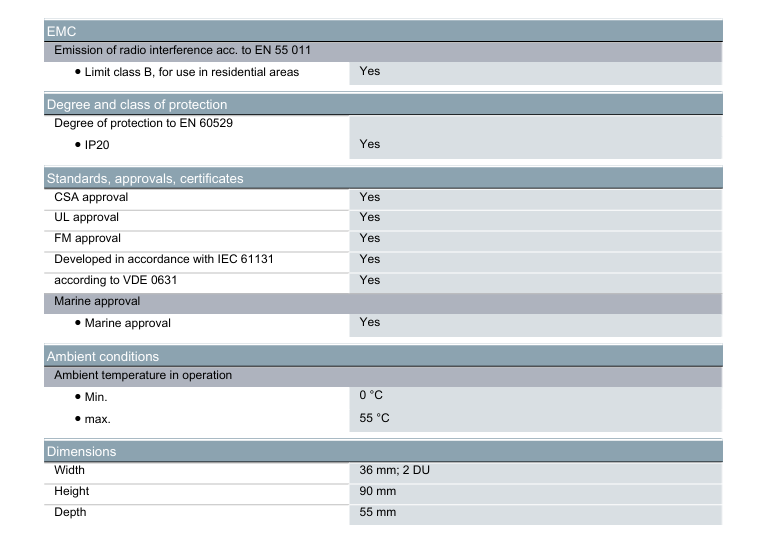

Technical Specifications

Parameter	Specification
Power Supply	115/230V AC/DC (100–253V DC / 115–230V AC)
Digital Inputs	4 (AC/DC compatible)
Relay Outputs	4 (5A resistive / 3A inductive)
Mounting	35mm DIN rail (2 TE)
Dimensions (W×H×D)	36 × 90 × 55 mm
Operating Temp.	0°C to +55°C
Protection Class	IP20
Standards	UL, CSA, FM, IEC 61131, RoHS

Application Fields

Building Automation (lighting, HVAC control) .
Industrial Machinery (conveyors, pumps, small motor controls) .
Panel & Relay Control Systems .

Installation & Safety Notes

Ensure proper voltage supply (within 100–253V DC / 115–230V AC) to avoid damage .
Use shielded cables for noise-sensitive applications .
Avoid excessive moisture or dust (IP20 rating) .
For inductive loads, consider external suppression diodes to protect relay contacts .
