SIEMENS 6ES7151-1BA02-0AB0 Interface Module

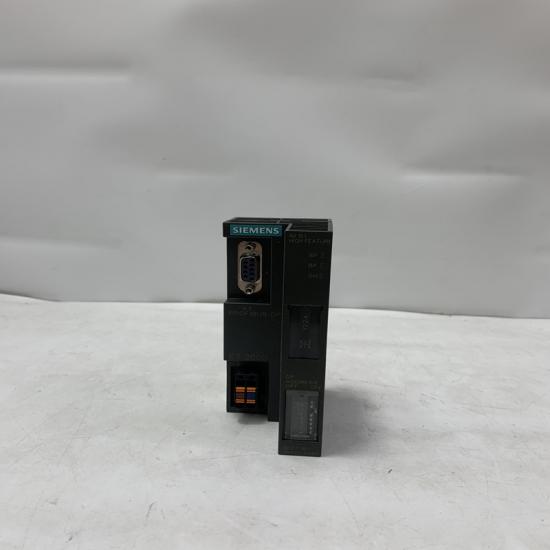

Siemens 6ES7151-1BA02-0AB0 Interface Module (IM151-1 High Feature)





The Siemens 6ES7151-1BA02-0AB0 is a SIMATIC ET 200S Interface Module (IM151-1 High Feature) used to connect an ET200S distributed I/O station to a PROFIBUS DP network. It acts as the communication gateway between the PLC master and the remote I/O modules, enabling fast and reliable data exchange in industrial automation systems.

This version supports high-speed communication and large I/O expansion, making it suitable for complex distributed control systems.

Key Specifications

• Model: 6ES7151-1BA02-0AB0
• Product Type: Interface Module (IM151-1 High Feature)
• System: Siemens SIMATIC ET 200S / PROFIBUS DP
• Communication: PROFIBUS DP
• Transmission Rate: up to 12 Mbit/s
• I/O Data Capacity: up to 244 bytes input / 244 bytes output
• Max Modules Supported: up to 63 ET200S modules
• Bus Interface: 9-pin D-sub connector
• Operating Mode: Isochronous mode supported
• Power Supply: 24 V DC
• Function: Remote I/O station communication gateway

Features & Advantages

• High-speed PROFIBUS DP communication (up to 12 Mbps)
• Supports large ET200S station expansion (up to 63 modules)
• Stable and reliable distributed I/O communication
• Isochronous mode for precise real-time control
• Integrated diagnostics (BF / SF status LEDs)
• Compact modular design for control cabinets
• Easy integration with Siemens S7-300 / S7-400 PLC systems

Applications

• Distributed I/O systems (ET200S)
• Factory automation production lines
• Machine control systems
• Process automation (oil, gas, chemical)
• Power plant auxiliary systems
• Conveyor and material handling systems
• Large-scale industrial PLC networks

Precautions

• Must match correct PROFIBUS address and configuration in STEP 7
• Ensure proper termination resistor at bus ends
• Incorrect wiring may cause BF (Bus Fault) errors
• Use shielded PROFIBUS cables for noise immunity
• Ensure correct firmware/version compatibility with ET200S modules
• Always power down before replacing interface module
