SIEMENS 6EP4437-7EB00-3DX0 Power Supply Module

6EP4437-7EB00-3DX0
6EP4437-7EB00-3DX0

SIEMENS 6EP4437-7EB00-3DX0 Power Supply Module

SIEMENS 6EP4437-7EB00-3DX0 Power Supply Module

  • Item NO.:

    6EP4437-7EB00-3DX0

  • Market Price:

    $790

  • Product Origin:

    Germany

  • Color:

    NEW

  • Product weight:

    0.01KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                                                                                                  •

                                                                                                                                                                                                        • SIEMENS 6EP4437-7EB00-3DX0 Selectivity Module


                                                                                                                                                                                                          image


                                                                                                                                                                                                          Overview


                                                                                                                                                                                                          This is a SITOP SEL1400 8-channel 5A DC selectivity distribution module under Siemens SITOP power system, not a primary AC-DC power supply. It takes 24VDC from main power supplies, splits into 8 independent protected branches, realizes selective circuit protection, branch current monitoring and fault isolation for PLC, sensors, valves and low-power field loads.

                                                                                                                                                                                                          Key Specifications



                                                                                                                                                                                                          Electrical Parameters


                                                                                                                                                                                                          • Input: DC 20.4–30V (rated 24VDC), max input total current 40A
                                                                                                                                                                                                          • Output: 8 independent channels, each channel adjustable trip current 1–5A via potentiometer
                                                                                                                                                                                                          • Output voltage: Stabilized 23.8VDC
                                                                                                                                                                                                          • Protection curve: Current-limiting characteristic (SEL1400 series)
                                                                                                                                                                                                          • Sequential power-on delay: Selectable 25ms / 200ms / 500ms / load-optimized via DIP switch
                                                                                                                                                                                                          • Efficiency: Up to 98%, low power loss
                                                                                                                                                                                                          • Fault trip logic: Overcurrent above set threshold triggers automatic branch cut-off without affecting other channels

                                                                                                                                                                                                          Mechanical & Environmental


                                                                                                                                                                                                          • Dimensions (W×H×D): 72 mm × 80 mm × 80 mm
                                                                                                                                                                                                          • Mounting: Standard 35mm DIN rail
                                                                                                                                                                                                          • Protection grade: IP20 (cabinet internal use only)
                                                                                                                                                                                                          • Wiring: Spring push-in terminals for fast wiring
                                                                                                                                                                                                          • Operating temperature: -25 ℃ ~ +60 ℃
                                                                                                                                                                                                          • Weight: ~0.25 kg
                                                                                                                                                                                                          • Certifications: CE, cULus, DNV GL

                                                                                                                                                                                                          Monitoring & Signal Interfaces


                                                                                                                                                                                                          1. Per-channel LED indicator: Green = normal operation; Red = overcurrent/fault cut-off
                                                                                                                                                                                                          2. Collective fault relay output (NO/NC contact): Central fault signal to PLC/HMI
                                                                                                                                                                                                          3. Reset button: Manual recovery after fault elimination
                                                                                                                                                                                                          4. RJ45 monitoring port: Link to SITOP Manager software for remote load monitoring, data logging and fault diagnosis

                                                                                                                                                                                                          Main Functions


                                                                                                                                                                                                          1. Multi-branch selective power distribution

                                                                                                                                                                                                            Divide single 24VDC main power into 8 isolated load branches. Short-circuit or overload on one channel only cuts off that single loop, avoiding total system blackout.
                                                                                                                                                                                                          2. Adjustable overcurrent protection

                                                                                                                                                                                                            Each channel’s trip current can be set from 1A to 5A to match different loads (sensors, relays, solenoid valves, I/O modules).
                                                                                                                                                                                                          3. Sequential soft start

                                                                                                                                                                                                            Delay power supply to each branch in sequence to reduce overall inrush current, preventing main power supply overload at startup.
                                                                                                                                                                                                          4. Full fault monitoring & remote signalization

                                                                                                                                                                                                            Visual LED fault indication on each channel; collective alarm contact transmits fault status to upper PLC for alarm popup on HMI.
                                                                                                                                                                                                          5. Digital power monitoring

                                                                                                                                                                                                            Via RJ45 communication port, upload real-time channel current, voltage and fault records to PC management software for equipment energy statistics and maintenance traceability.
                                                                                                                                                                                                          6. Hot-restart after fault clearance

                                                                                                                                                                                                            After removing short-circuit/overload, press reset button to restore power to the faulty channel without powering down the whole control cabinet.

                                                                                                                                                                                                          Advantages


                                                                                                                                                                                                          • High selectivity design eliminates full-system shutdown caused by single branch short circuit, greatly reducing production downtime
                                                                                                                                                                                                          • 8-channel integrated compact design saves cabinet space compared with multiple separate circuit breakers
                                                                                                                                                                                                          • Push-in spring terminals cut wiring time without screwdrivers
                                                                                                                                                                                                          • Built-in digital monitoring interface realizes intelligent power management for Industry 4.0 automation lines
                                                                                                                                                                                                          • Wide temperature range adapts to harsh workshop environments (packaging, metallurgy, water treatment)
                                                                                                                                                                                                          • Current-limiting protection curve avoids instantaneous current surge damage to sensitive PLC and sensor equipment
                                                                                                                                                                                                          • Low power loss and high energy efficiency for long-term continuous operation

                                                                                                                                                                                                          Typical Applications


                                                                                                                                                                                                          Automation production line 24V DC load distribution, PLC & ET200SP remote I/O power protection, packaging machinery control cabinets, water treatment DCS control panels, logistics conveying equipment, machine tool auxiliary power distribution, spare selective power distribution module for SITOP power supply systems.

                                                                                                                                                                                                          Distinction Note


                                                                                                                                                                                                          SEL1400 series adopts current-limiting protection, while SEL1200 series uses quick switch-off characteristic; this model is 8×5A version of SEL1400 family.

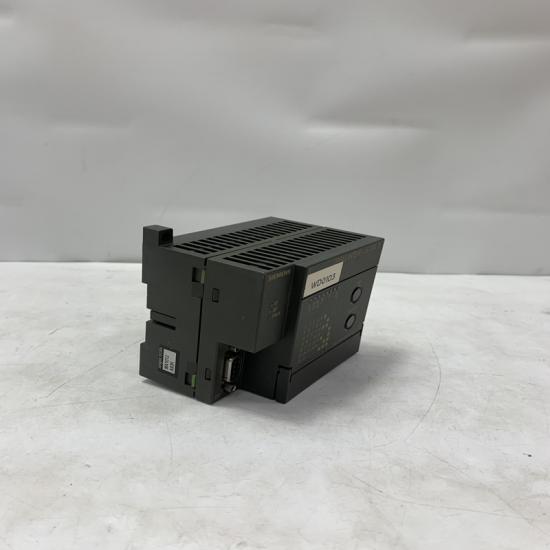

The structure and details of the product：
