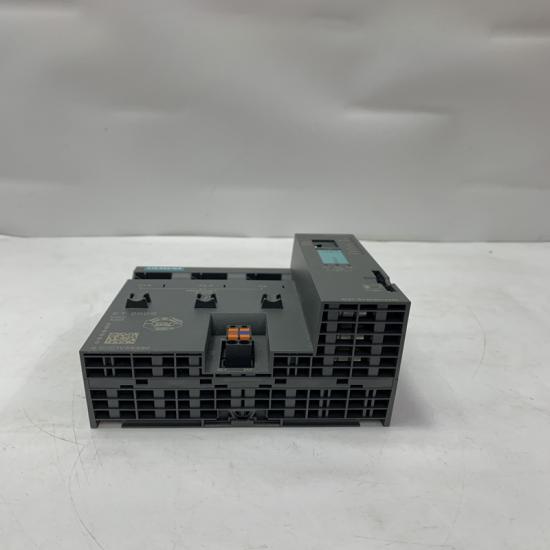

SIEMENS 5WG1146-1AB03 KNX Interface Module

Item NO.:
5WG1146-1AB03
Market Price:
$500
Product Origin:
Germany
Color:
NEW
Product weight:
0.01KG
Lead Time:
In stock

- - - - SIEMENS 5WG1146-1AB03 KNX Interface Module

        Product Overview

        Brand: SIEMENS
        Model: 5WG1146-1AB03
        Product Type: KNX IP Router Secure / KNX Interface Module
        Series: GAMMA instabus KNX
        Product Name: N 146/03 IP Router Secure
        Application: KNX Building Automation Network Communication

        Note: The model 5WG1146-1AB03 is not a simple KNX interface module. It is a KNX IP Router Secure used to connect KNX bus lines or KNX areas through Ethernet networks. It provides KNXnet/IP routing and tunneling functions for ETS commissioning, visualization systems, and building management integration.

        Technical Specifications

        General Data

        Brand: SIEMENS

        Model: 5WG1146-1AB03

        Product Name: N 146/03 IP Router Secure

        Series: GAMMA instabus

        Type: KNX IP Router

        Communication: KNX TP / Ethernet IP

        Mounting: DIN rail mounting

        Protection Class: IP20

        Application: Building automation communication gateway

        Communication Interfaces

        KNX TP Interface

        Functions:

        KNX bus communication

        KNX telegram routing

        KNX line/area coupling

        ETS commissioning access

        Ethernet Interface

        Ethernet 10BaseT / 100BaseT

        RJ45 connection

        TCP/IP communication

        Supported protocols:

        ARP

        ICMP

        IGMP

        TCP/IP

        UDP/IP

        DHCP

        AutoIP

        Supports:

        KNXnet/IP Routing

        KNXnet/IP Tunneling

        Device Management

        KNX IP Secure communication

        KNX IP Router Functions

        Line / Area Coupling

        Allows connection between:

        Different KNX lines

        KNX areas

        KNX installations through Ethernet networks

        ETS Programming Interface

        Supports:

        ETS commissioning

        Parameter configuration

        Diagnostics

        Remote KNX access

        Secure Communication

        Supports:

        KNX IP Secure

        Encrypted KNX telegram transmission

        Protection against unauthorized access

        Power Supply Specifications

        KNX Bus Supply

        Bus Voltage: DC 21…30 V

        Typical Voltage: DC 24 V

        KNX Current Consumption: Approx. 4 mA

        Auxiliary Power Supply

        Options:

        Power over Ethernet (PoE)

        DC 48 V according to IEEE 802.3af

        Maximum power: approx. 1.7 W

        or

        External AC/DC 24 V supply

        AC 16…24 V

        DC 16…30 V

        Approx. 57 mA at DC 24 V

        LED Indicators

        Front panel LEDs provide status indication:

        Device operation status

        KNX communication activity

        IP communication status

        Network status

        Used for:

        Commissioning

        Troubleshooting

        Maintenance

        Mechanical Specifications

        Mounting: DIN rail TH35 according to DIN EN 60715

        Dimensions: Approx. 36 × 90 × 60 mm

        Width: 2 modular units (2 MW)

        Weight: Approx. 100–129 g

        Housing: Plastic, RAL 7035 light gray

        Features & Advantages

        Ethernet Integration

        Connects traditional KNX bus systems with modern IP networks.

        Secure KNX Communication

        Supports encrypted KNX/IP communication for improved system security.

        Remote Commissioning

        Allows engineers to configure and diagnose KNX systems through Ethernet.

        Flexible Network Architecture

        Can operate as:

        KNX line coupler

        Area coupler

        System coupler

        Compact Installation

        DIN rail design saves cabinet space.

        Typical Applications

        Smart buildings

        Commercial building automation

        Office automation systems

        Hotels

        Hospitals

        KNX lighting control systems

        HVAC integration

        Building management systems (BMS)

        Compatible Equipment

        Commonly used with:

        Siemens GAMMA instabus KNX devices

        KNX sensors

        KNX actuators

        KNX room controllers

        ETS engineering software

        Building management platforms

        Installation Precautions

        Confirm Ethernet network settings before commissioning.

        Ensure KNX bus polarity is correct.

        Use compatible KNX power supply.

        Configure IP parameters through ETS software.

        Verify KNX Secure settings when used in secure networks.

        Do not connect Ethernet and KNX wiring incorrectly.

        Install in a dry electrical cabinet environment.
