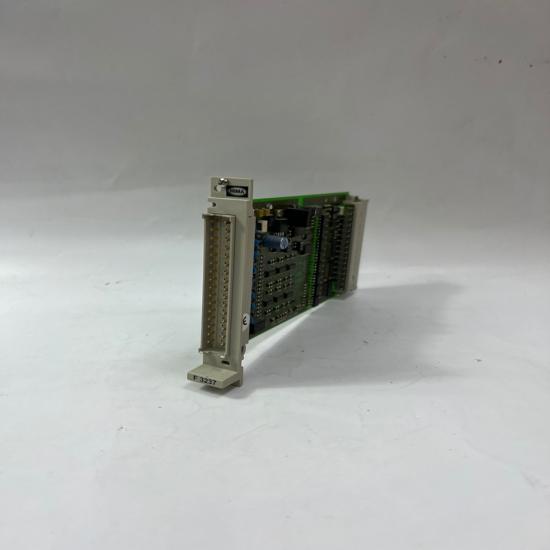

HIMA F3237 Safety Controller Module

HIMA F3237 Safety Input Module (correct identification: NOT a controller CPU)





The HIMA F3237 is a safety-related digital input module (I/O card) used in HIMA Safety Instrumented Systems (SIS). It is part of the HIMatrix / HIQuad X safety PLC system and is used to read field safety signals in critical industrial applications.

It is NOT a “safety controller module / CPU”. It is an input module inside a safety PLC system.

Product Information

• Brand: HIMA (Germany)
• Series: HIMatrix / HIQuad X SIS system
• Model: F3237
• Type: 8-channel safety digital input module
• Function: Reads safety field signals (ON/OFF inputs)
• Input type: 24 VDC / contact / NAMUR sensor signals (system dependent)
• Channels: 8 inputs
• Safety level: SIL 3 capable (system dependent)
• Diagnostics: Line monitoring, short-circuit and wire-break detection
• Mounting: Rack-based SIS system

What it actually is

This module is used to collect safety signals from field devices, such as:

• Emergency stop buttons (E-Stop)
• Safety door switches
• Limit switches
• Pressure switches
• Safety interlocks
• NAMUR proximity sensors

It does NOT execute logic or control decisions.

System Role (Simple)

Safety devices (E-stop / sensors)
→ F3237 input module (this unit)
→ Safety CPU (HIMA controller)
→ Output modules (e.g., F3330)
→ Machine shutdown / safe action

So it acts like a “safety signal collector for SIS systems.”

Key Features

• 8 independent safety input channels
• Continuous line monitoring (wire break / short circuit detection)
• Built-in self-test routines during operation
• Designed for SIL 3 safety architecture
• High reliability for continuous industrial use
• Fault detection for safe-state triggering

Typical Applications

• Emergency shutdown systems (ESD)
• Burner management systems (BMS)
• Oil & gas process safety systems
• Chemical plant safety interlocks
• Power generation turbine protection
• Industrial machine safety circuits

Advantages

• High diagnostic coverage (detects wiring faults)
• Designed for functional safety systems (SIL-rated architecture)
• Reliable operation in harsh industrial environments
• Supports redundant safety architectures
• Standard module in HIMA SIS platforms

Important Notes

• Not a PLC CPU ❌
• Not a controller ❌
• Not an output module ❌
• Not a communication module ❌
• It is a safety digital input module (I/O card) ✔
• Must operate inside a full HIMA safety system

Precautions

• Must only be used in certified SIS architecture
• Incorrect replacement may affect safety integrity (SIL compliance)
• Requires correct engineering configuration (SILworX / system tool)
• Wiring must follow safety standards and documentation
• Not usable as standalone automation module
