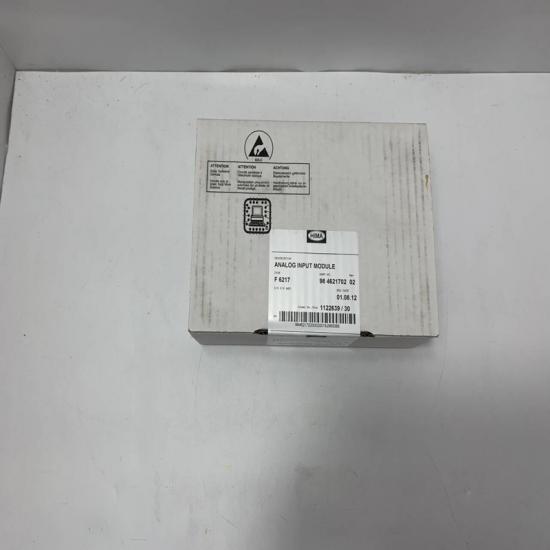

HIMA F6217 Safety Module

HIMA F6217 Safety Module (correct classification: Safety Analog Input Module, NOT CPU or controller)





The HIMA F6217 is a safety-related analog input module (8-channel AI card) used in HIMA Safety Instrumented Systems (SIS) such as HIMax / HIQuad / HIMatrix architectures.

It is NOT a safety controller CPU and NOT a logic processor.
It is an I/O module (analog input card) used to collect safety process signals.

Product Information

• Brand: HIMA (Germany)
• Series: HIMax / HIQuad SIS system
• Model: F6217
• Type: 8-channel safety analog input module
• Function: Reads analog field signals for safety monitoring
• Input signals: 0/4–20 mA, 0–5/10 V (system dependent)
• Channels: 8 isolated analog inputs
• Resolution: 12-bit typical
• Safety level: SIL 3 capable (IEC 61508 / IEC 61511 system dependent)
• Mounting: Rack-based safety PLC system

What it actually is

This module is used to measure real-world process values safely, such as:

• Pressure transmitters
• Temperature sensors
• Flow meters
• Level sensors

It sends this data to the HIMA safety CPU, which decides actions.

It does NOT execute control logic itself.

System Role (Simple)

Field sensors (pressure / temp / flow)
→ F6217 analog input module (this unit)
→ Safety CPU (HIMA controller)
→ Output modules (e.g. F3330)
→ shutdown / alarm actions

So it acts like a “safe analog signal acquisition card.”

Key Features

• 8-channel analog input (process signal acquisition)
• High isolation between channels
• Built-in diagnostics (wire break, over/under range detection)
• Designed for SIL 3 safety systems
• High reliability for continuous industrial monitoring
• Accurate measurement for safety-critical processes

Typical Applications

• Oil & gas ESD systems
• Chemical plant process safety
• Power plant monitoring
• Burner management systems (BMS)
• Turbine and compressor protection systems
• Industrial safety instrumentation systems

Advantages

• High-accuracy analog signal acquisition
• Strong diagnostic coverage (detects sensor faults early)
• Designed for functional safety (SIL-rated architecture)
• Stable operation in harsh industrial environments
• Integrates into redundant safety systems

Important Notes

• Not a PLC CPU ❌
• Not a controller ❌
• Not an output module ❌
• Not a relay ❌
• It is a safety analog input I/O module ✔
• Must be used with HIMA safety controller system

Precautions

• Must be configured in safety engineering software (SILworX / system tool)
• Incorrect replacement may affect SIL compliance
• Wiring must follow safety isolation rules
• Not usable as standalone automation module
• Requires compatible HIMA rack/system architecture
