HIMA F3236 Safety Controller Module

HIMA F3236 Safety Module (NOT a controller CPU — it is a 16-channel safety input module)

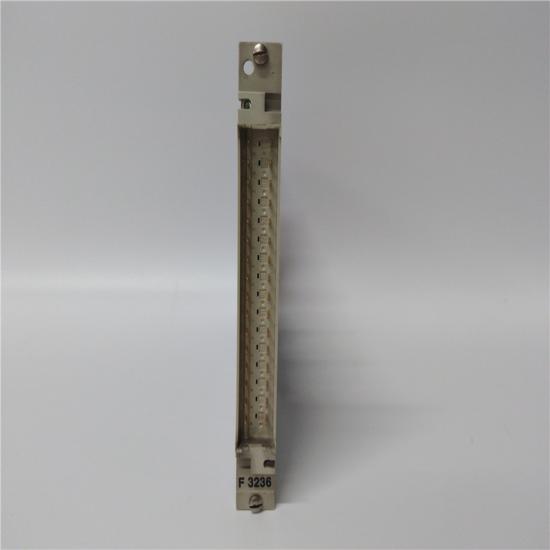

The HIMA F3236 is a safety-related digital input module (16 channels) used in HIMA Safety Instrumented Systems (SIS). It is part of the F3000 / HIMatrix safety PLC architecture, and is designed to collect critical field safety signals such as emergency stops, switches, and interlocks.

It is NOT a safety controller CPU. It is an I/O module (input card) inside a safety PLC system.

Product Information

• Brand: HIMA (Germany)
• Series: F3000 / HIMatrix SIS system
• Model: F3236
• Type: 16-channel safety digital input module
• Function: Reads safety field signals (ON/OFF inputs)
• Input type: 24 VDC / contact signals (depending configuration)
• Channels: 16 independent inputs
• Response time: ~8 ms typical
• Safety level: SIL 3 capable (system dependent)
• Mounting: Rack-based safety PLC system

What it actually is

This module is used to collect safety signals from field devices, such as:

• Emergency stop buttons (E-Stop)
• Safety door switches
• Pressure / limit switches
• Interlock contacts
• Alarm contact signals

It does NOT perform logic control itself.

System Role (Simple)

Safety devices (E-stop, sensors)
→ F3236 input module (this unit)
→ Safety CPU (HIMA controller)
→ F3330 / F3237 output modules
→ machine shutdown or safe state

So it acts like a “signal collector for safety systems.”

Key Features

• 16 independent safety input channels
• Built-in diagnostic testing (self-check functions)
• Detects wiring faults and signal issues
• Designed for SIL3 safety architecture
• Fast signal response (~8 ms)
• High isolation and fault detection capability

Typical Applications

• Emergency shutdown systems (ESD)
• Burner management systems (BMS)
• Oil & gas safety systems
• Chemical plant safety interlocks
• Power plant turbine protection
• Industrial machine safety systems

Advantages

• High reliability for critical safety signals
• Continuous self-diagnosis
• Designed for fault-safe operation
• Reduces wiring complexity in safety systems
• Industrial-grade robustness for harsh environments

Important Notes

• Not a PLC CPU ❌
• Not a controller ❌
• Not a relay module ❌
• Not an output module ❌
• It is a safety digital input module (I/O card) ✔
• Must work together with HIMA safety CPU system

Precautions

• Must only be used in certified HIMA SIS architecture
• Incorrect replacement may affect SIL safety integrity
• Wiring must follow safety design standards
• Requires proper configuration in safety engineering software
• Not usable as standalone automation module
