• • • • • • • • • • • • • • • • • • • • E. Dold BH5932.22/010 Safety Relay Module (Speed / Standstill Monitor)

                                        Product Overview

                                        The E. Dold BH5932.22/010 is a safety speed and standstill monitoring relay designed to safely monitor the speed or standstill of motors and rotating machinery. It belongs to the DOLD SAFEMASTER BH 5932 series and is widely used in industrial safety systems to ensure that hazardous motion has stopped before access is permitted.

                                      • Key Specifications

                                        • Brand: E. Dold & Söhne
                                        • Series: SAFEMASTER BH 5932
                                        • Model: BH5932.22/010
                                        • Product Type: Safety Speed / Standstill Monitoring Relay
                                        • Monitoring Function: Speed and standstill detection for rotating or linear motion
                                        • Safety Category: Up to Category 3 / Performance Level e (PL e) according to EN ISO 13849-1
                                        • Safety Integrity: Up to SIL 3 according to IEC/EN 62061 and IEC 61508
                                        • Input Channels: 2-channel monitoring
                                        • Sensor Compatibility: PNP proximity sensors (NPN versions available for certain variants)
                                        • Safety Outputs: 2 NO safety contacts + 1 NC auxiliary contact
                                        • Mounting: 35 mm DIN rail
                                        • Housing Width: 45 mm
                                        • LED Indicators: Power and status indication
                                        • Feedback Circuit: External contact monitoring (feedback loop)

                                        ---

                                        What It Does (Simple Explanation)

                                        The relay continuously monitors pulses from proximity sensors installed on a rotating shaft or moving mechanism.

                                        Working process:

                                        1. Proximity sensors detect shaft rotation.
                                        2. The relay calculates the pulse frequency.
                                        3. When the speed drops below the preset threshold—or reaches standstill—the relay energizes its safety outputs.
                                        4. The machine can then safely unlock guards or permit maintenance.

                                        This helps prevent personnel from accessing machinery while hazardous motion is still present.

                                        ---

                                        Key Features

                                        • Safe speed and standstill monitoring
                                        • Dual-channel safety architecture
                                        • Supports rotating and linear motion applications
                                        • PL e / SIL 3 capable safety performance
                                        • Positive-guided relay contacts
                                        • Compact 45 mm DIN rail housing
                                        • Integrated LED diagnostics
                                        • External feedback loop monitoring

                                        ---

                                        Advantages

                                        • Improves machine operator safety
                                        • Prevents premature access to moving equipment
                                        • Suitable for high-performance safety systems
                                        • Reliable monitoring of motors and drives
                                        • Easy integration into industrial control cabinets
                                        • Long service life with industrial-grade construction

                                        ---

                                        Applications

                                        • Conveyor systems
                                        • Machine tools
                                        • Industrial motors and drives
                                        • Packaging machinery
                                        • Printing equipment
                                        • Steel and metal processing machinery
                                        • Automated production lines
                                        • Safety guard locking systems

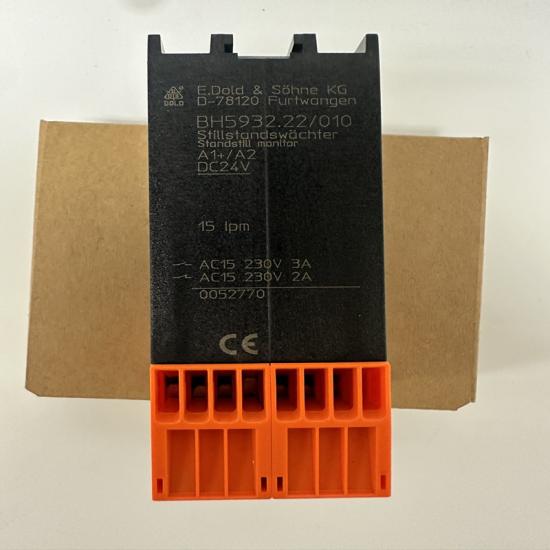

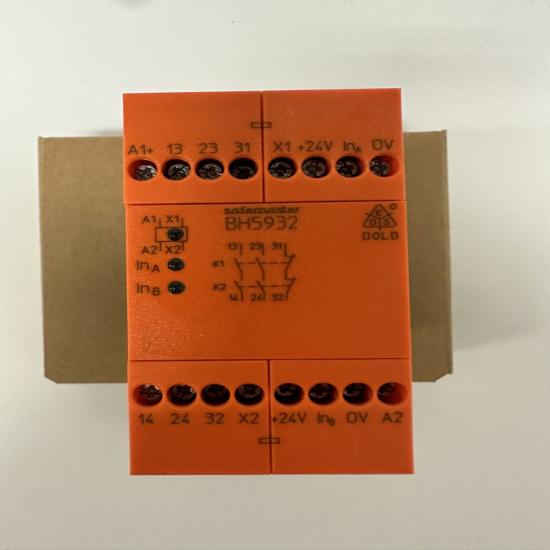

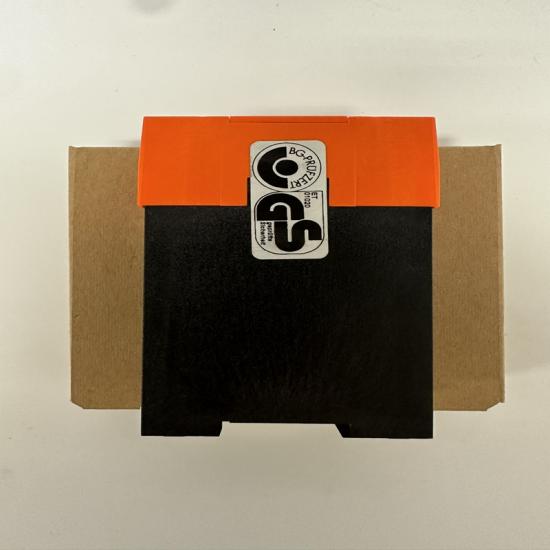

The structure and details of the product：
