• • • • • • • • • • • • • • • • • • • • • BASLER DECS-100 Digital Excitation Control System







                                          Product Overview

                                          The BASLER DECS-100 is a microprocessor-based Digital Excitation Control System designed for automatic voltage regulation and excitation control of synchronous generators. It precisely regulates generator output voltage by controlling the excitation current supplied to the exciter field, while also providing integrated generator protection and advanced control functions.

                                           changes and protecting both the generator and excitation system.

                                          ---

                                          Key Specifications

                                          • Brand: BASLER Electric
                                          • Model: DECS-100
                                          • Product Type: Digital Excitation Control System / Automatic Voltage Regulator (AVR)
                                          • Control Technology: Microprocessor-based digital controller
                                          • Generator Type: Brushless synchronous AC generators
                                          • Excitation Power Stage: PWM (Pulse Width Modulation)
                                          • Continuous Field Output: 63 VDC, 7 ADC (standard version)
                                          • Control Modes:
                                            • Automatic Voltage Regulation (AVR)
                                            • Manual Field Current Regulation (FCR)
                                            • Reactive Power (VAR) Control
                                            • Power Factor (PF) Control
                                          • Voltage Regulation Accuracy: Approximately ±0.25%
                                          • Communication: RS-232 interface supporting BESTCOMS™ configuration software
                                          • Power Source: Permanent Magnet Generator (PMG) or shunt-excited generator supply
                                          • Mounting: Behind-panel installation
                                          • Status Indication: Front-panel LED indicators
                                          • Protection Functions:
                                            • Generator overvoltage
                                            • Field overvoltage
                                            • Loss of sensing
                                            • Overexcitation limiter (OEL)
                                            • Underexcitation limiter (UEL)
                                            • Volts/Hertz (V/Hz) protection

                                          ---

                                          What It Does (Simple Explanation)

                                          The DECS-100 continuously monitors the generator output voltage.

                                          Working process:

                                          1. Generator voltage is measured.
                                          2. The controller compares actual voltage with the preset value.
                                          3. Excitation current is automatically adjusted.
                                          4. Generator voltage remains stable despite load changes.
                                          5. Built-in protection monitors abnormal operating conditions.

                                          This improves generator stability, especially when operating independently or in parallel with other generators or the utility grid.

                                          ---

                                          Key Features

                                          • High-performance digital voltage regulation
                                          • Microprocessor-based excitation control
                                          • Automatic and manual operating modes
                                          • VAR and Power Factor control
                                          • Soft-start voltage build-up
                                          • Integrated generator and exciter protection
                                          • PWM excitation output for fast dynamic response
                                          • PC configuration using BESTCOMS™ software
                                          • Rugged epoxy-potted industrial design

                                          ---

                                          Advantages

                                          • Excellent voltage regulation accuracy
                                          • Fast response to load changes
                                          • Suitable for standalone and parallel generator operation
                                          • Reduces external control components
                                          • Built-in protection improves generator reliability
                                          • Easy setup and diagnostics through software
                                          • Reliable operation in harsh industrial environments

                                          ---

                                          Applications

                                          • Diesel generator sets
                                          • Gas turbine generators
                                          • Hydroelectric generators
                                          • Industrial power plants
                                          • Cogeneration (CHP) systems
                                          • Utility parallel generation
                                          • Marine power systems
                                          • Emergency standby generators

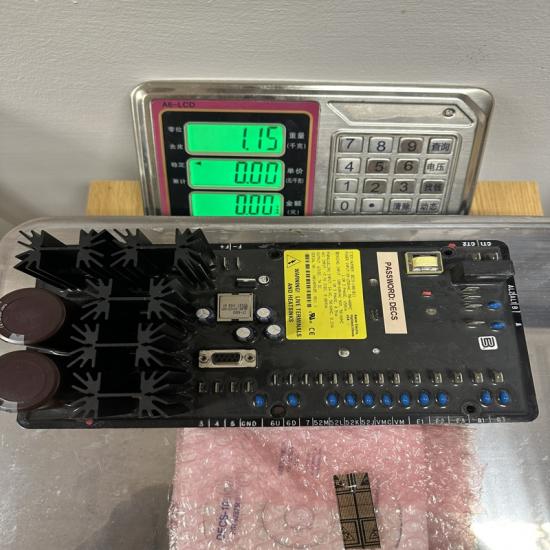

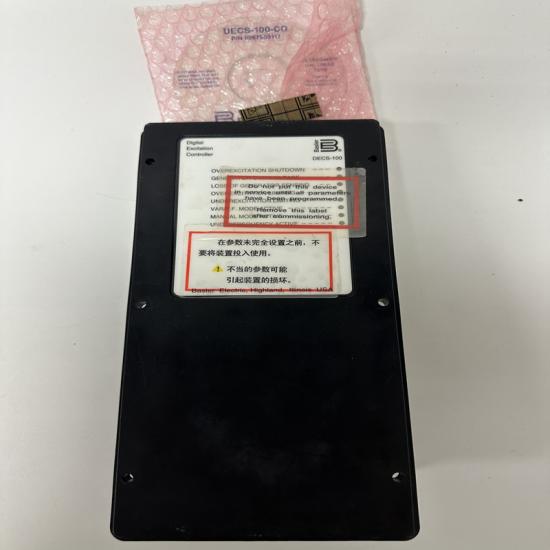

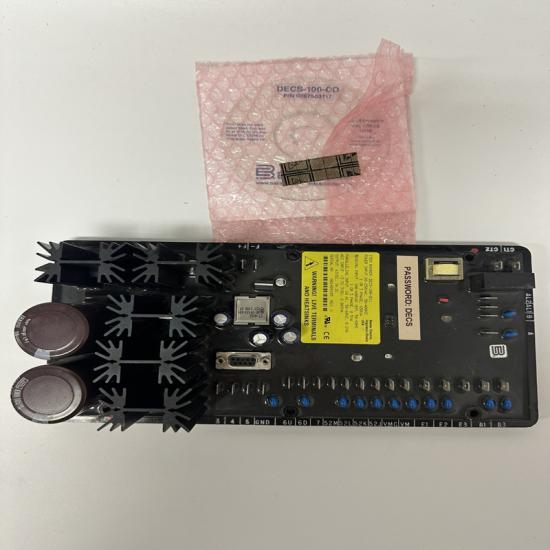

The structure and details of the product：
