Turck TNSLR-Q80WD-H1147 HF RFID Read/Write Head

• • • • • • • • • • • • • • • • • • • Turck TNSLR-Q80WD-H1147 HF RFID Read/Write Head

                                    • Product Overview

                                      The Turck TNSLR-Q80WD-H1147 is a high-frequency (HF) RFID read/write head designed for industrial identification and traceability applications. It is part of the Turck BL ident RFID system and communicates with RFID data carriers using 13.56 MHz HF technology.

                                      This model is a wash-down, long-range version, making it ideal for demanding environments such as food processing, packaging, and automated manufacturing.

                                    • Key Specifications (Verified)

                                      • Brand: Turck
                                      • Model: TNSLR-Q80WD-H1147
                                      • Type: HF RFID Read/Write Head
                                      • Technology: HF RFID (13.56 MHz)
                                      • RFID Standards: ISO 15693, NFC Type 5
                                      • Maximum Read/Write Distance: Up to 280 mm (depending on RFID tag and installation conditions)
                                      • Operating Voltage: 19.2–28.8 VDC
                                      • Current Consumption: ≤90 mA (1200 mA inrush for 1 ms)
                                      • Connection: M12 × 1 connector (used with BL ident extension cable)
                                      • Housing: PPS-GF30 engineering plastic
                                      • Dimensions: 102 × 83 × 40 mm
                                      • Protection Rating: IP68 / IP69K (wash-down design)
                                      • Operating Temperature: −25°C to +70°C
                                      • Installation: Non-flush mounting

                                      ---

                                      What It Does (Simple Explanation)

                                      The RFID read/write head performs the following functions:

                                      1. Generates a 13.56 MHz electromagnetic field
                                      2. Detects compatible RFID tags entering the reading zone
                                      3. Reads identification data from the tag
                                      4. Writes production or process information back to the tag when required
                                      5. Transfers data to the PLC through a compatible Turck BL ident interface module



                                      ---

                                      Key Features

                                      • HF RFID read/write capability
                                      • Long reading distance up to 280 mm
                                      • ISO 15693 and NFC Type 5 compatible
                                      • IP68/IP69K wash-down protection
                                      • Rugged industrial plastic housing
                                      • M12 industrial connector
                                      • Designed for Turck BL ident RFID systems

                                      ---

                                      Advantages

                                      • Reliable product and pallet identification
                                      • Supports both reading and writing RFID data
                                      • Excellent resistance to dust, water, and cleaning processes
                                      • Suitable for harsh industrial environments
                                      • Fast integration with PLC-based automation systems
                                      • Long service life with minimal maintenance

                                      ---

                                      Applications

                                      • Production line traceability
                                      • Automotive manufacturing
                                      • Food and beverage processing
                                      • Packaging machinery
                                      • Warehouse and logistics systems
                                      • Conveyor identification systems
                                      • Workpiece carrier tracking
                                      • Smart factory (Industry 4.0) applications

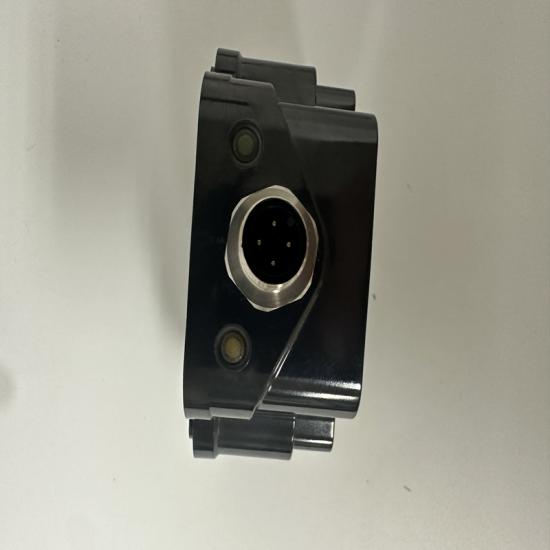

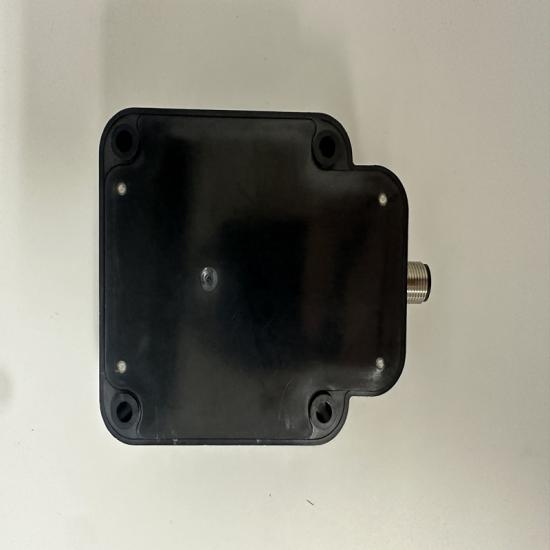

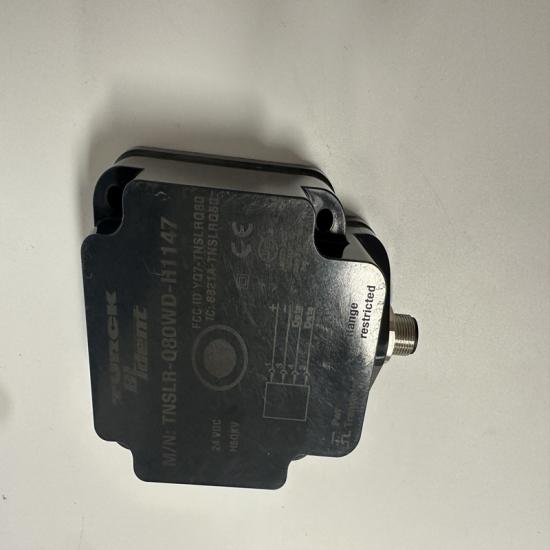

The structure and details of the product：
