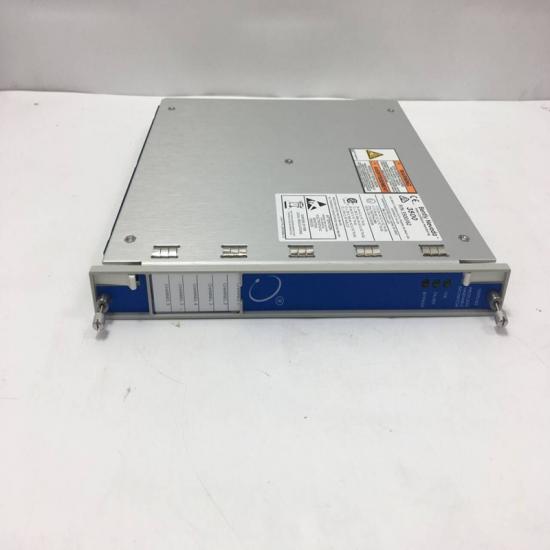

BENTLY 136483-01 Vibration Monitor I/O Module

Product Overview

Brand: Bently Nevada
Model: 136483-01
Series: 3500 Monitoring System
Product Type: Isolated I/O Module
Function: The 136483-01 is an isolated 4–20 mA I/O module used with the Bently Nevada 3500/62 Process Variable Monitor. It provides signal isolation and connection between external current-loop sensors and the machinery monitoring system.

Technical Specifications

• Module Type: Isolated I/O Module
• Compatible System: Bently Nevada 3500/62 Process Variable Monitor
• Input Signal: +4 to +20 mA DC current loop
• Number of Channels: 4 channels
• Isolation Type: Electrical isolation between field signals and monitoring system
• Application: Process variable and vibration-related monitoring input
• Installation: 3500 rack system module
• Signal Interface: External field termination connection
• Power Supply: Supplied by 3500 rack system
• Operating Environment: Industrial machinery monitoring applications
• Country of Origin: USA

Advantages & Features

Reliable Signal Isolation

Provides electrical isolation between field devices and the monitoring system, reducing interference and improving measurement stability.

4–20 mA Signal Compatibility

Supports standard industrial current-loop signals from transmitters and sensors for flexible system integration.

Enhanced Equipment Protection

Works with Bently Nevada monitoring systems to help detect abnormal machine conditions and prevent equipment damage.

High System Reliability

Designed for continuous operation in critical machinery monitoring applications.

Easy Integration

Compatible with the Bently Nevada 3500/62 monitoring module, simplifying replacement and system expansion.

Typical Applications

• Turbine vibration monitoring systems
• Compressor condition monitoring
• Pump monitoring systems
• Generator protection systems
• Rotating machinery diagnostics
• Oil & gas facilities
• Petrochemical plants
• Power generation equipment

Precautions

• Confirm compatibility with the Bently Nevada 3500/62 system before installation.
• Verify that input signals are within the 4–20 mA range.
• Check wiring polarity and terminal connections carefully.
• Ensure proper grounding to reduce electrical noise.
• Disconnect rack power before installing or removing the module.
• Perform system diagnostics after replacement.
• Avoid installation in environments with excessive moisture, dust, or vibration.
