BENTLY NEVADA 125680-01 3500/40M Proximitor I/O Module

Product Overview

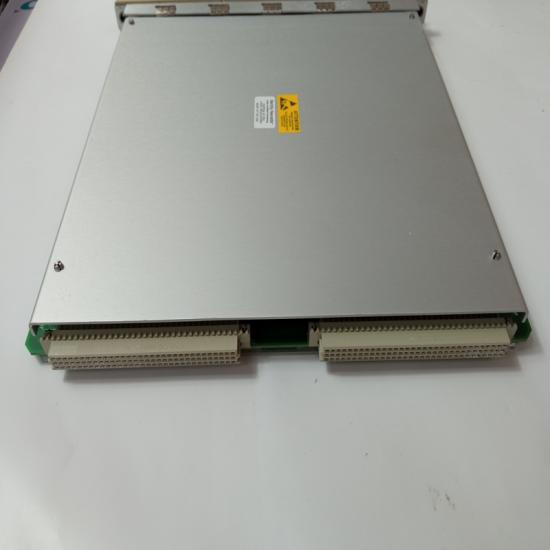

The Bently Nevada 125680-01 is a Proximitor I/O Module with internal terminations, designed for the 3500/40M Proximitor Monitor in the 3500 Machinery Protection System. It provides connection points for compatible proximity transducers and routes their signals to the monitoring system for machinery vibration and shaft-position monitoring.

Key Technical Specifications

• Brand: Bently Nevada

• Model: 125680-01

• Product Series: 3500 Machinery Protection System

• Compatible Monitor: 3500/40M Proximitor Monitor

• Product Type: Proximitor I/O Module

• Termination Type: Internal Terminations

• Input Channels: Up to 4 proximity transducer channels

• Transducer Compatibility: Compatible Bently Nevada proximity transducers

• Installation Location: Rear I/O slot of a compatible 3500 rack

• Operating Temperature: -30°C to +65°C for the standard non-barrier configuration

• Dimensions (H × W × D): 241.3 × 24.4 × 99.1 mm

• Weight: Approximately 0.20 kg

• System Configuration: Requires a compatible 3500/40M monitor module

Key Features

• Supports up to four proximity transducer input channels.

• Provides internal termination points for field wiring.

• Connects transducer signals to the 3500/40M monitoring system.

• Supports machinery vibration and shaft-position monitoring applications.

• Compact rear-mounted design for installation in a compatible 3500 rack.

• Designed for maintenance and replacement of existing Bently Nevada machinery monitoring systems.

Applications

• Steam and gas turbine monitoring

• Industrial compressor protection

• Pump and motor vibration monitoring

• Shaft displacement and position monitoring

• Rotating machinery condition monitoring

• Industrial machinery protection systems

Important Notes

• The correct product designation is Proximitor I/O Module with Internal Terminations, not a generic interface module.

• This is a rear I/O module, not the main 3500/40M monitor card.

• Field wiring connects directly to the module's internal terminals.

• External termination blocks are not compatible with the internal-termination configuration.

• Confirm compatibility with the installed 3500/40M monitor and existing transducer configuration before ordering.

• Verify the exact part number, revision, and physical condition before installation.
