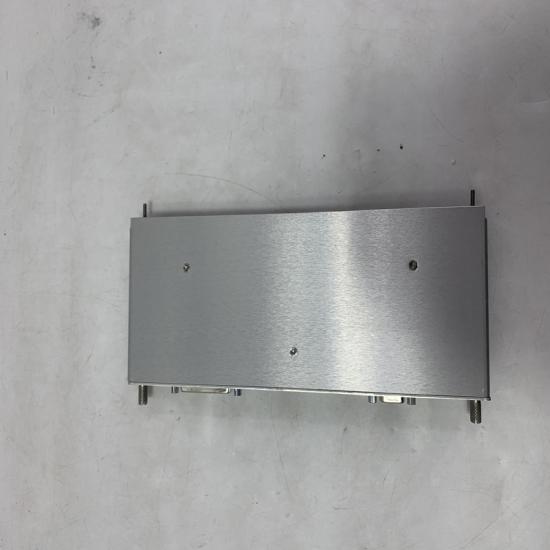

BENTLY NEVADA 176449-01 3500/40M Proximitor Monitor Module

Product Overview

The Bently Nevada 176449-01 is a 3500/40M Proximitor Monitor module designed for machinery protection and condition monitoring. It accepts signals from compatible Bently Nevada proximity transducers, processes them into vibration and shaft-position measurements, and compares the results against user-configurable alarm setpoints.

Key Technical Specifications

• Brand: Bently Nevada

• Model: 176449-01

• Product Series: 3500 Machinery Protection System

• Monitor Type: 3500/40M Proximitor Monitor

• Product Type: 4-Channel Machinery Monitoring Module

• Number of Channels: 4

• Supported Inputs: Compatible proximity transducer signals

• Input Impedance: 10 kΩ for standard I/O

• TMR I/O Impedance: 50 kΩ effective for three bussed channels connected in parallel

• Typical Power Consumption: 7.7 W

• Transducer Power Supply: -24 V DC

• Buffered Transducer Outputs: One short-circuit-protected coaxial output per channel

• Output Impedance: 550 Ω

• Radial Vibration Sensitivity: 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil)

• Supported Measurement Functions: Radial vibration, thrust position, differential expansion, eccentricity, and REBAM

• Radial Vibration Frequency Response: Programmable, 4 Hz–4,000 Hz or 1 Hz–600 Hz

• Configuration Software: Bently Nevada 3500 Rack Configuration Software

• Installation: Compatible Bently Nevada 3500 rack with appropriate I/O hardware

Key Features

• Four-channel monitoring for machinery vibration and shaft-position measurements.

• Processes proximity transducer signals for condition monitoring.

• Supports multiple measurement functions through software configuration.

• Provides programmable alert and danger alarm setpoints.

• Features front-panel status indicators for operating condition, communication, and bypass status.

• Provides buffered sensor outputs for diagnostic testing and monitoring.

• Designed for integration with the Bently Nevada 3500 machinery protection platform.

Applications

• Steam and gas turbine monitoring

• Industrial compressor protection

• Pumps and rotating machinery

• Shaft vibration and thrust-position monitoring

• Differential expansion and eccentricity measurement

• Industrial machinery protection and predictive maintenance

Important Notes

• The correct product designation is 3500/40M Proximitor Monitor, not a generic interface module.

• This is a monitoring card, not a standalone proximity probe or a complete machinery monitoring rack.

• Compatible proximity transducers and the appropriate I/O module are required.

• Channel functions and alarm settings must be configured for the intended application.

• Verify rack compatibility, I/O termination type, part number, and product condition before ordering.
